Mounting
7.2.3 Mounting with side bracket
The side bracket is made of die cast zinc ZP 0400. It is enamelled in black. The side
bracket will be covered by the device after mounting. It provides adjustment so that the
v
ertical alignment of sender and receiver can be corrected by ± 2.5° after mounting.
 Attach the bolts of the side bracket with a torque of between 5 and 6 Nm. Higher
torques can damage the bracket; lower torques provide inadequate protection against
vibration.

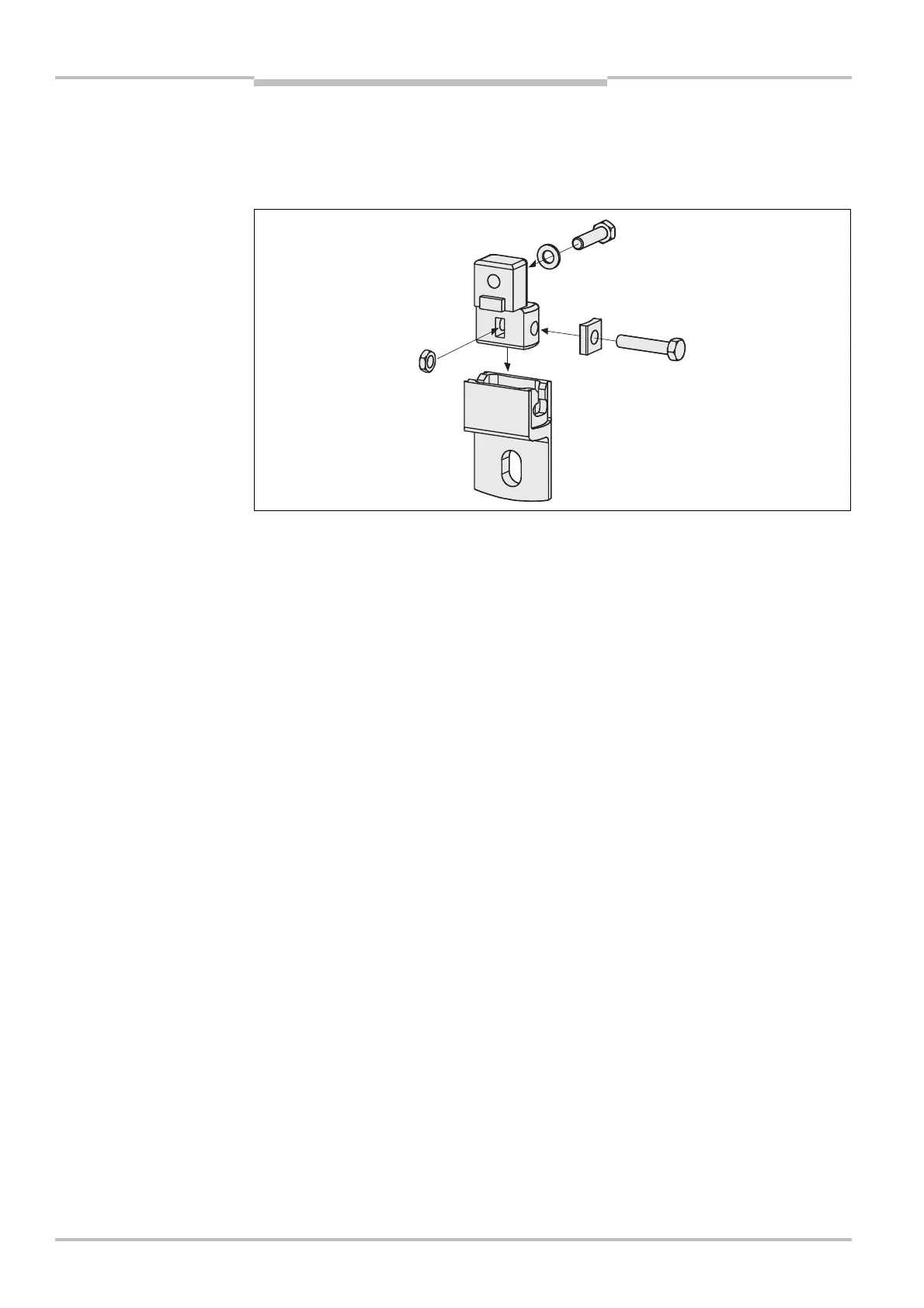

Fig. 45: Composition of the
side bracket
Notes
Part No. 2019506

SICK M4000 Advanced Specifications

General

Type	Multiple light beam safety device
Enclosure rating	IP65
Supply voltage	24 V DC
Safety integrity level	SIL3
Performance level	PL e
Protection Rating	IP65
Operating Voltage	24 V DC
Number of beams	2 to 4 beams
Resolution	70 mm
Ambient operating temperature	-25 °C ... +55 °C
Angular Resolution	Not applicable
Operating Temperature	-25 °C ... +55 °C
