Mounting
7.2.4 Mounting with rigid mounting bracket
The rigid mounting bracket is a black, powder-coated bracket without adjustment. It is only
suitable for mounting surfaces on which it is not necessary to compensate for large
m
echanical tolerances. The alignment of the sender and receiver can be corrected after
mounting using only the slots.

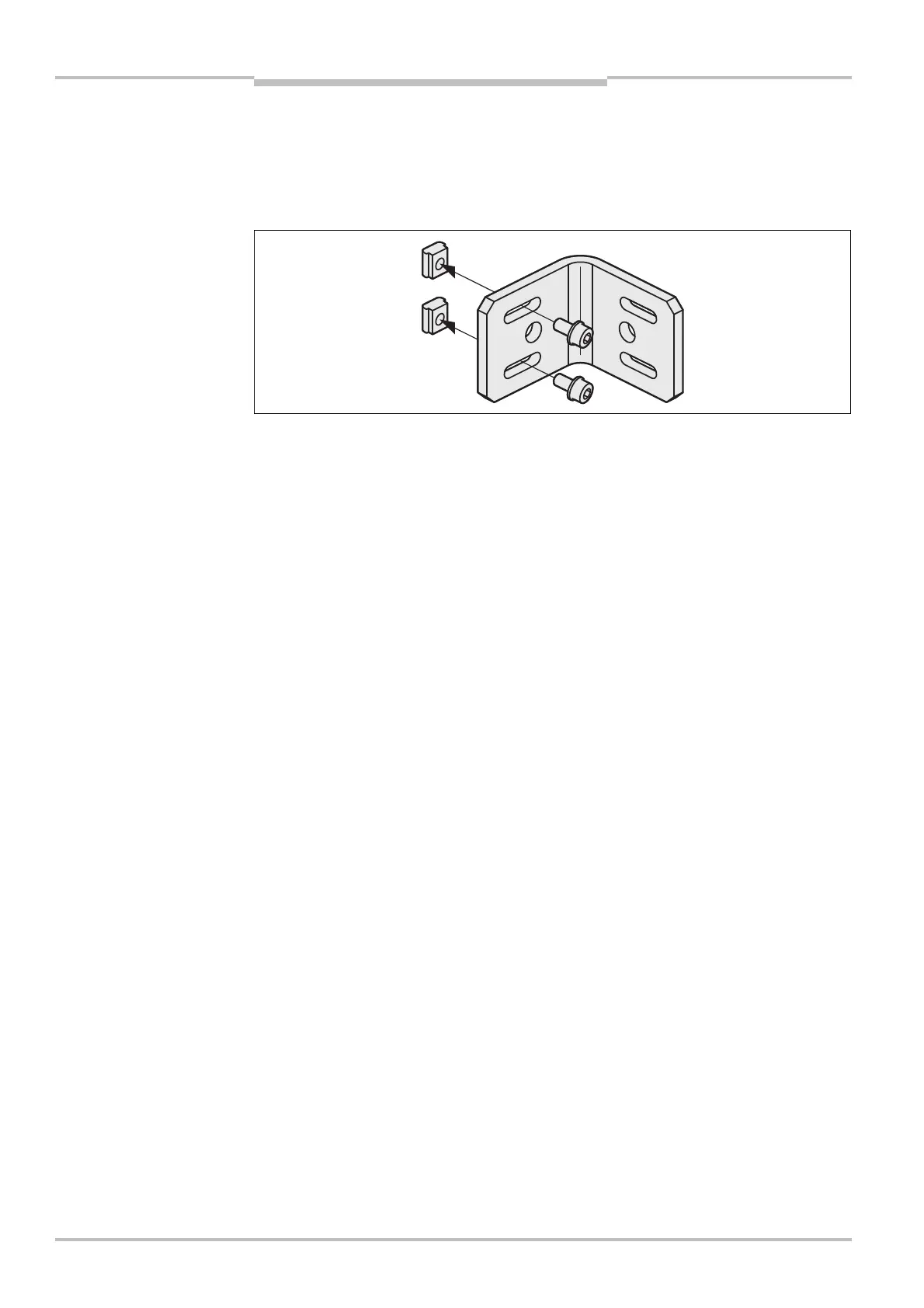

Fig. 47: Rigid mounting
bracket
