Technical specifications
13.3.7 Rigid mounting bracket
13.3.8 Pivoting mounting bracket

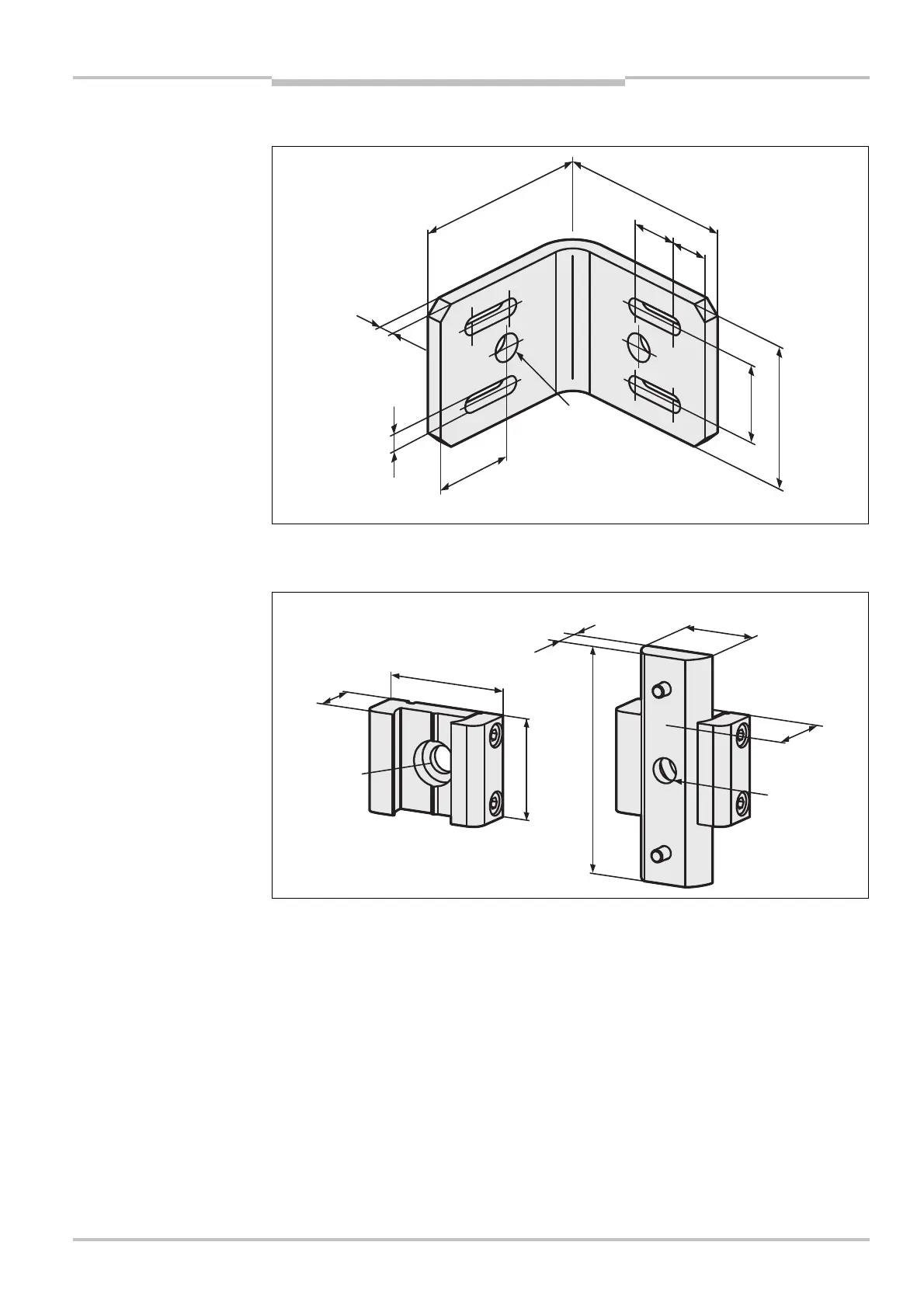

Fig. 75: Dimensional drawing
rigid mounting bracket (mm)
Fig. 76: Dimensional drawing
pivoting mounting bracket
(mm)
55
±1
55
±1
44
±1
14
12
24
25
5.3
5

8.3
Part No.
7021352
40
40
20
30
80
22.5
11.5

11

10
Part No.
2017751

SICK M4000 Advanced Specifications

General

Type	Multiple light beam safety device
Enclosure rating	IP65
Supply voltage	24 V DC
Safety integrity level	SIL3
Performance level	PL e
Protection Rating	IP65
Operating Voltage	24 V DC
Number of beams	2 to 4 beams
Resolution	70 mm
Ambient operating temperature	-25 °C ... +55 °C
Angular Resolution	Not applicable
Operating Temperature	-25 °C ... +55 °C
