Operating Instructions Chapter 7
M4000 Adv., Adv. A/P, Area
8010797/YT72/2016-02-19 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 71
Subject to change without notice
Mounting
7.2.1 Mounting with Omega bracket
The Omega bracket is made of aluminium. The bracket is designed such that sender and
receiver can also be exactly aligned after the installation and mounting of the bracket.
Attach the screws of the Omega bracket with a torque of between 2 and 2.5 Nm. Higher
torques can damage the bracket; lower torques provide inadequate protection against
vibration.
Engage the Omega fixing bracket in its profile rails. Additional spacers are used to
correctly adjust the bracket in the slot. The safety light curtain can be mounted and also
subsequently adjusted using just one screw.

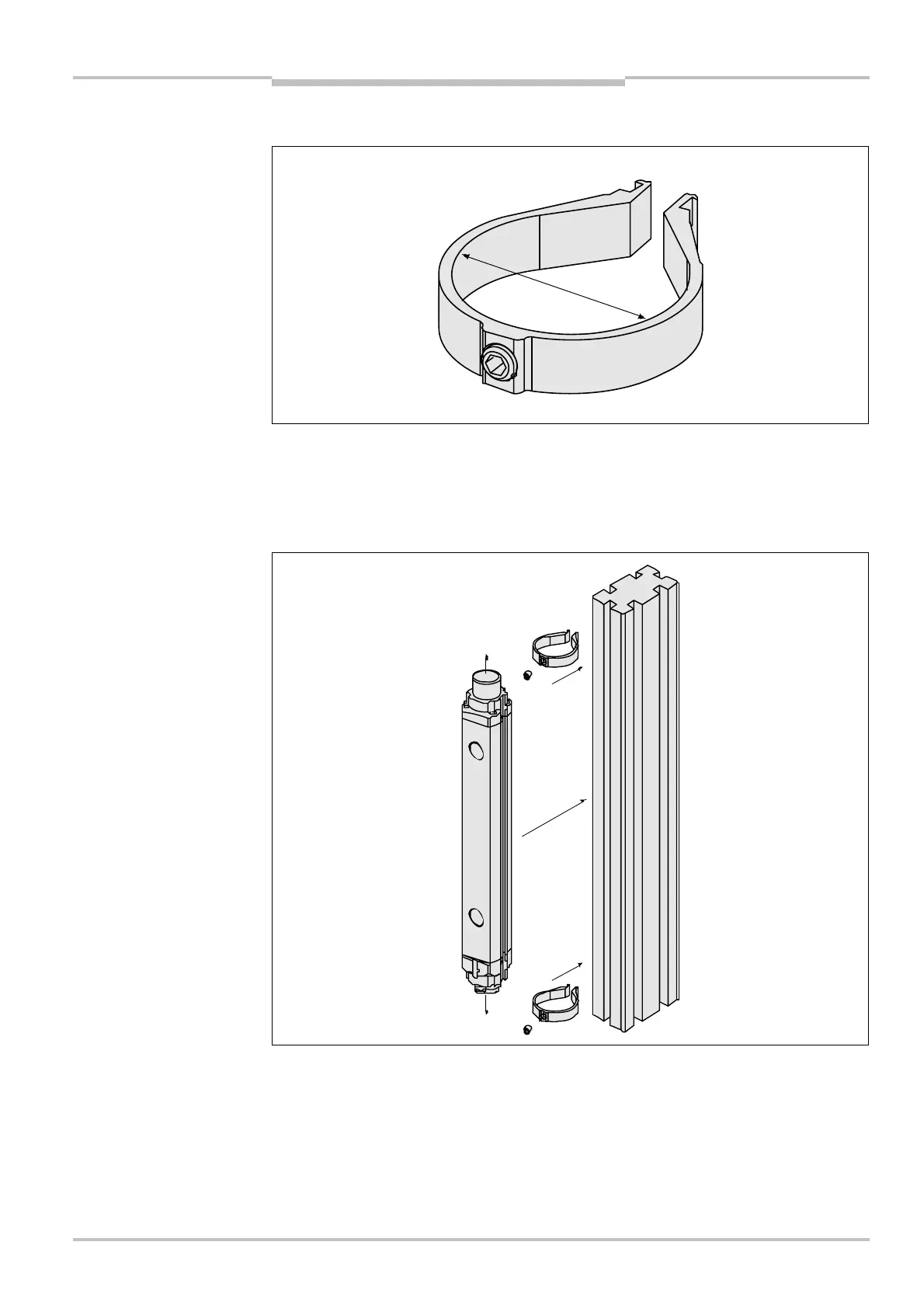

Fig. 41: Omega bracket (mm)
Note
Fig. 42: Mounting with
Omega bracket
Note
