Technical specifications
13.3.9 Deflector mirror PNS75G008
Mirror height
S [mm]
Dimension
L1 [mm]
Dimension
L2 [mm]
Dimension
L3 [mm]
Dimension
A [mm]
80 112 136 200 180
 When using deflector mirrors, the effective scanning range is reduced (see Tab. 14 on
page 43).
 The formation of droplets of heavy contamination can be detrimental to the reflection
behaviour. Take the necessary organisational measures to avoid the formation of
droplets on the deflector mirrors.
 The mounting kit is included in the delivery of the deflector mirror PNS75E008.

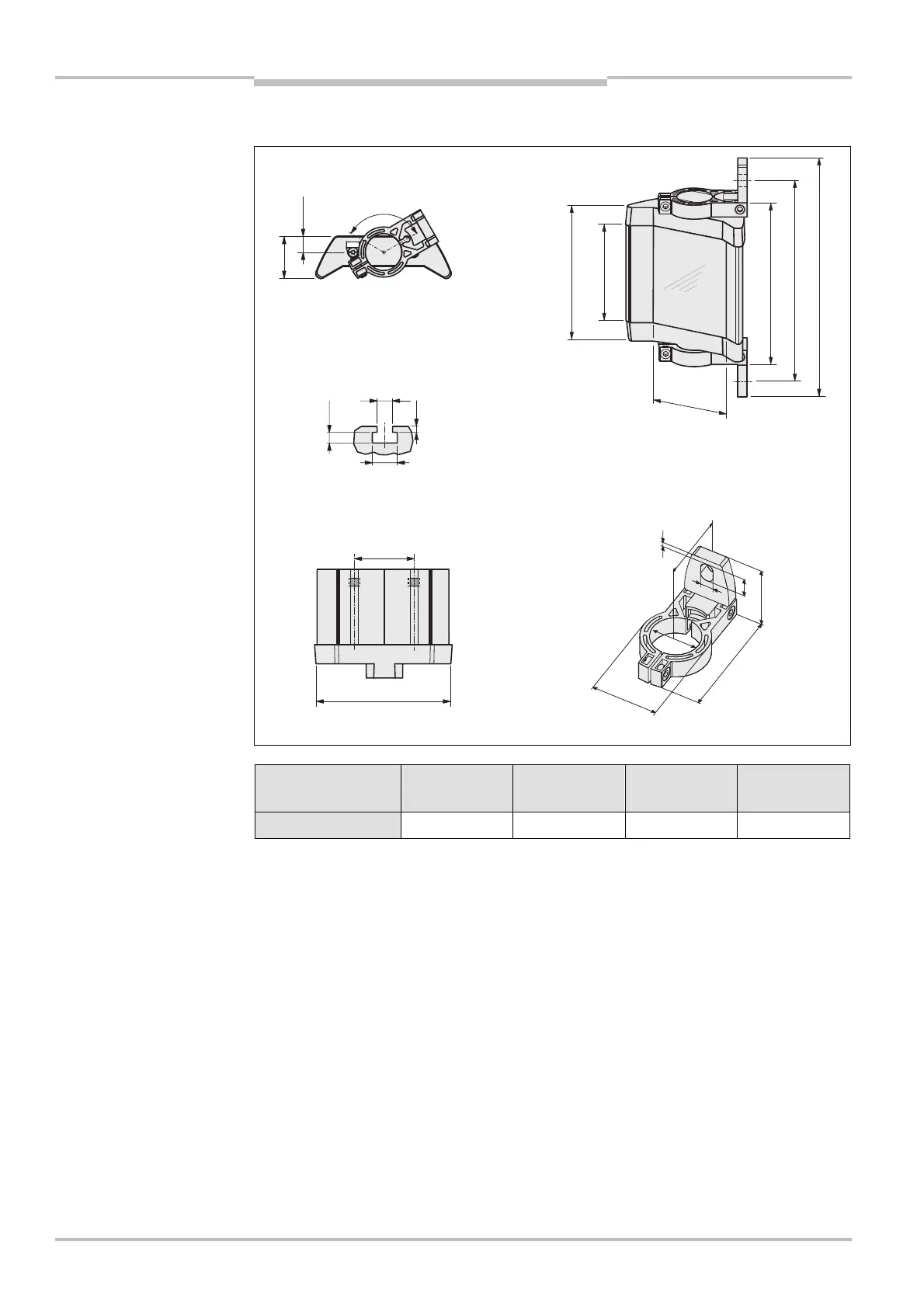

Fig. 77: Dimensional drawing
deflector mirror PNS754008
(mm)
Tab.
49
:
Dimensions of the
deflector mirror PNS754008
Note
Part No. 1026647
35
13.3
160°
L1
S
L2
A
L3
73
Mounting with
swivel mount bracket
Sliding nut groove for side mounting
6.5
10.5
4.5
2.5
50
114
44.4
3.
8
44
13
8
30.6
75
42

SICK M4000 Advanced Specifications

General

Type	Multiple light beam safety device
Enclosure rating	IP65
Supply voltage	24 V DC
Safety integrity level	SIL3
Performance level	PL e
Protection Rating	IP65
Operating Voltage	24 V DC
Number of beams	2 to 4 beams
Resolution	70 mm
Ambient operating temperature	-25 °C ... +55 °C
Angular Resolution	Not applicable
Operating Temperature	-25 °C ... +55 °C
