Muting
4.2.6 Muting with four sensors (two sensor pairs), parallel placement
In the example, the material moves from left to right. As soon as the first muting sensor
pair A1 & A2 is activated, the protection provided by the protective device (ESPE) is muted.
The protection remains muted until the muting sensor pair B1 & B2 is clear again.
The following requirements must be met:
Condition Description
A1 & A2
(or B1 & B2)
Brief, to the start of the muting. The first sensor pair is acti-
vated as a function of the direction of transport of the material.
A1 & A2 & B1 & B2 Brief, for accepting the muting condition.
B1 & B2
(or A1 & A2)
Muting applies as long as this condition is met. The second
sensor pair is activated as a function of the direction of trans-
port of the material.

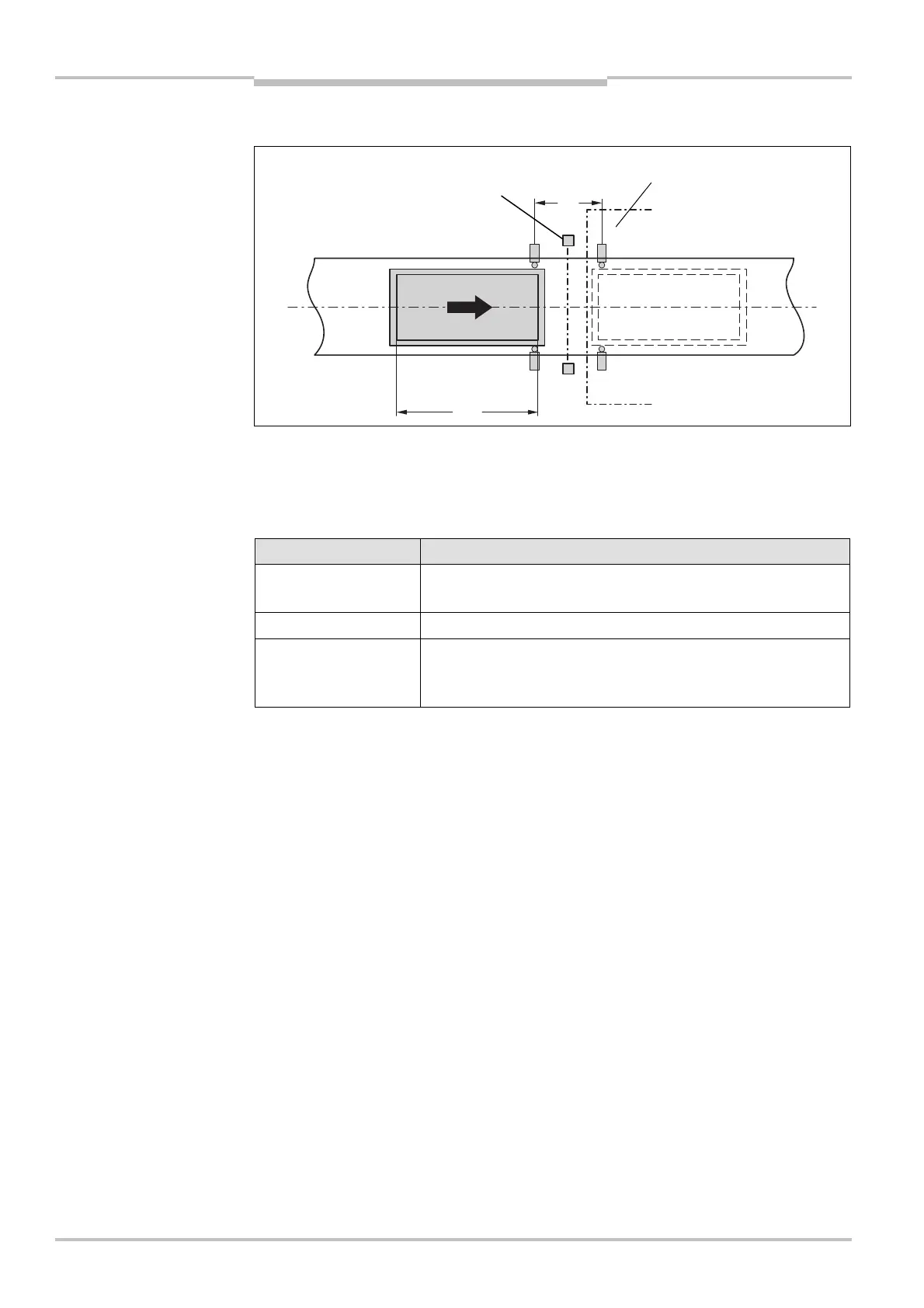

Fig. 23: Muting with two
parallel sensor pairs
Tab.
11
:
Conditions for
muting with four sensors,
parallel placement
A1
ESP
E
L
1
L
3
A2
Hazardous area
B1
B2

SICK M4000 Advanced Specifications

General

Type	Multiple light beam safety device
Enclosure rating	IP65
Supply voltage	24 V DC
Safety integrity level	SIL3
Performance level	PL e
Protection Rating	IP65
Operating Voltage	24 V DC
Number of beams	2 to 4 beams
Resolution	70 mm
Ambient operating temperature	-25 °C ... +55 °C
Angular Resolution	Not applicable
Operating Temperature	-25 °C ... +55 °C
