3.2 Operating principle of the device
3.2.1 The principle of the multiple light beam safety device
The M4000 multiple light beam safety device secures the access to a hazardous area and
signals the entry of objects as soon as a light beam is interrupted. The machine or plant
controller that evaluates this message must then bring the dangerous movement to a halt.
You can secure two sides of a hazardous area by using a deflector mirror, with two deflec-
t
or mirrors you can secure three sides (see chapter 3.3.2 “Access protection on several
sides with the aid of deflector mirrors” on page 17ff).
3.2.2 Device components

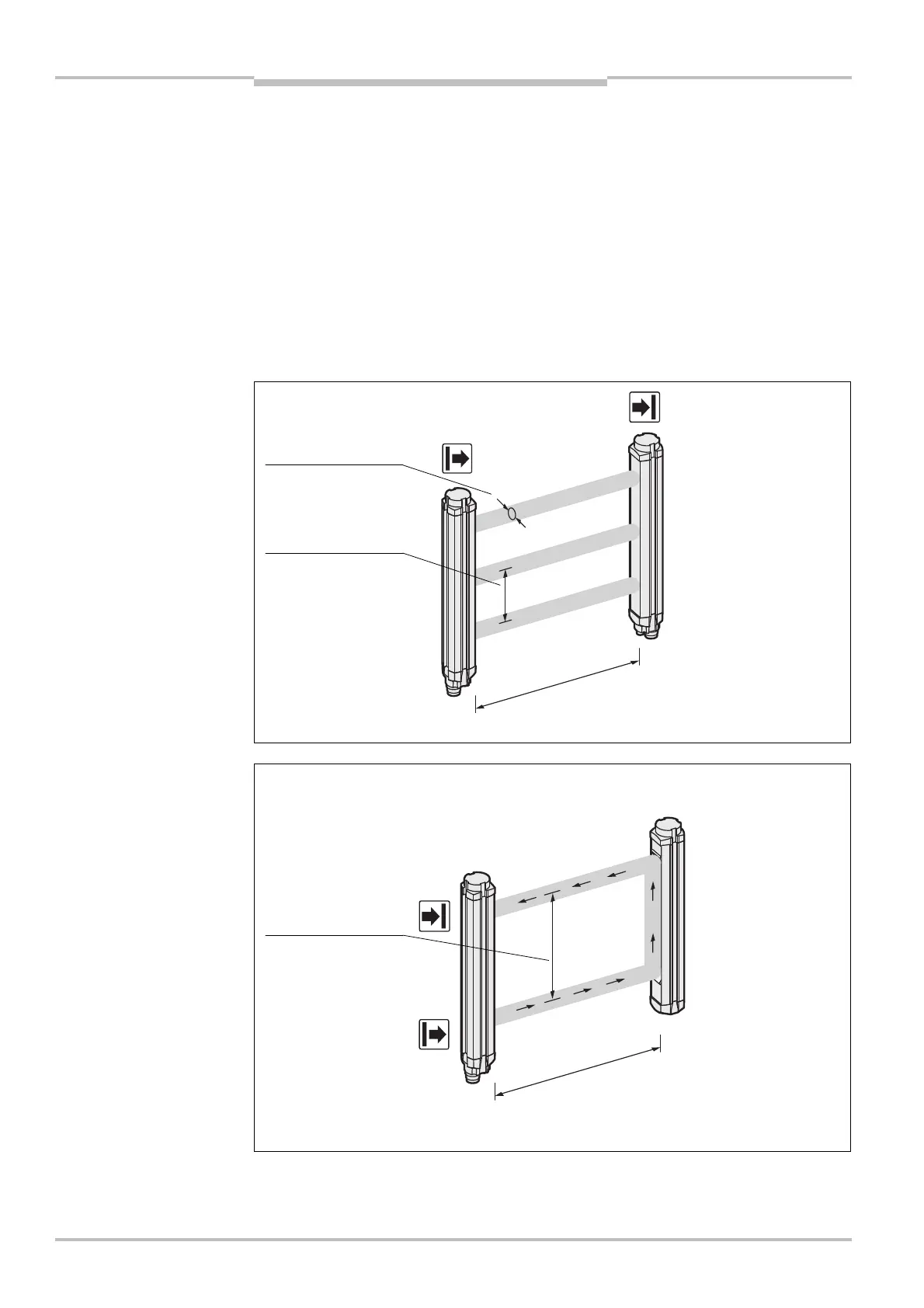

Fig. 1: Device components of
the M4000 Advanced
Fig. 2: Device components of
the M4000 Advanced A/P
(23 mm)
Dimension of the light path between
sender and receiver
Dimension of the light path between
M4000 Advanced A/P and M4000 Passive
(deflector unit)
