Technical specifications
13.3.3 M4000 Area 60/80

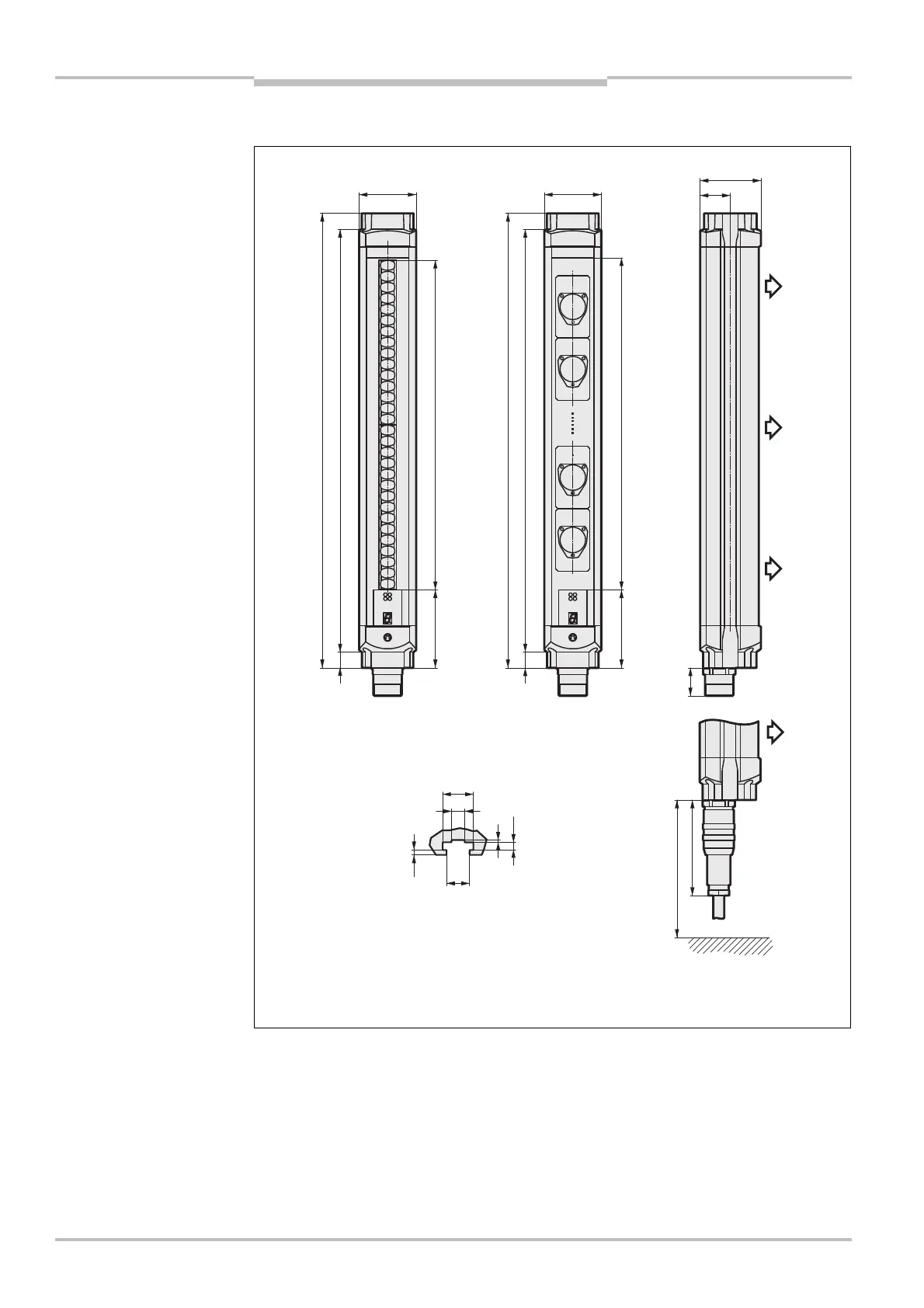

Fig. 71: Dimensional drawing
M4000 Area 60/80 receiver,
sender mirror image (mm)
71.2
S
L1
L2
14.4
55.5
27.5
25.5
Sliding nut groove for
side mounting
14
6
10.5
2.2
3.5
1
Cable socket M26 with crimp contacts
(for DIN 43  651)
Ca. 125
(connector range)
87
52
52
71.2
S
L1
L2
14.4
M4000
Area
60
M4000
Area
80

SICK M4000 Advanced Specifications

General

Type	Multiple light beam safety device
Enclosure rating	IP65
Supply voltage	24 V DC
Safety integrity level	SIL3
Performance level	PL e
Protection Rating	IP65
Operating Voltage	24 V DC
Number of beams	2 to 4 beams
Resolution	70 mm
Ambient operating temperature	-25 °C ... +55 °C
Angular Resolution	Not applicable
Operating Temperature	-25 °C ... +55 °C
