Mounting
7.2.5 Mounting with pivoting mounting bracket
The pivoting mounting bracket is made of black anodised aluminium. It will be covered by
the device after mounting. The pivoting mounting bracket provides adjustment for correc-
t
ing the horizontal alignment of sender and receiver by ±2.0° after mounting.
Tighten the bolts on the pivoting mounting bracket to a torque of between 5 and 6 Nm.
Higher torques can damage the bracket; lower torques provide inadequate protection
against vibration.

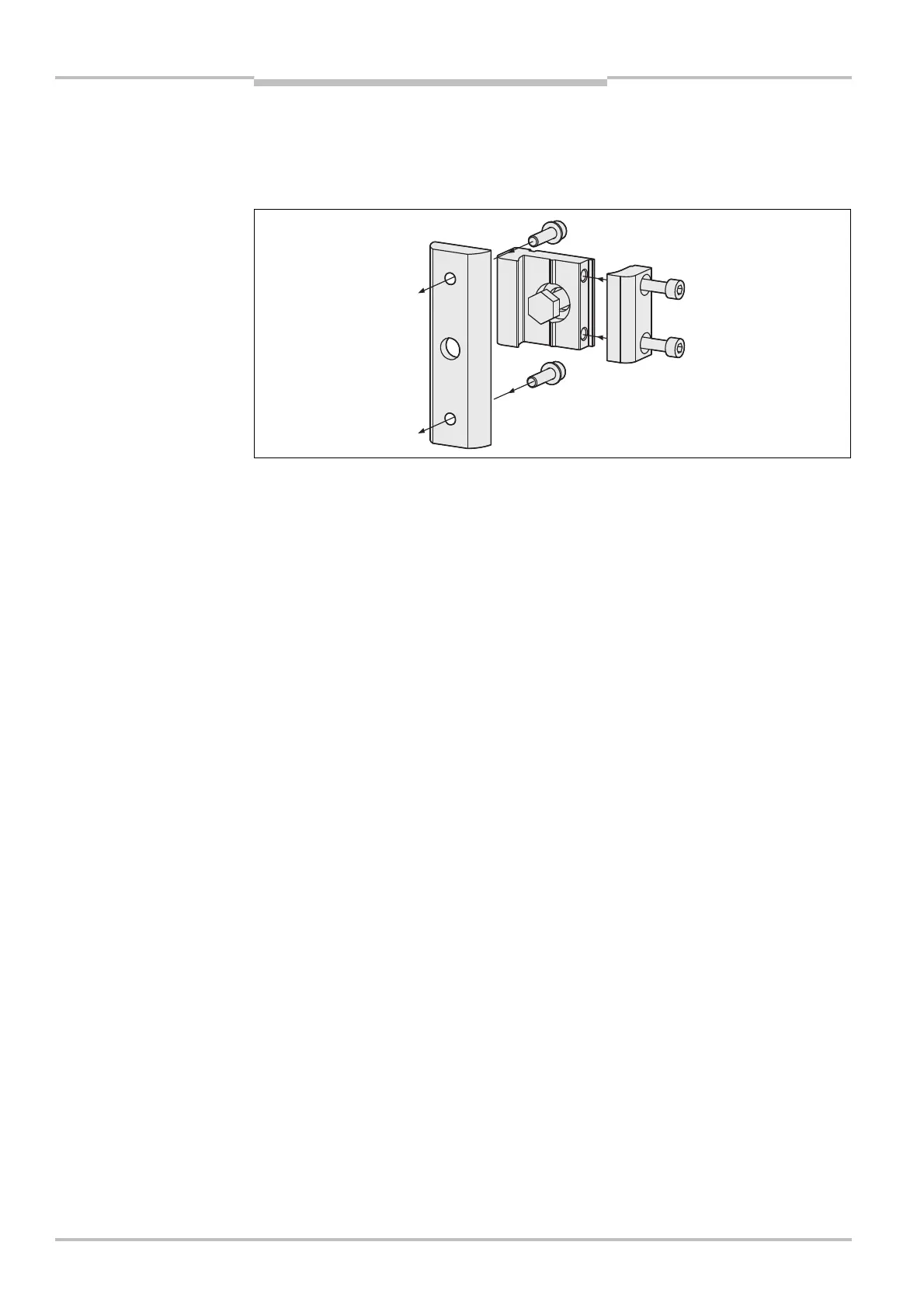

Fig. 49: Assembly of the
pivoting mounting bracket
