Electrical installation
8.2 Extension connection M12× 4 + FE for UE403
Pin M4000 Advanced (receiver) or
M4000 Advanced A/P
1 24 V DC output (voltage supply UE403)
2 Device communication (EFI
A
)
3 0 V DC (voltage supply UE403)
4 Device communication (EFI
B
)
FE Functional earth
If the UE403 safety relay is used on the extension connection of the M4000, then only
SICK sens:Control devices may be connected to pin 9 and pin 10 (EFI device communica-
tion) of the system connection.

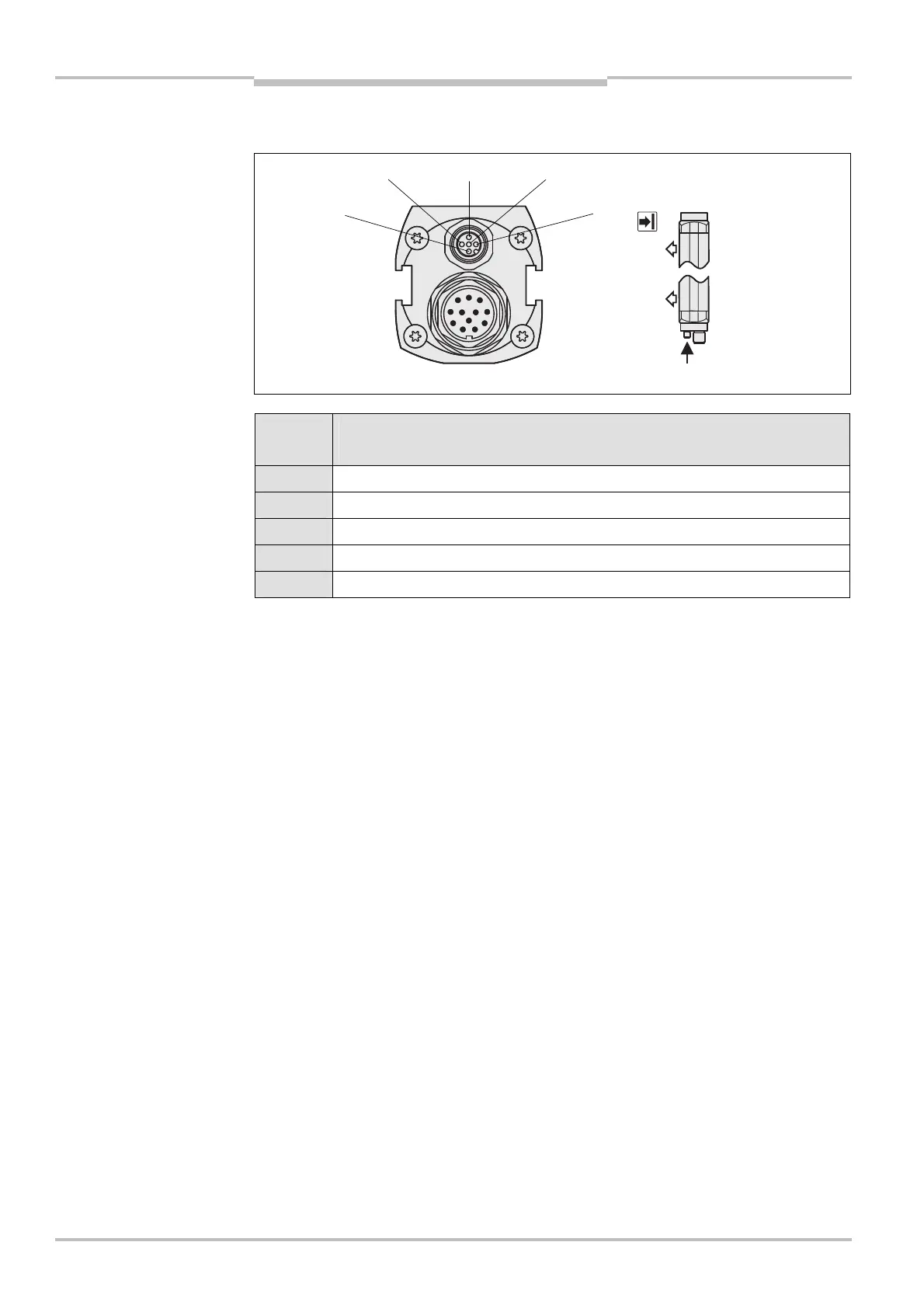

Fig. 53: Pin assignment
extension connection
M12
 × 4 + FE
Tab.
34
:
Pin assignment
extension connection
M12
 × 4 + FE
Note
1
FE
4
3
2

SICK M4000 Advanced Specifications

General

Type	Multiple light beam safety device
Enclosure rating	IP65
Supply voltage	24 V DC
Safety integrity level	SIL3
Performance level	PL e
Protection Rating	IP65
Operating Voltage	24 V DC
Number of beams	2 to 4 beams
Resolution	70 mm
Ambient operating temperature	-25 °C ... +55 °C
Angular Resolution	Not applicable
Operating Temperature	-25 °C ... +55 °C
