Technical specifications
13.3.5 Swivel mount bracket
13.3.6 Side bracket

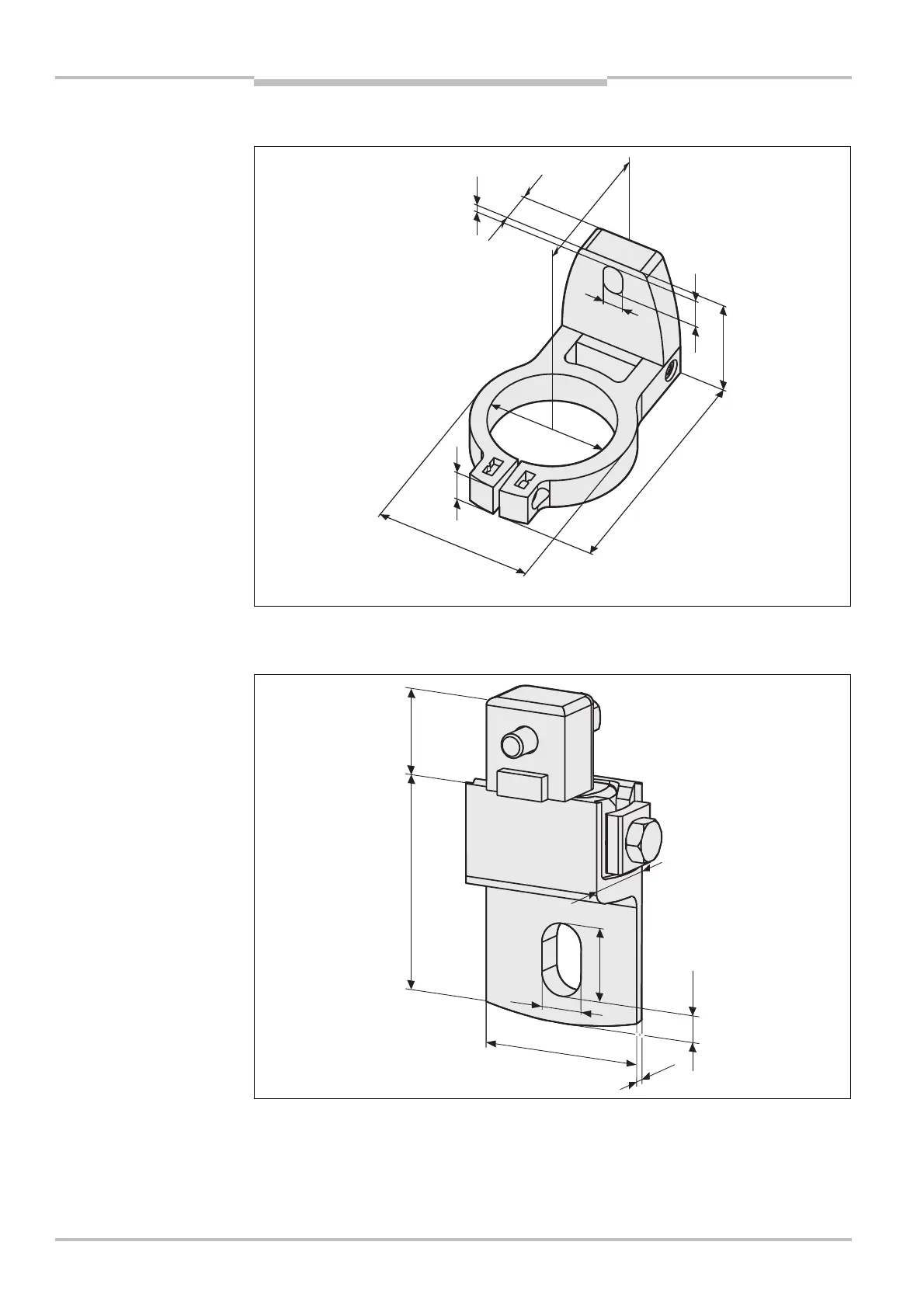

Fig. 73: Dimensional drawing
swivel mount bracket (mm)
Fig. 74: Dimensional drawing
side bracket (mm)
3.6
12.5
58
8
13
59
100
49
64
14
Part No.
2030510
18
15
5.5
6
34.5
9
19
50
Part No.
2019506

SICK M4000 Advanced Specifications

General

Type	Multiple light beam safety device
Enclosure rating	IP65
Supply voltage	24 V DC
Safety integrity level	SIL3
Performance level	PL e
Protection Rating	IP65
Operating Voltage	24 V DC
Number of beams	2 to 4 beams
Resolution	70 mm
Ambient operating temperature	-25 °C ... +55 °C
Angular Resolution	Not applicable
Operating Temperature	-25 °C ... +55 °C
