SICK M4000 Advanced User Manual

Operating Instructions Chapter 6
M4000 Adv., Adv. A/P, Area
8010797/YT72/2016-02-19 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 59
Subject to change without notice
Configurable muting functions
6.8 Override
O
verride is a manual triggering of muting after an error in the muting conditions. By means
of the brief simulation of a valid muting condition, you can mute the protective device
(muting) and then move the system clear and establish an error-free state.
Override can be realised using an external circuit or using the integrated override function.
6.8.1 Override realised using an external circuit
An additional key-operated switch connects the relay K1/K2 directly to 24 V. In this way
you overwrite the outputs OSSD1 and OSSD2.
WARNING
Please pay attention to the following notes on integration!
 The key-operated switch must have a positive-action resetting device and two switching
contacts for K1 and K2.
 Override is only to be effective using a key-operated switch in the manual mode of the
machine or plant controller.
 The control switch for override (key-operated switch) and the control switch for the
restart interlock must not be identical.
 Always fit the key-operated switch so that the entire hazardous area can be seen.
 The key-operated switch and its integration must comply with EN ISO 12100 and
EN 60204E1.

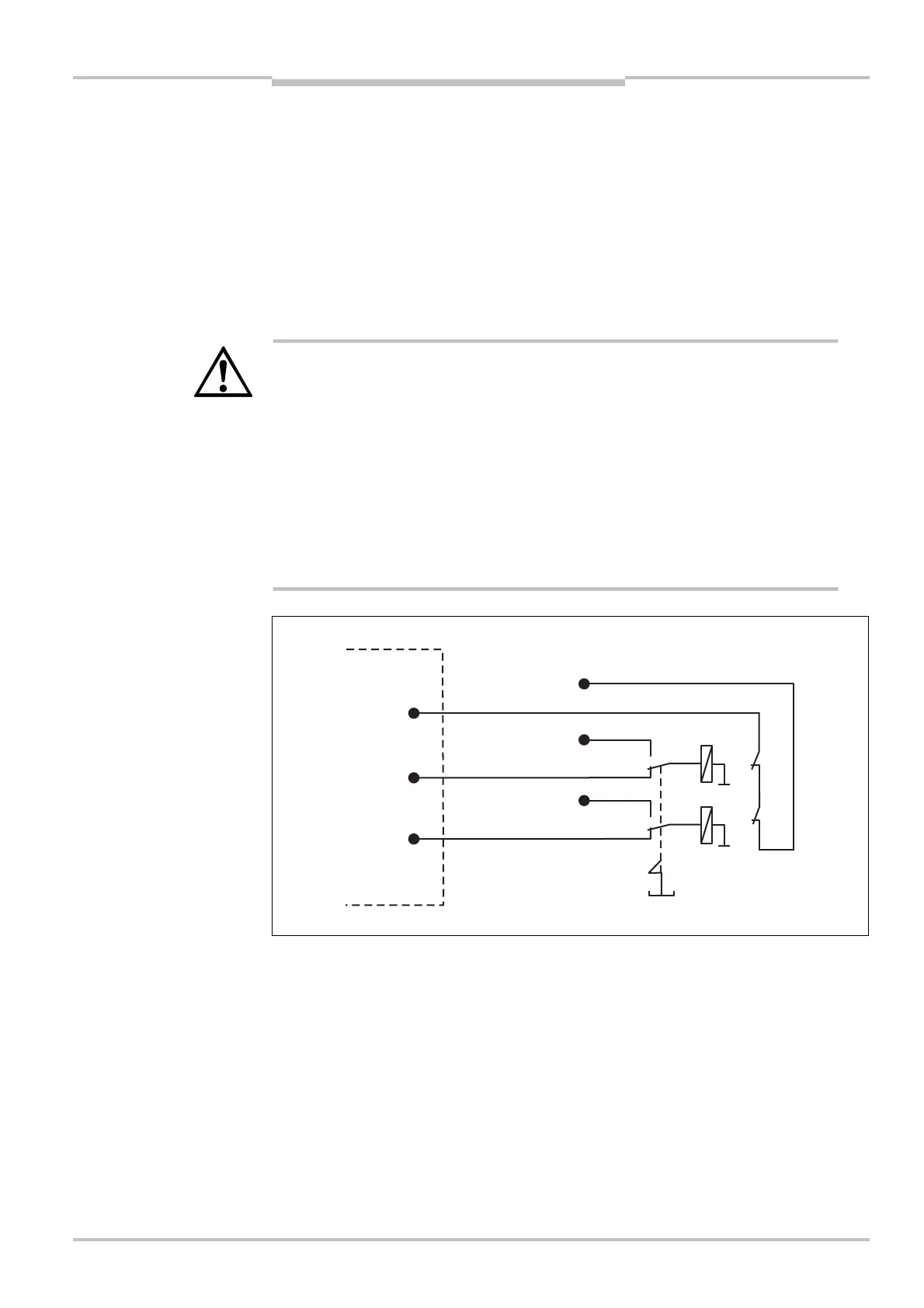

Fig. 34: Connection diagram
for Override
M4000
+24
V
DC
+24
V
DC
+24
V
DC
K1
K2
k1
k2
Key
-
operated sw
itch
EDM (PIN
6)
OSSD1 (PIN
3)
OSSD2 (PIN
4)

SICK M4000 Advanced Specifications

General

Type	Multiple light beam safety device
Enclosure rating	IP65
Supply voltage	24 V DC
Safety integrity level	SIL3
Performance level	PL e
Protection Rating	IP65
Operating Voltage	24 V DC
Number of beams	2 to 4 beams
Resolution	70 mm
Ambient operating temperature	-25 °C ... +55 °C
Angular Resolution	Not applicable
Operating Temperature	-25 °C ... +55 °C
