SICK M4000 Advanced User Manual

Chapter 13 Operating Instructions
M4000 Adv., Adv. A/P, Area
122 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 8010797/YT72/2016-02-19
Subject to change without notice
Technical specifications
13.3.2 M4000 Passive

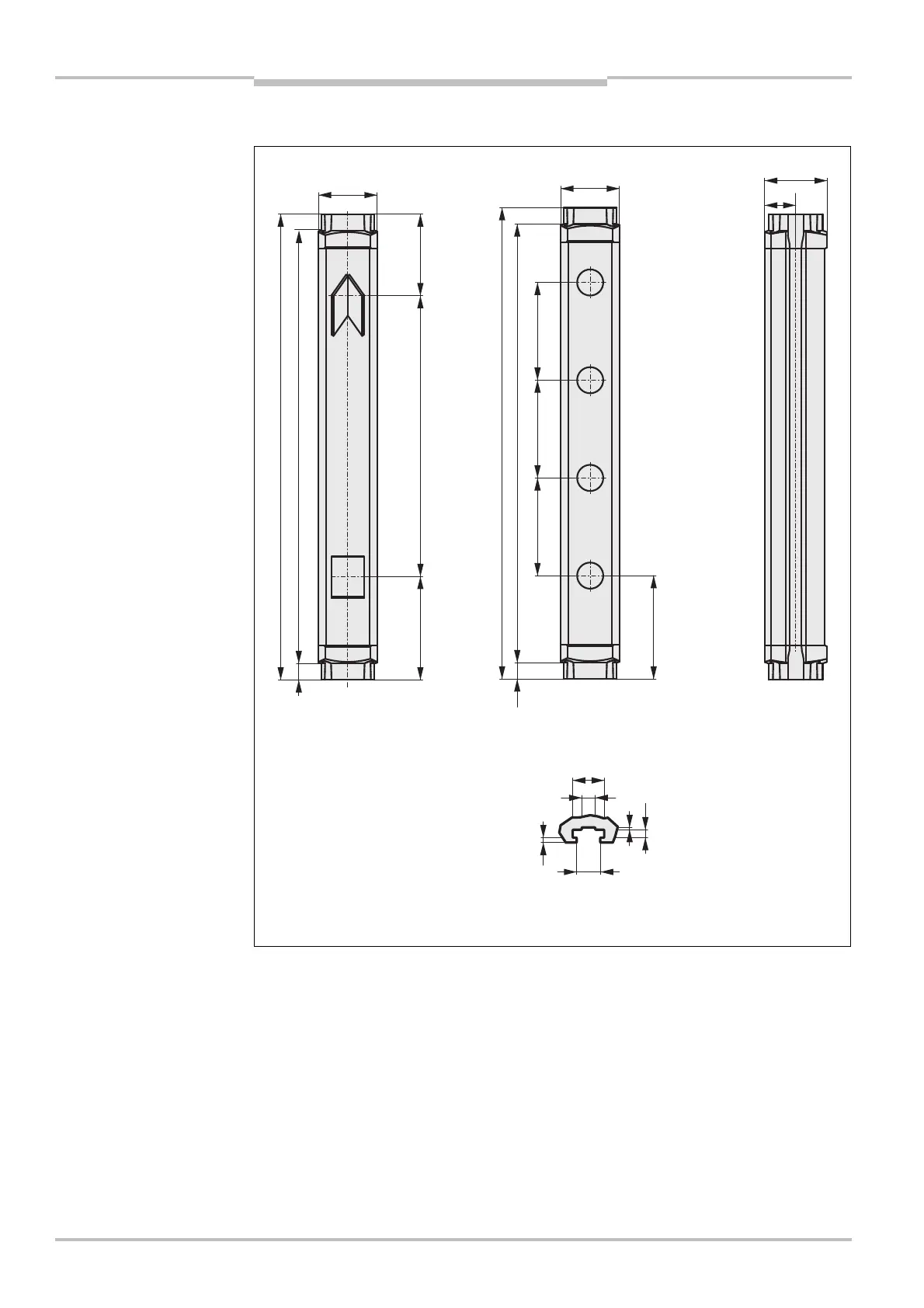

Fig. 70: Dimensional drawing
M4000 Passive (mm)
91.7
L2
52
Sliding nut groove for side
mounting
14
6
10.5
2.2
3.5
1
27.5
S1
55.5
M4000
Passive
(mirror deflection)
72.3
14.5
S1
S1
L1
91.7
S1
L2
52
14.5
M4000
Passive
(fibre4optic deflection)
L1
