Mounting
7.2.2 Mounting with swivel mount bracket
The swivel mount bracket is made of high-strength black plastic. The bracket is designed
such that sender and receiver can still be accurately aligned even after the bracket has
b
een mounted.
Attach the screws of the swivel mount bracket with a torque of between 2.5 and 3 Nm.
Higher torques can damage the bracket; lower torques provide inadequate protection
against vibration.
Note

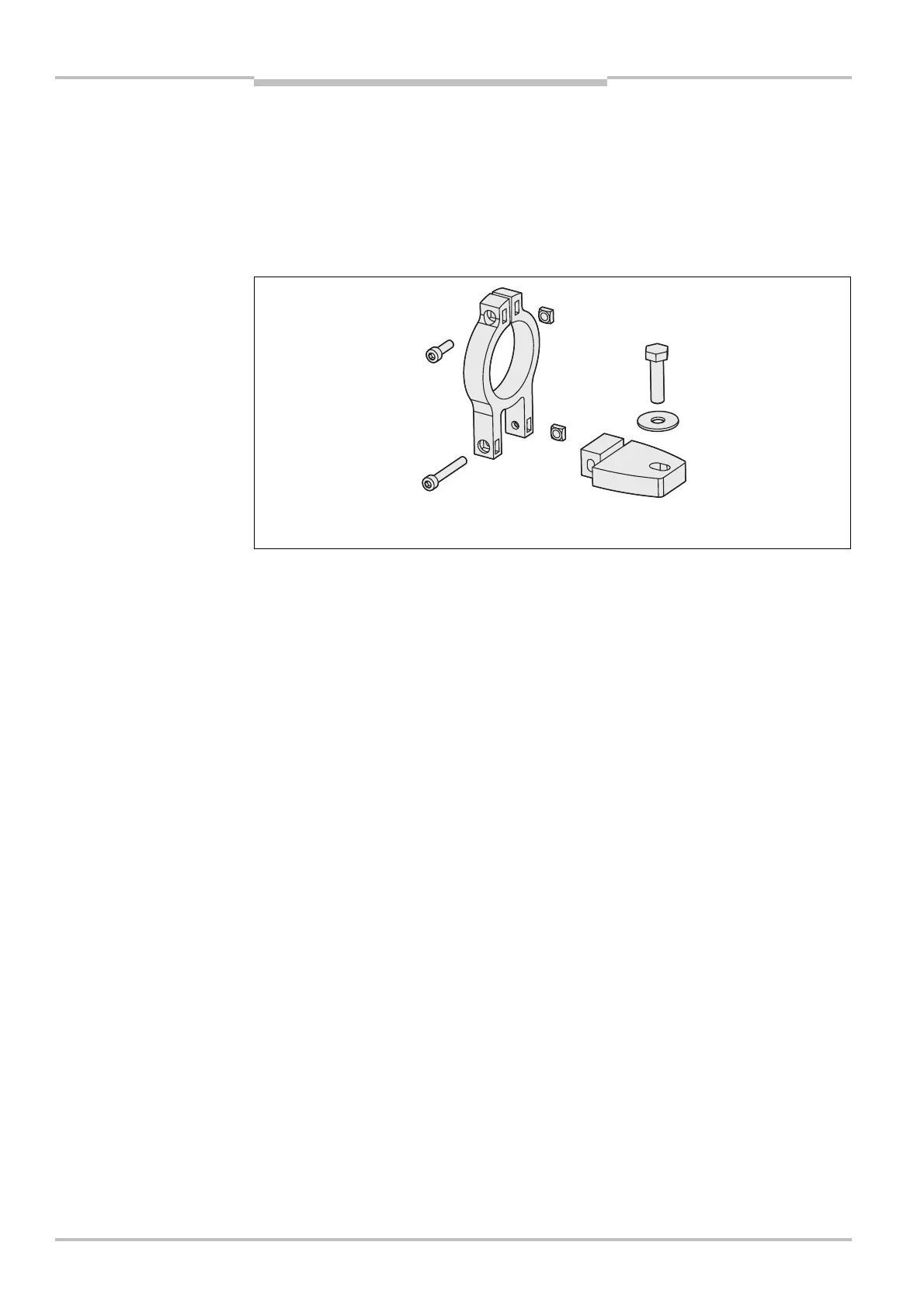

Fig. 43: Composition of the
swivel mount bracket
Part No.
2030510

SICK M4000 Advanced Specifications

General

Type	Multiple light beam safety device
Enclosure rating	IP65
Supply voltage	24 V DC
Safety integrity level	SIL3
Performance level	PL e
Protection Rating	IP65
Operating Voltage	24 V DC
Number of beams	2 to 4 beams
Resolution	70 mm
Ambient operating temperature	-25 °C ... +55 °C
Angular Resolution	Not applicable
Operating Temperature	-25 °C ... +55 °C
