Operating Instructions Chapter 7
M4000 Adv., Adv. A/P, Area
8010797/YT72/2016-02-19 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 73
Subject to change without notice
Mounting
Mount the bolts marked with to on the operator side of the system to ensure that
they remain accessible after mounting. The multiple light beam safety device can then
also be adjusted later.
The mounting screw is not included in the delivery.

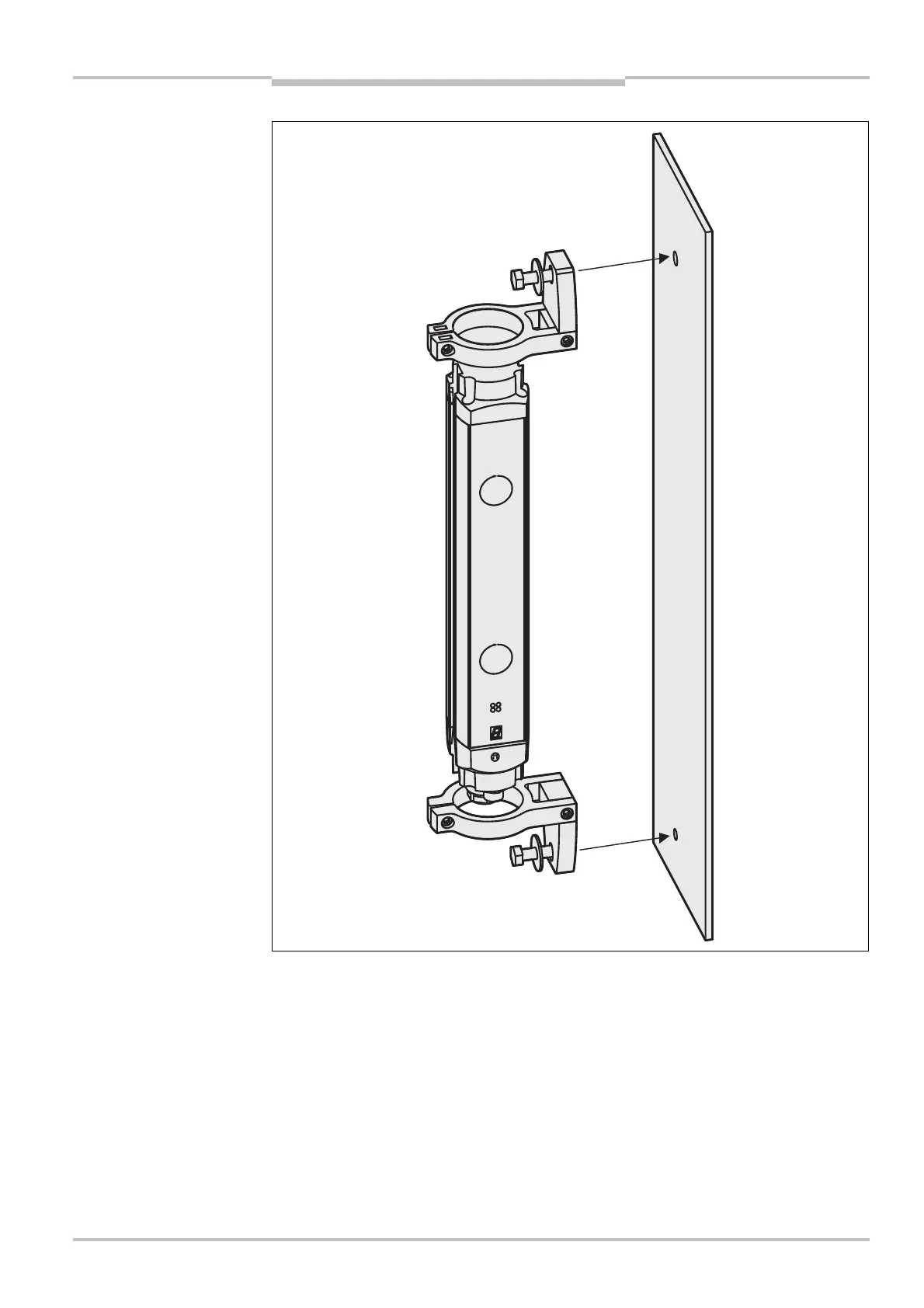

Fig. 44: Mounting the M4000
with swivel mount bracket
