8 MAINTENANCE AND REPAIRS
8020065-ZSP4/2017-08-10|SICK
OPERATING INSTRUCTIONS | Master Data Analyzer
Subject to change without notice
Do not damage the measuring wire from the wire draw encoder
▸
Strictly avoid damage to the measuring wire caused by sharp edges and/or objects in
the wire’s travel path.
▸
Ensure that the wire is not squashed or kinked.
▸
Ensure that the area where the wire travels through is clear following the cleaning
activities and that the measuring wire will not be damaged.
Bringing the measurement gantry to the start / end position and securing it in place
1. Move the measurement gantry to the start position on the controller housing.

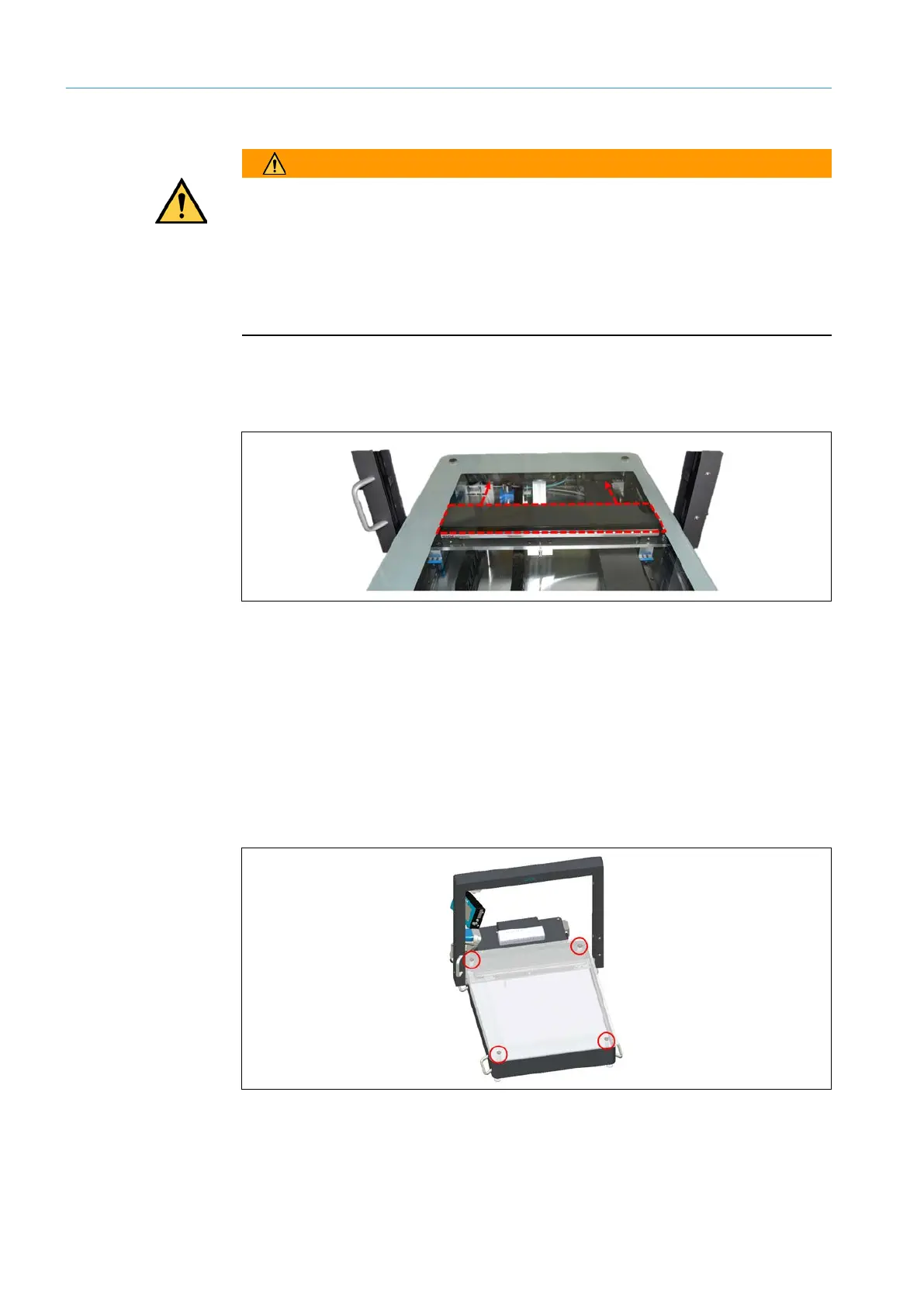

Fig. 51: Cleaning – Internal housing area (preliminary work)
In this position, the measuring wire from the wire draw encoder is fully retracted. The
wire draw system is protected against damage by the covering plate.
2. Use cable ties to secure the handles of the measurement gantry so that it does not
move accidentally during the cleaning process.
Removing the glass panel
1. Unscrew and remove the four knurled screws which are used to mount the glass panel
on the four connecting bolts of the weighing cells.
Fig. 52: Cleaning – Internal housing area (removing the glass panel)
2. Carefully remove the glass panel from the connecting bolts. A second person should
support you in doing this.
Note
