7 OPERATION
8020065-ZSP4/2017-08-10|SICK
OPERATING INSTRUCTIONS | Master Data Analyzer
Subject to change without notice
Ensuring a smooth measurement process
• Do not reach into the light curtain of the light grids during the measurement process.
• Ensure that the object does not move during the measurement process.
7.3.3 Checking the measurement results
The measurement is complete when all of the diodes are no longer being shadowed by
the object, meaning that no more measured values are being recorded.
Completing the measurement
▸
Stop moving the measurement gantry or move it all the way to the end position.
Indication of incorrect measurements
You will receive an error message if the measurement could not be successfully
completed. For example, this may be the case if:
• The entire object is not placed on the measurement field
• The object to be measured is too large or too small
In these cases, the measurement must be repeated. For more information on how to deal
with messages, see chapter 9.2.1 Status indicator on the display.
7.3.3.1 Reading measurement data

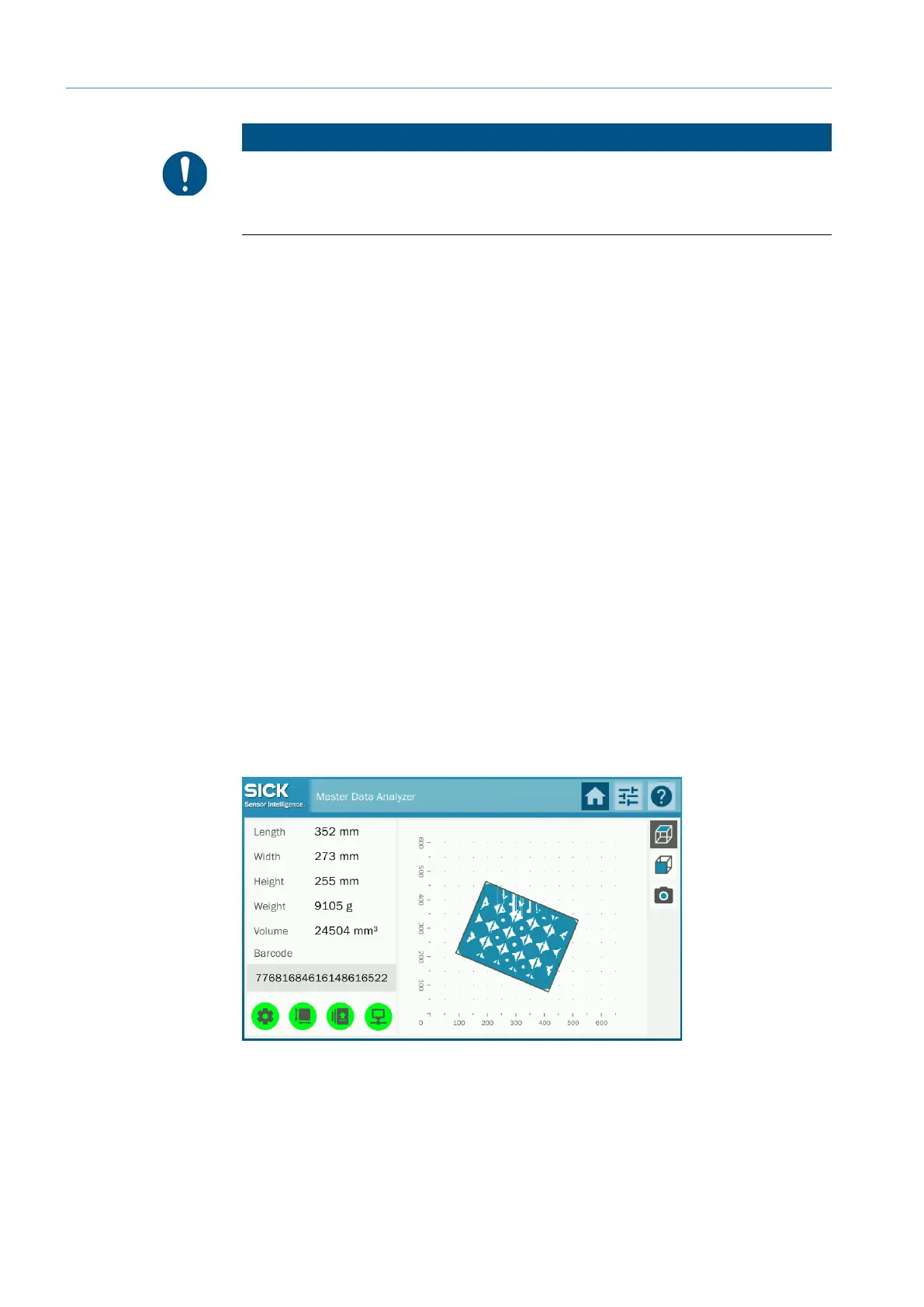

All measurement data is immediately visualized on the display. In addition to the recorded
bar code and object weight, the display now shows the length, width, height, and box
volume.
If the measurement was successful, the circle symbol for the measurement status
indicator now lights up green. The system’s status is therefore Measurement complete.
▸
Use the scale in the measurement field to check whether the measured values are
plausible.
Recommendation
