OPERATING INSTRUCTIONS | Master Data Analyzer
4.4 Removing the transport locks
The scales, measurement gantry, and hand-held scanner are protected against damage
whilst being transported.
The transport locks must be removed before commissioning the MDA.
Removing the transport lock on the electronic scales
The glass panel is locked to the housing in order to protect the weighing cells.
1. Unscrew the screws in the transport locks. The non-removable screws cannot be
completely unscrewed.
2. Swivel the transport locks downwards and tighten the screws once again. The transport
locks remain on the housing and can be returned to their initial position in case the
device is transported again.

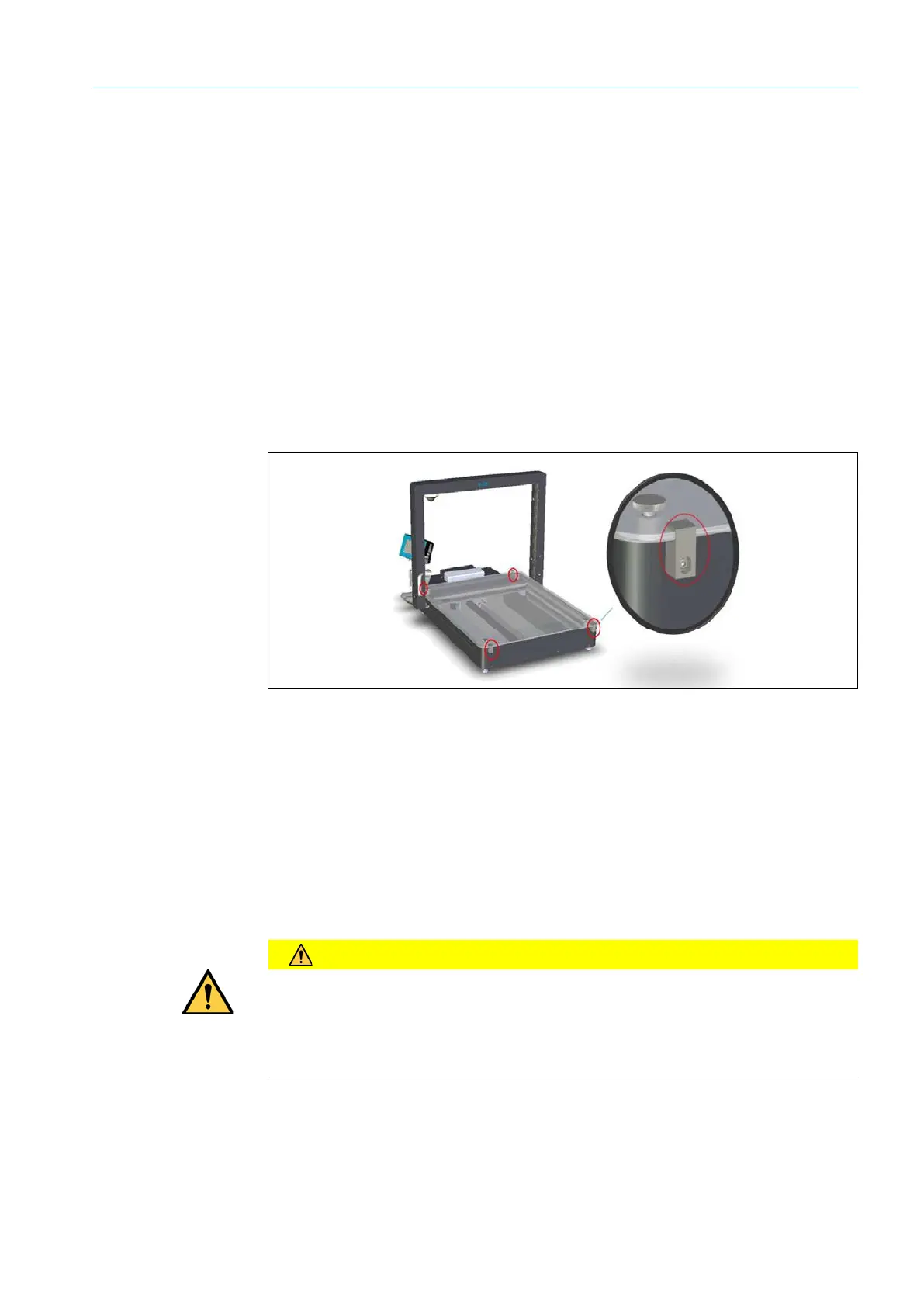

Fig. 28: Removing the transport locks on the electronic scales
Removing the transport lock on the measurement gantry
The measurement gantry is secured to the handle with a cable tie on the operator’s side.
▸
Use a suitable tool to cut the cable tie (e.g., wire cutters).
Removing the transport lock on the hand-held scanner
The hand-held scanner is secured in its holder with a cable tie.
▸
Use a suitable tool to cut the cable tie (e.g., wire cutters).
CAUTION
Risk of damage to the connecting cables
The connecting cable is attached together with the hand-held scanner.
▸
When cutting the cable tie, please take care not to damage the connecting cable for
the hand-held scanner.
