3 SYSTEM DESCRIPTION
8020065-ZSP4/2017-08-10|SICK
OPERATING INSTRUCTIONS | Master Data Analyzer
Subject to change without notice
Visualization of measurement results
All of the measurement data recorded by the MDA is constantly shown on the display. The
measurement is additionally displayed in the form of a 2D visualization.
If the MDA650 Image / MDA 800 Image system variant is in use, the symbol for the live
display appears on the right, next to the measurement field.

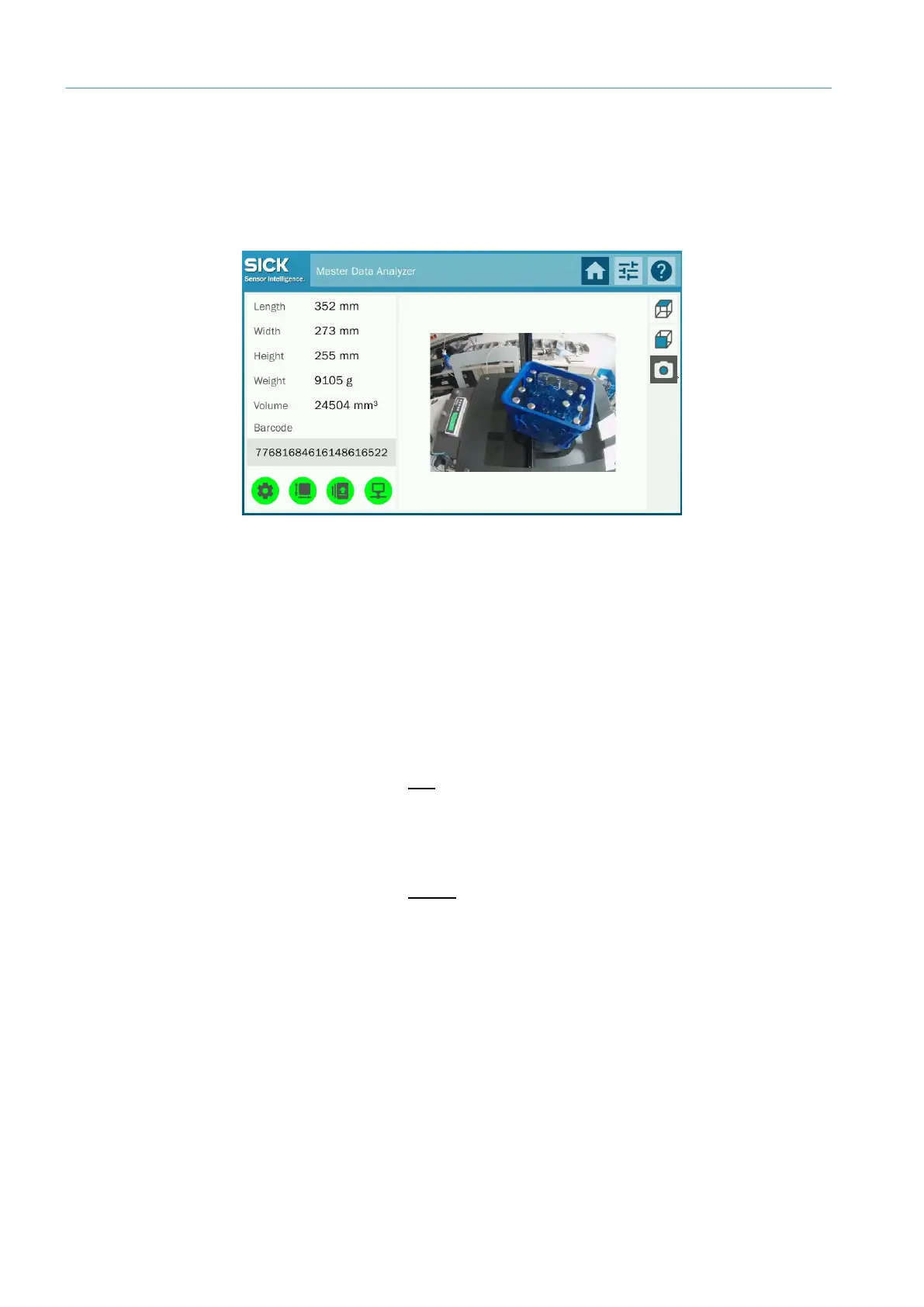

Fig. 19: Operating principle – Visualization of measurement results
Output of measured values
All information converges in the MSC800 central control unit. The MSC800 processes the
encoder signals and assigns the measurement results from the individual systems to the
respective object.
Depending on the system variant, the output of measured values are sent to the higher-
level customer system via Ethernet (LAN) or via a WLAN access point.
When using the MDA650 Image/MDA800 Image), a photo-realistic image of the
measuring object can be emitted with the measurement results.
• In the operating mode with bar code scanning, the measurement results are stored
temporarily during the output of measured values if the device is not connected to
the customer server. This allows multiple measurements to be carried out in sequence,
even without a connection. Data are transmitted automatically as soon as the
connection is available again.
• In the operating mode without bar code scanning, the data must be transferred directly
after the measurement otherwise the data cannot be allocated to the bar code in
the customer system. The temporary storage of measurement results is not supported.
Note
