7 OPERATION
8020065-ZSP4/2017-08-10|SICK
OPERATING INSTRUCTIONS | Master Data Analyzer
Subject to change without notice
74
7.2.4 Moving the measurement gantry to a start position
The measurement gantry must be located in the start position before the first
measurement.
▸
If you haven’t already done so, move the measurement gantry to the start position
using the handles.

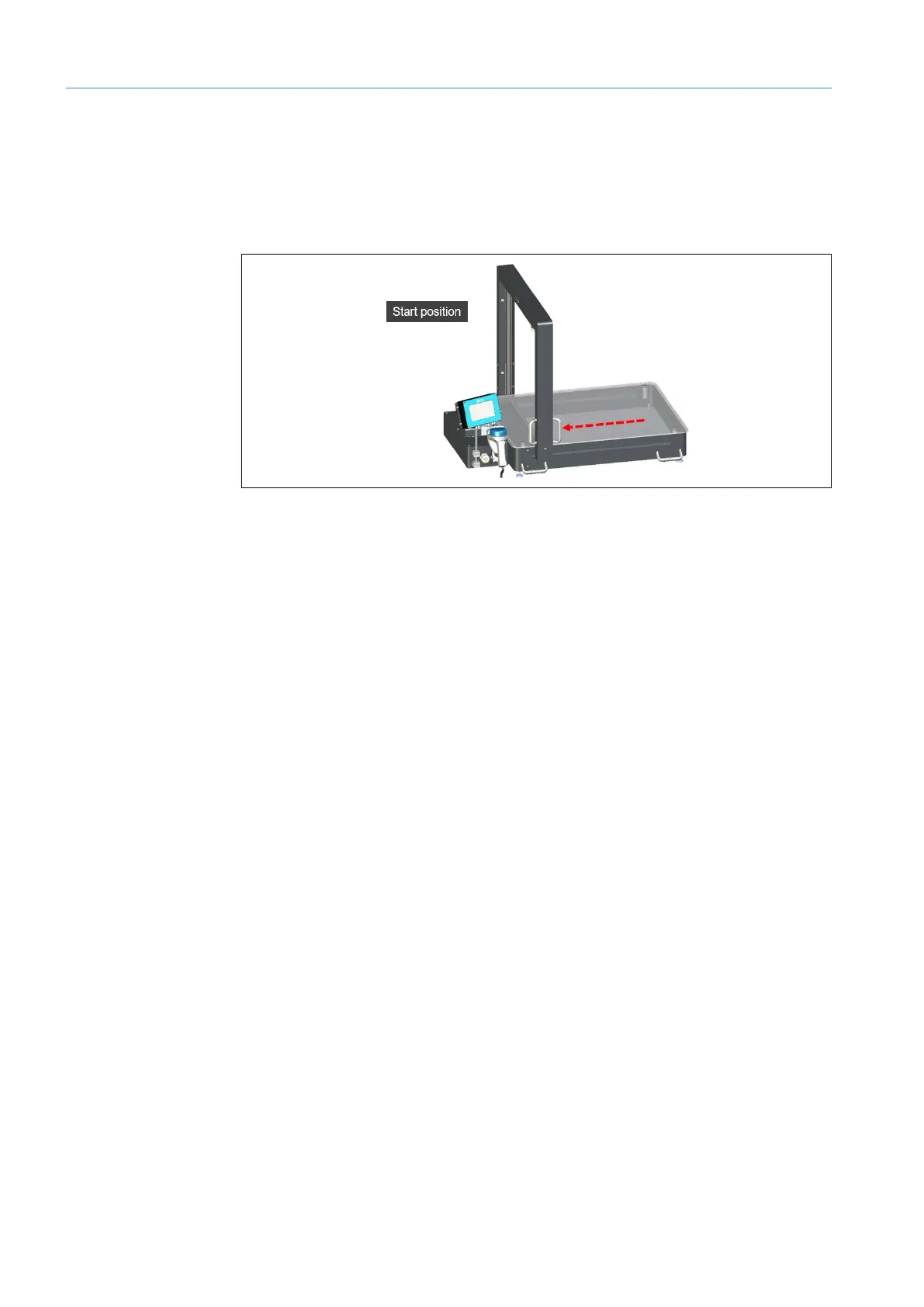

Fig. 43: Measurement gantry in start/end position
