OPERATING INSTRUCTIONS | Master Data Analyzer
7.2.2 Starting up the MDA
All components of the Master Data Analyzer are started up together as soon as the
voltage supply is connected.
Connection via mains cable
▸
Insert the male connector on the connecting cable into the socket.
If you are using the sliding table with rechargeable battery, please read chapter 7.8 Using
the sliding table with rechargeable battery.
Component self-test
All system components of the Master Data Analyzer are started up and checked for their
operational readiness by way of a self-test.
▸
You can follow the process on the display by checking the progress bar.
The main screen
The start-up process lasts approx. 30 seconds. The IP camera is ready for operation after
approx. 40 seconds.

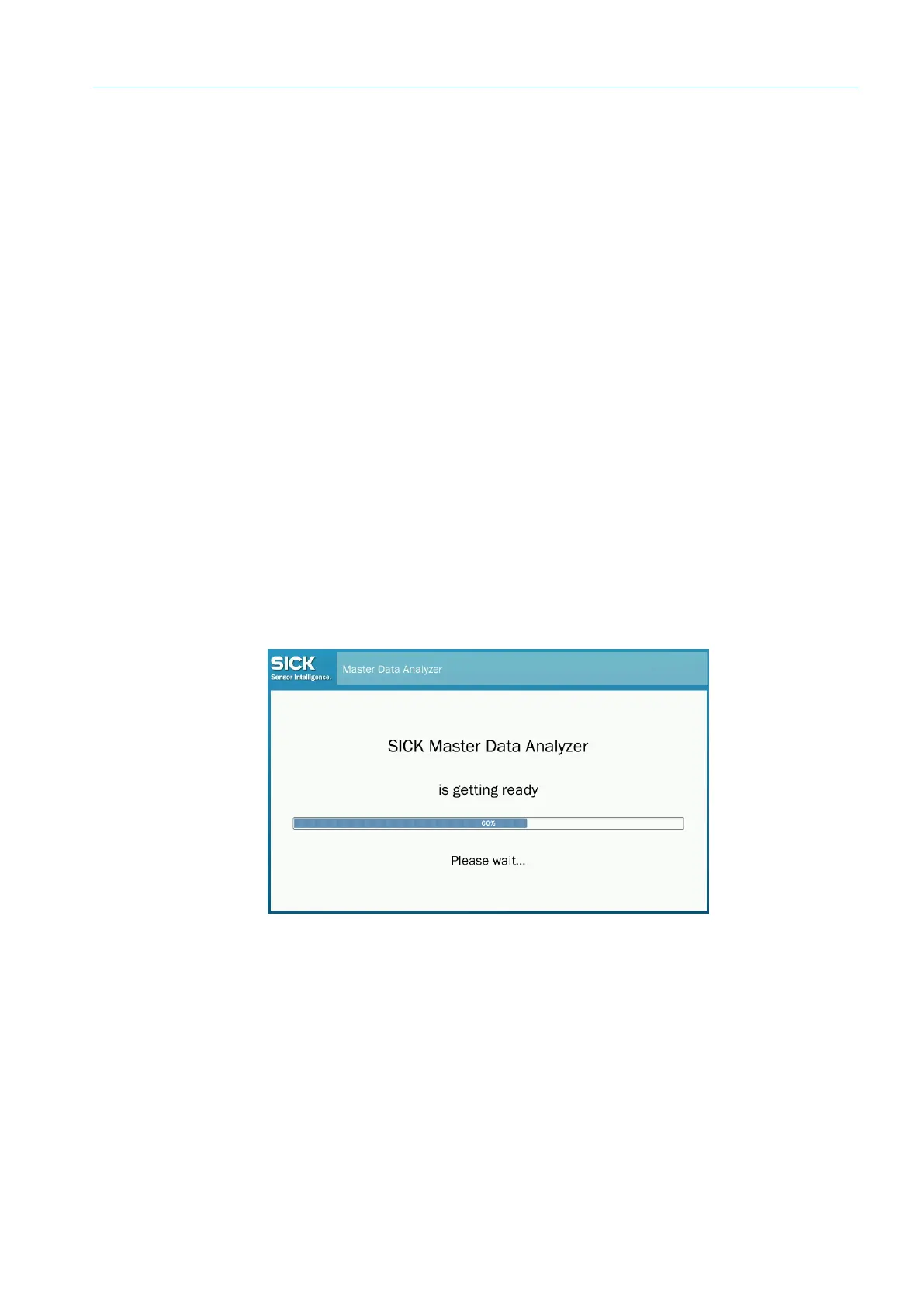

During the start-up phase, a window with a progress display appears on the touchscreen.
This visualizes the progress of the start-up phase.
