Mounting the camera
1. Screw the replacement device onto the mounting bracket.
2. Re-insert the Ethernet cable into the connection socket on the camera.
3. Place the dust shield housing on the camera and screw it in place.
8.2.5 Replacing the WLAN module
The WLAN module is available under part number 2087193.
1. Disconnect all connecting cables and remove these from the WLAN module.
2. Unscrew both fixing screws. In doing so, hold the device with one hand.

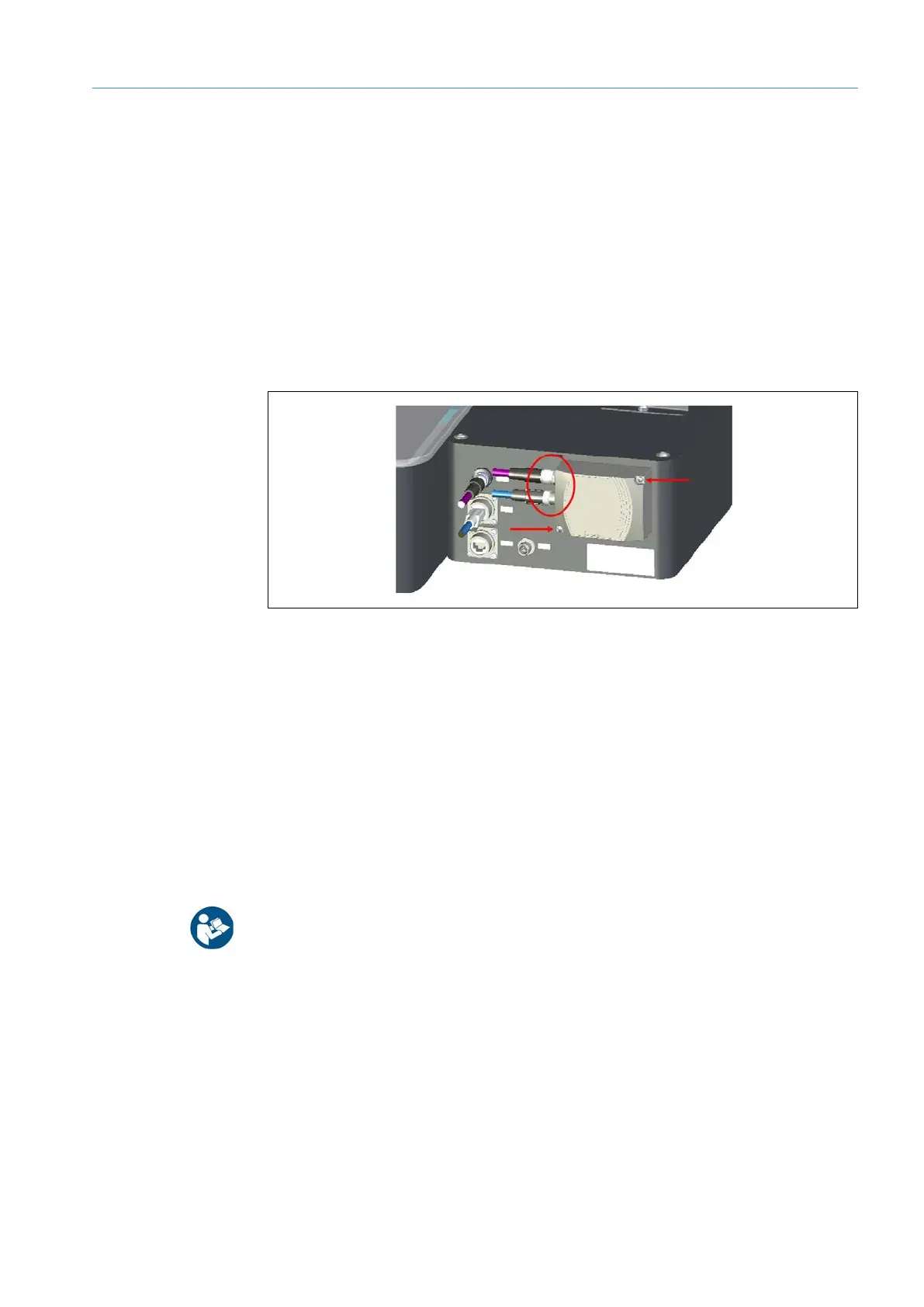

Fig. 61: Replacing components – WLAN module
3. Remove the WLAN module from the controller housing.
Mounting the replacement device
1. Place the replacement device with the two drill holes over the drill holes on the MDA
housing.
2. Fasten the device with the two fixing screws.
3. Reconnect the cables and screw the plug connectors in place.
4. Ensure that the cables are securely fastened.
Configuring the replacement device
Commission the WLAN module using the operating instructions included with the delivery
from the manufacturer of the device (see chapter 6.8 Configuring the WLAN module).
