7.2.3 Structure of the measurement window

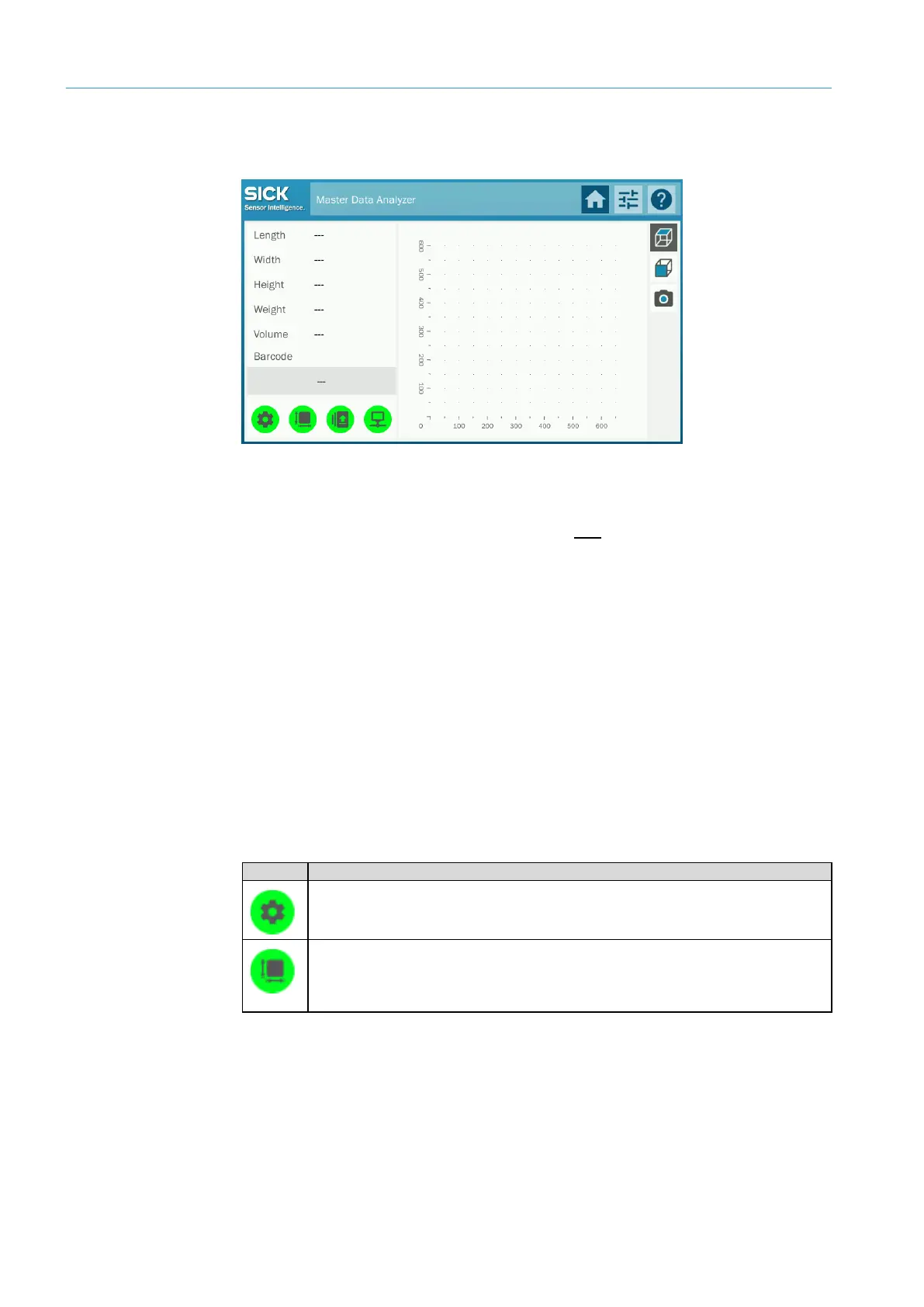

The measurement screen appears on the display at the end of the start-up process.
Display of the measurement results and the measured object
The measurement results and the bar code are displayed in the top left corner of the
measurement screen (only for the operating mode with bar code scanning). All values
are set to zero when the system is started up.
If a measurement has already been carried out, the measurement data from the last
measurement are shown on the display. The display will be overwritten by the new
measurement.
The graphic display on the right-hand side shows a 2D view of the measured object.
The symbols to the right of the measurement window enable you to switch between a
2D display from above and one from the side.
A measurement scale helps you to quickly verify the object’s measured values.
Icons to indicate readiness for measurement and operation
The bottom left corner of the screen uses colored circles to visualize the system’s
measurement and operating status. If all of the circles are green following the system
start-up, you can start with the first measurement.
Visualizes the system status.
A green circle indicates that the Master Data Analyzer is ready for operation.
Visualizes the measurement status.
Depending on the sequence of operations, a green circle indicates that a
measurement has been successfully completed or that you can start the next
