8 MAINTENANCE AND REPAIRS
8020065-ZSP4/2017-08-10|SICK
OPERATING INSTRUCTIONS | Master Data Analyzer
Subject to change without notice
106
1. Disconnect the plug connections from both connecting cables and remove these from
the display.
2. Unscrew and remove the four fixing screws. In doing so, hold the device with one hand.

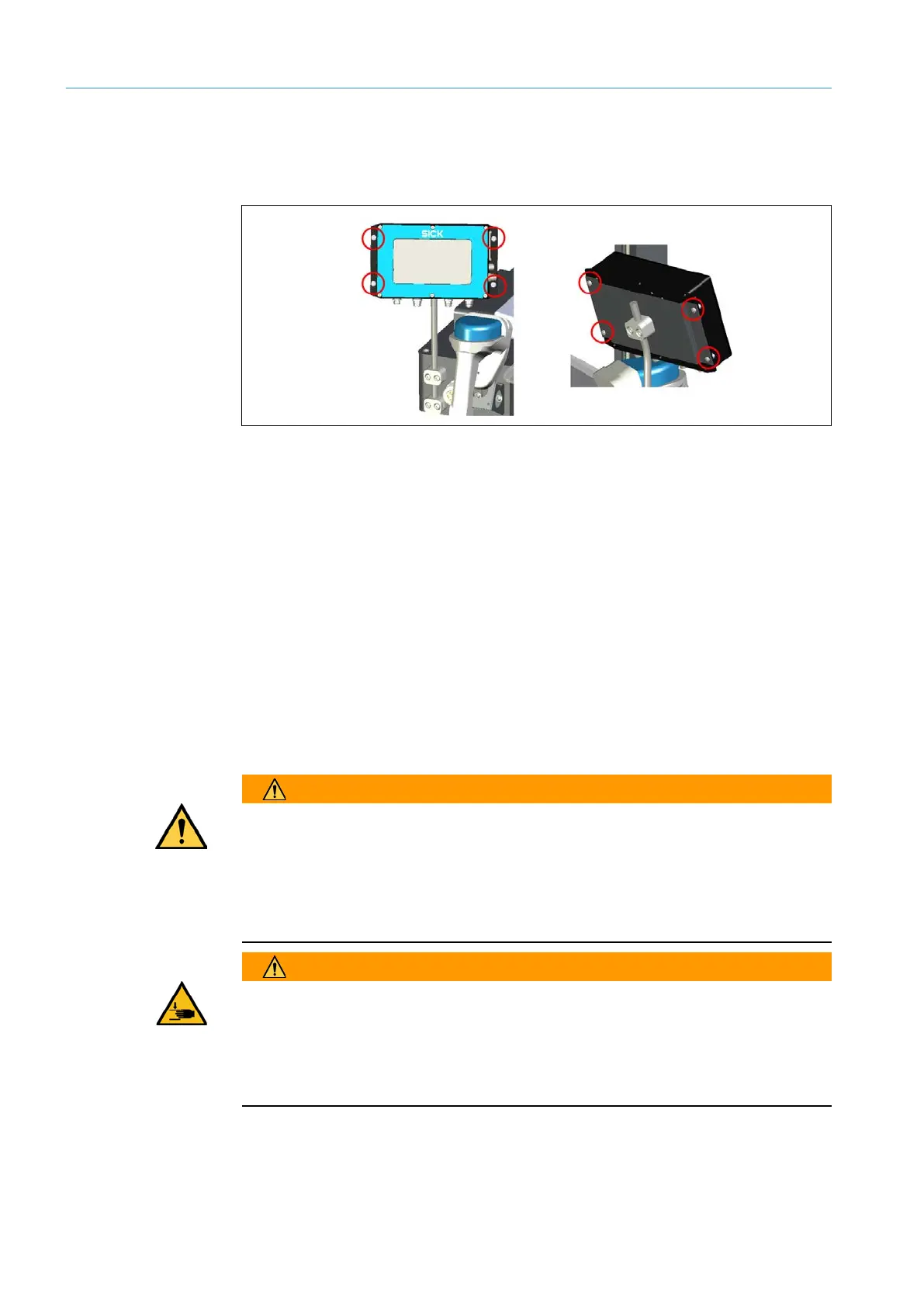

Fig. 55: Replacing components – Display (dismantling/mounting)
3. Remove the display from the bracket.
Mounting the replacement device
1. Place the replacement device on the bracket.
2. Secure the display in place using the four fixing screws.
3. Reconnect the cables and screw the plug connector in place.
4. Ensure that the cables are securely fastened.
8.2.3 Replacing the glass panel
The glass panel is available under part number 4087905.
WARNING
Risk of injury when lifting heavy objects
Depending on the system variant, the glass panel can weigh up to 15 kg.
▸
Remove and mount the glass panel with 2 people.
▸
Wear safety shoes in addition to your personal protective equipment.
▸
Lift and carry the glass panel taking ergonomic principles into account.
WARNING
Risk of crushing when mounting the glass panel
There is a risk of crushing when placing the glass panel on the connecting bolts.
Measures
▸
Do not place fingers between the housing and the glass panel.
