17. Audio Commands

The AT Commands described in this chapter are related to the MC55's audio interface.

17.1 Audio programming model

The following figure illustrates how the signal path can be adjusted with the parameters <inCalibrate>,

<inBbcGain>, <outBbcGain>, <outCalibrate> and <sideTone> as well as <io>, <mic> and <ep>.

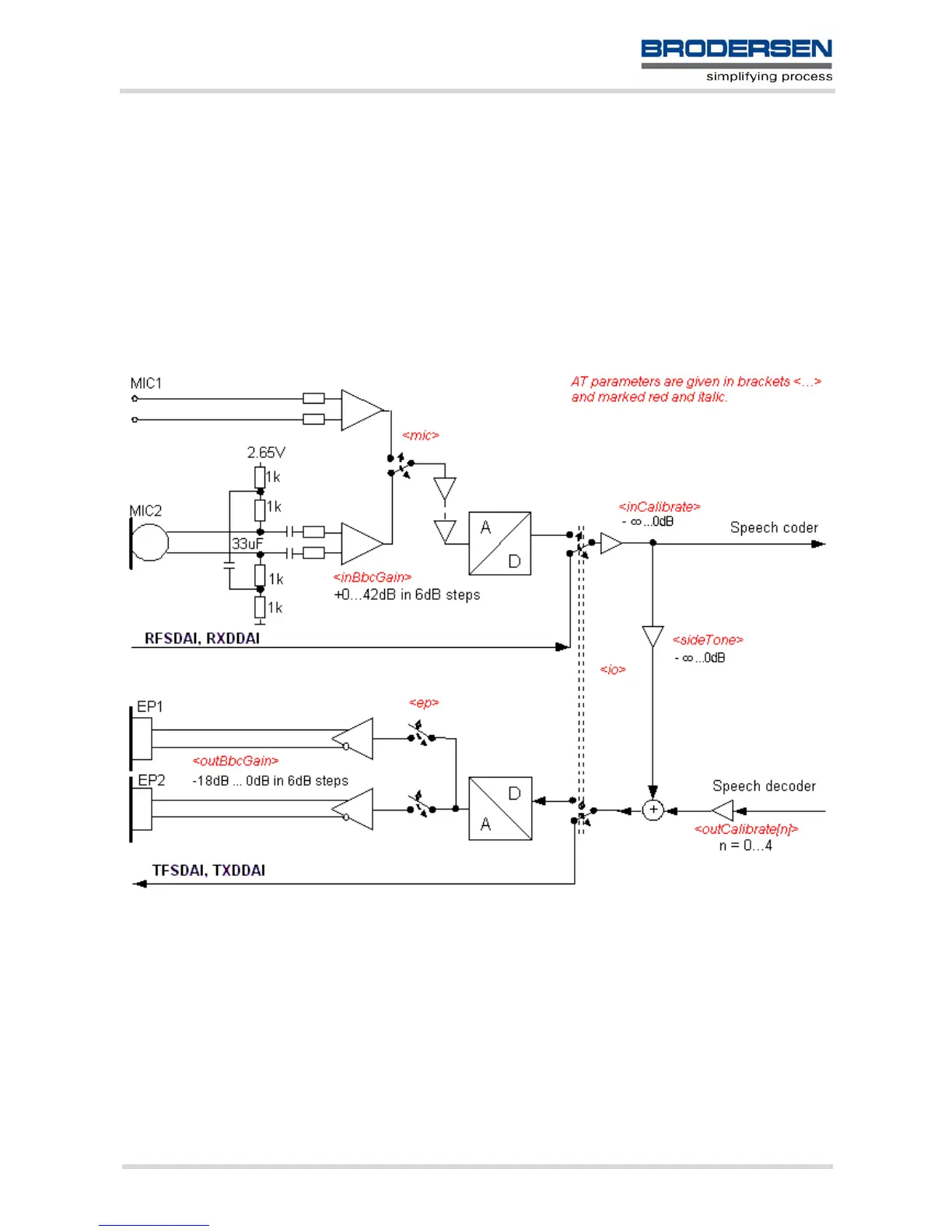

Figure 17.1: Audio programming model for MC55 Module

Default Chapter3
