11.3 Connection modules for electronic modules
ET 200pro distributed I/O system
Operating Instructions, 03/2013, A5E00335544-08
261
11.3
Connection modules for electronic modules
11.3.1
Connection module CM IO 4 x M12 for electronic modules
Order number
6ES7194-4CA00-0AA0
Properties
Properties of the connection module CM IO 4 x M12:
● Can be plugged in and attached with screws to the electronic module
● 4 M12 circular socket connectors
● 4 labels and 1 module tag
Pin assignment
The pin assignment depends on the electronic module used.

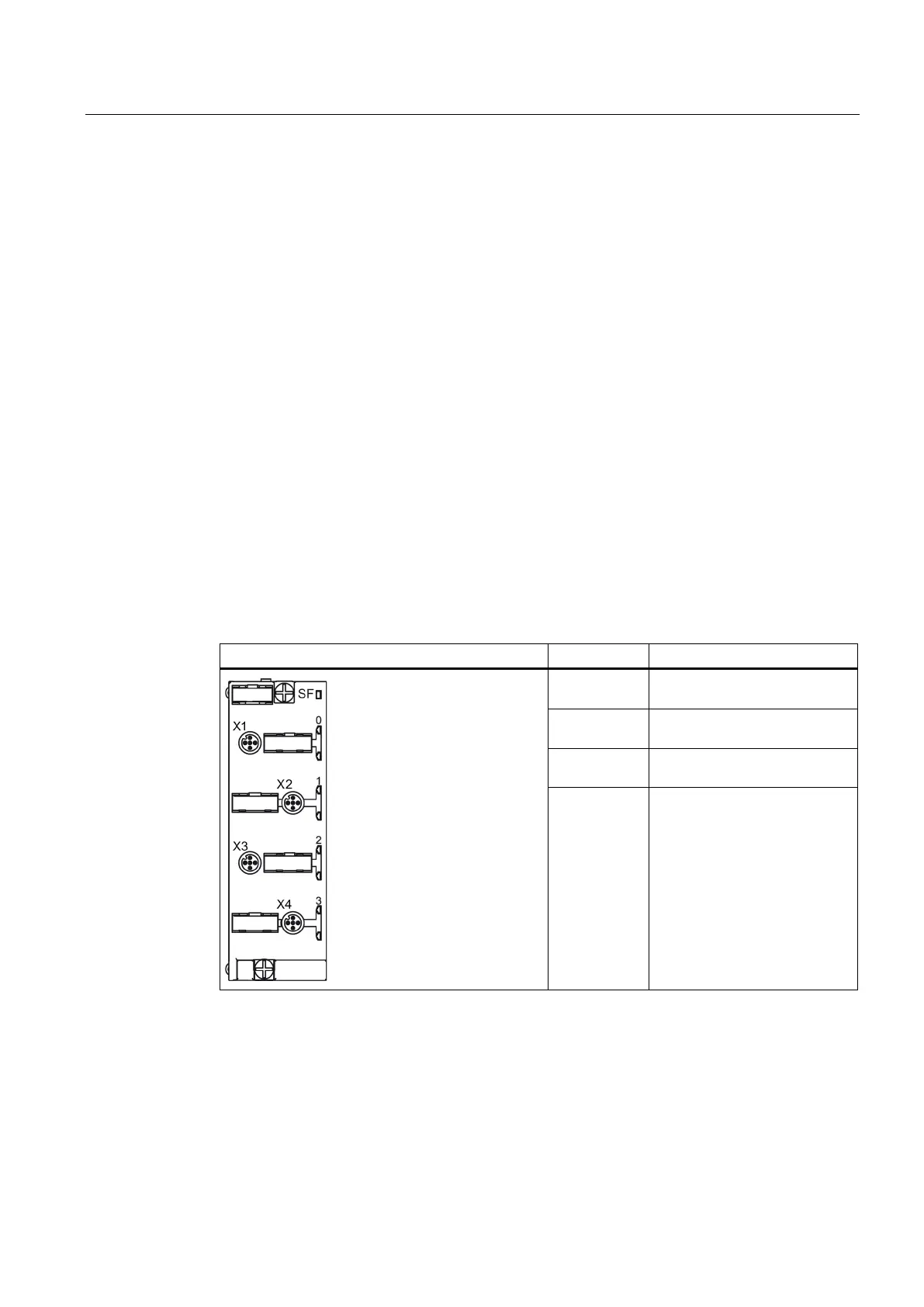

View
Connection
Designation
X1 1. M12 circular socket
connector
X2 2. M12 circular socket
connector
X3 3. M12 circular socket
connector
X4 4. M12 circular socket
connector
