Siemens ET 200pro - Interface Module with Connection Module for PROFINET IO

Appendix
A.2 Dimension drawings
ET 200pro distributed I/O system
Operating Instructions, 03/2013, A5E00335544-08
481
A.2.2
Interface module with connection module for PROFINET IO
IM 154-4 PN High Feature interface module with CM IM PN M12, 7/8" connection module
Top: with narrow type rack; bottom: with compact type rack.

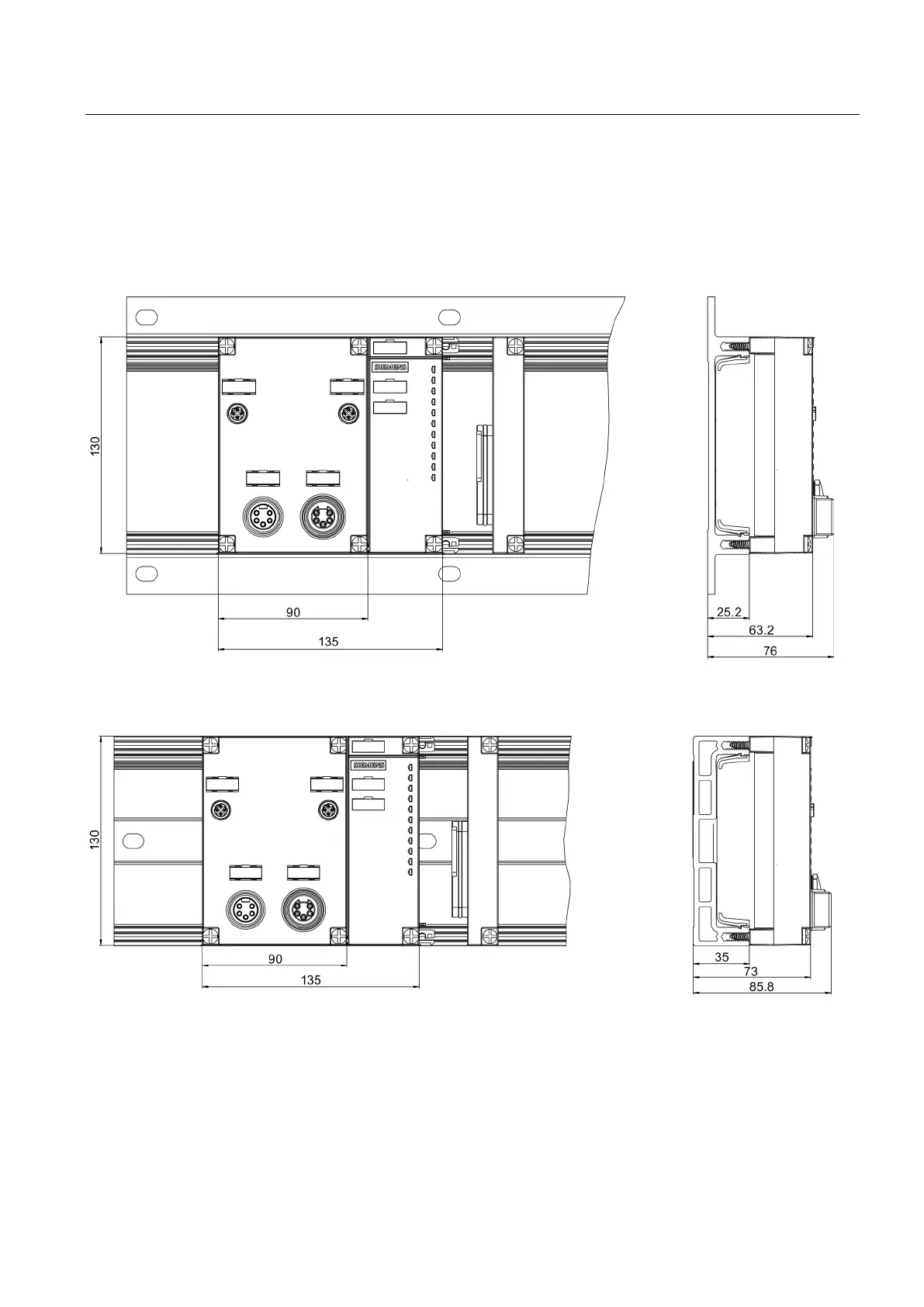

Figure A-4 IM 154-4 PN High Feature interface module with CM IM PN M12, 7/8" connection module
