System description

Topology

141 |

184

Building Technologies

A6V10211076_i_en_

Fire Safety

2015

9.2.6 Assigning with the hardware tree

Components can be allocated to a geographical location in the system. This

assignment is a ↑ link.

Geographical allocation

Each device in the ↑ 'Hardware tree' has a unique address. In ↑ 'Detection tree', it

is possible to allocate room x on floor y to the device, for example.

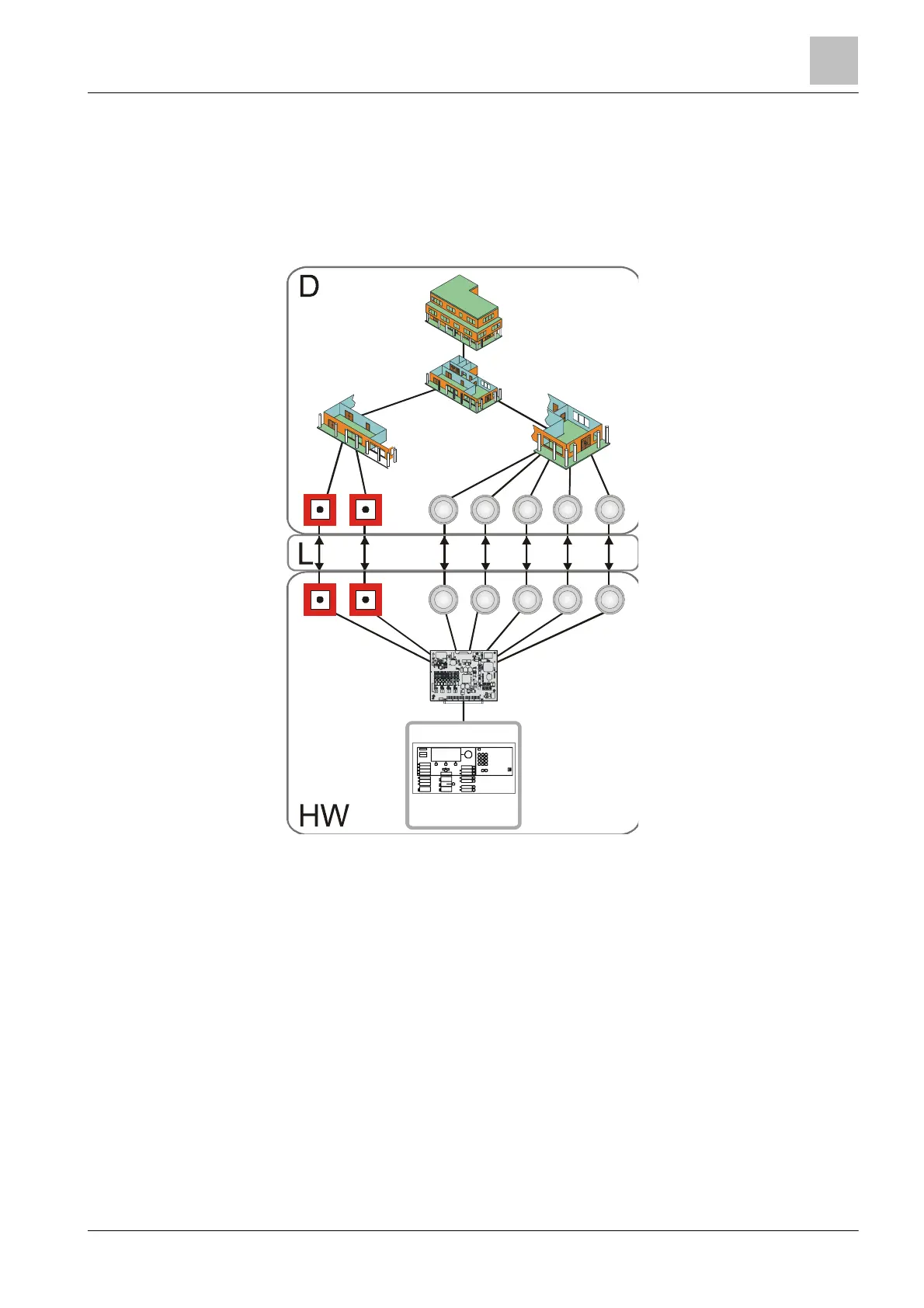

Figure 15: Sample ↑ assigning of the detection tree to the hardware tree

D ↑ 'Detection tree'

L ↑ Link

HW ↑ 'Hardware tree'

The physical and the ↑ logical channel of a device are assigned between the

↑ 'Detection tree' and ↑ 'Hardware tree'.

The physical channel is the lowest level in the 'Hardware tree' and maps the

physical function of a device.

The logical channel is the lowest level in the 'Detection tree' and maps the logical

function of a device.
