3.3.5 Display with window and input field
The display with window and input field has one or several input fields for entering
e.g. the PIN, an address or customer text.

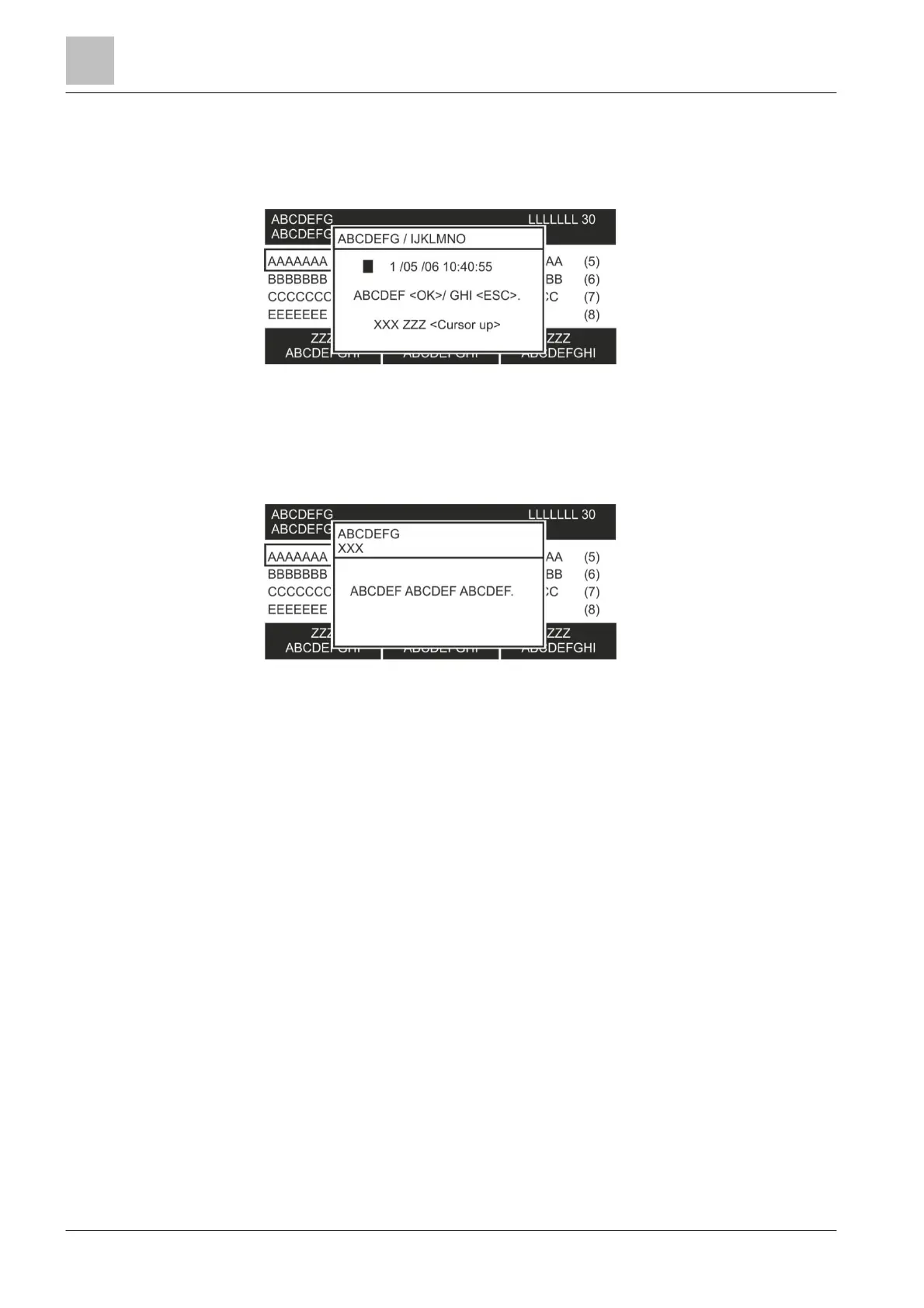

The figure below shows the display with an exemplary window with input field:
Figure 6: Example of the display with window and input field
3.3.6 Display with window and command response
The display with window and command response is open after a command has
been entered. The operator therefore receives a confirmation for the command
entered.
Figure 7: Example of the display with window and command response
