9.2 Topology

The configuration of an 'FS720' fire detection installation is created in the following

structure trees:

● 'Hardware tree'

● ↑ 'Detection tree'

● ↑ 'Control tree'

● 'Operation tree'

● 'Network tree'

The structure is created by installing in the building and configuring the fire

detection installation. The elements of the individual structure trees are assigned to

one another via channels.

Thanks to a hierarchical topology and arrangement into zones, events can be

assigned geographically and shown accordingly. This enables commands to be

given to consolidated parts of the ↑ site, for example.

9.2.1 Hardware tree

The ↑ 'Hardware tree' represents the installed hardware. The individual elements

of the 'Hardware tree' are structured as follows:

● ↑ 'Station'

● 'Module'

● 'Line'

● 'Device'

● ↑ 'Physical channel'

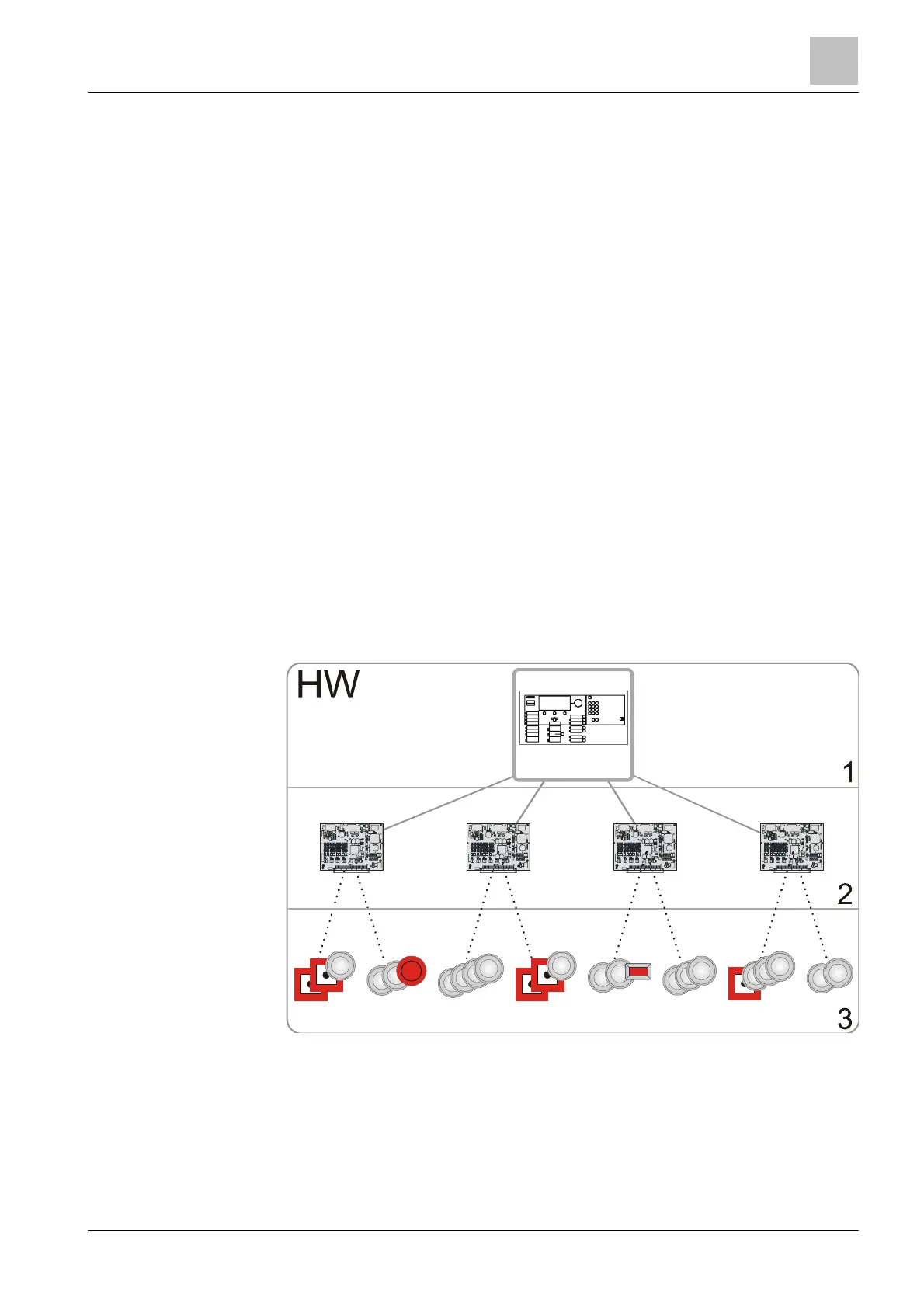

'Hardware tree' example

1 ↑ 'Station'

2 'Module'

3 'Device'

Dotted line 'Line'
