System description
Topology
9
132 | 184
Building Technologies
A6V10211076_
i_en_
--
Fire Safety
2015
12
15
9.2.2 Detection tree
The 'Detection tree' is an image of the geographic and functional conditions in a
'Site'. It is adapted to the building structure and room use. The 'Detection tree' is
independent from the line arrangement of the detector network.
'Detection tree' elements and typical representation
'Area'
Building
'Section'
Floor or staircase
'Zone'
Room
'Channel'
Logical detector function

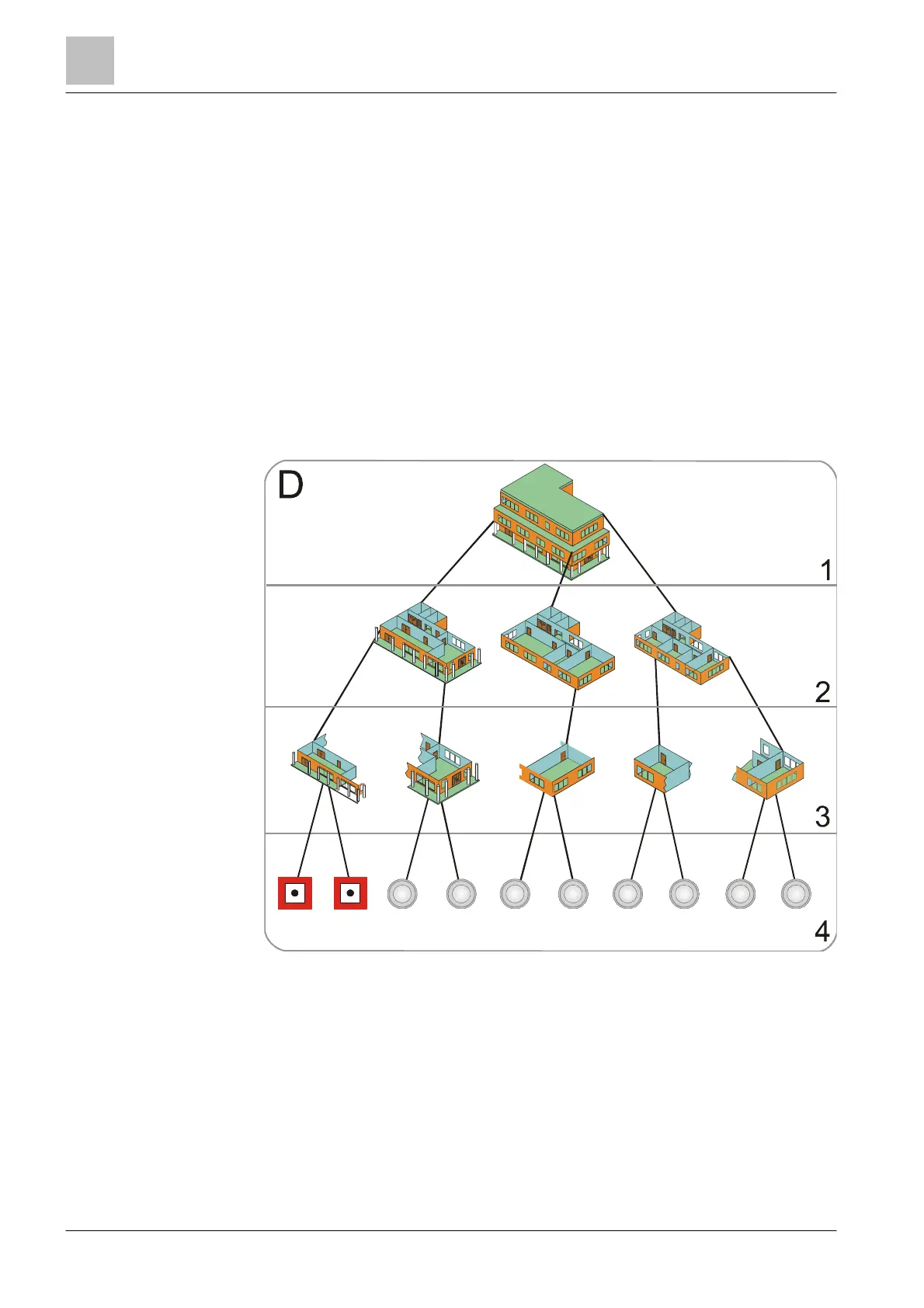

'Detection tree' example
1 'Area'
2 'Section'
3 'Zone'
4 'Channel' / 'Detector'
