9.5.4 Extinguishing control with extinguishing control unit XC10
Extinguishing is actuated and monitored by the autonomous extinguishing control
unit XC10.
An interface to the extinguishing control unit makes it possible to send
extinguishing control unit functions to the fire control panel, and to transmit
commands from the fire control panel to the extinguishing control unit.

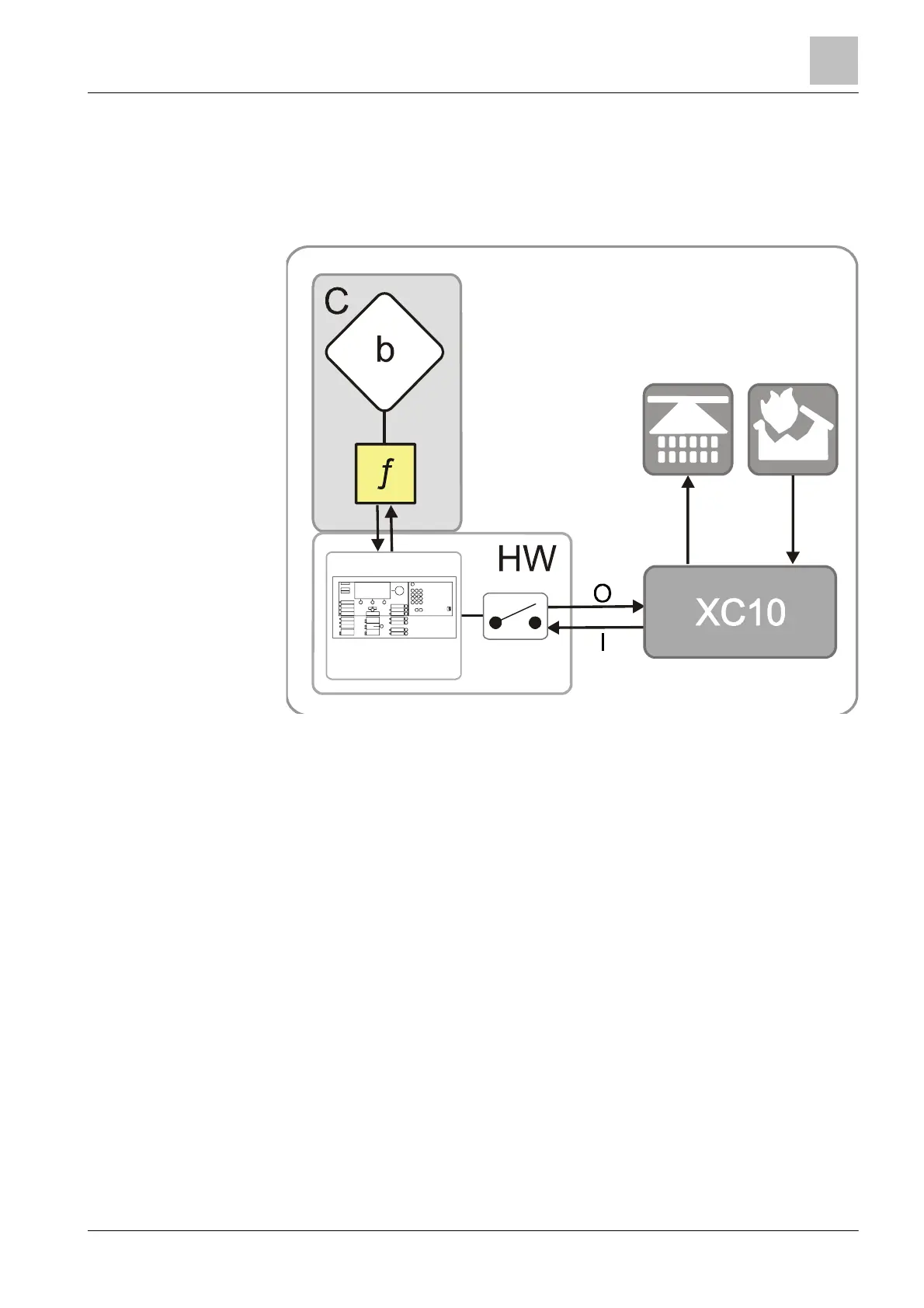

Figure 25: Information flow for extinguishing control
C Control tree XC10 Extinguishing control unit
b
Extinguishing
control group
I
Extinguishing control unit inputs:
'Extinguishing activated', 'Fault', 'Pre-alarm',
'Autom. + manual extinguishing OFF'
f
Extinguishing
control
O
Extinguishing control unit outputs: 'Reset',
'Autom. Blocking extinguishing activation,
'Autom. + manual extinguishing activation
blocked'
Detailed information can be found in the Technical Documentation of the
extinguishing control unit XC10, document ID 008399.
