9.5.2 Evacuation control
'Evac control' makes it possible to configure a complete evacuation function for
each ↑ alarm device zone, e.g., on one floor.
Two function blocks are available for each control:
● 'Alert'
– The assigning of all conditions, so that the corresponding alarm devices
transmit a warning signal.
● 'Evac'
– The assigning of all conditions, so that the corresponding alarm devices
transmit an evacuation signal.

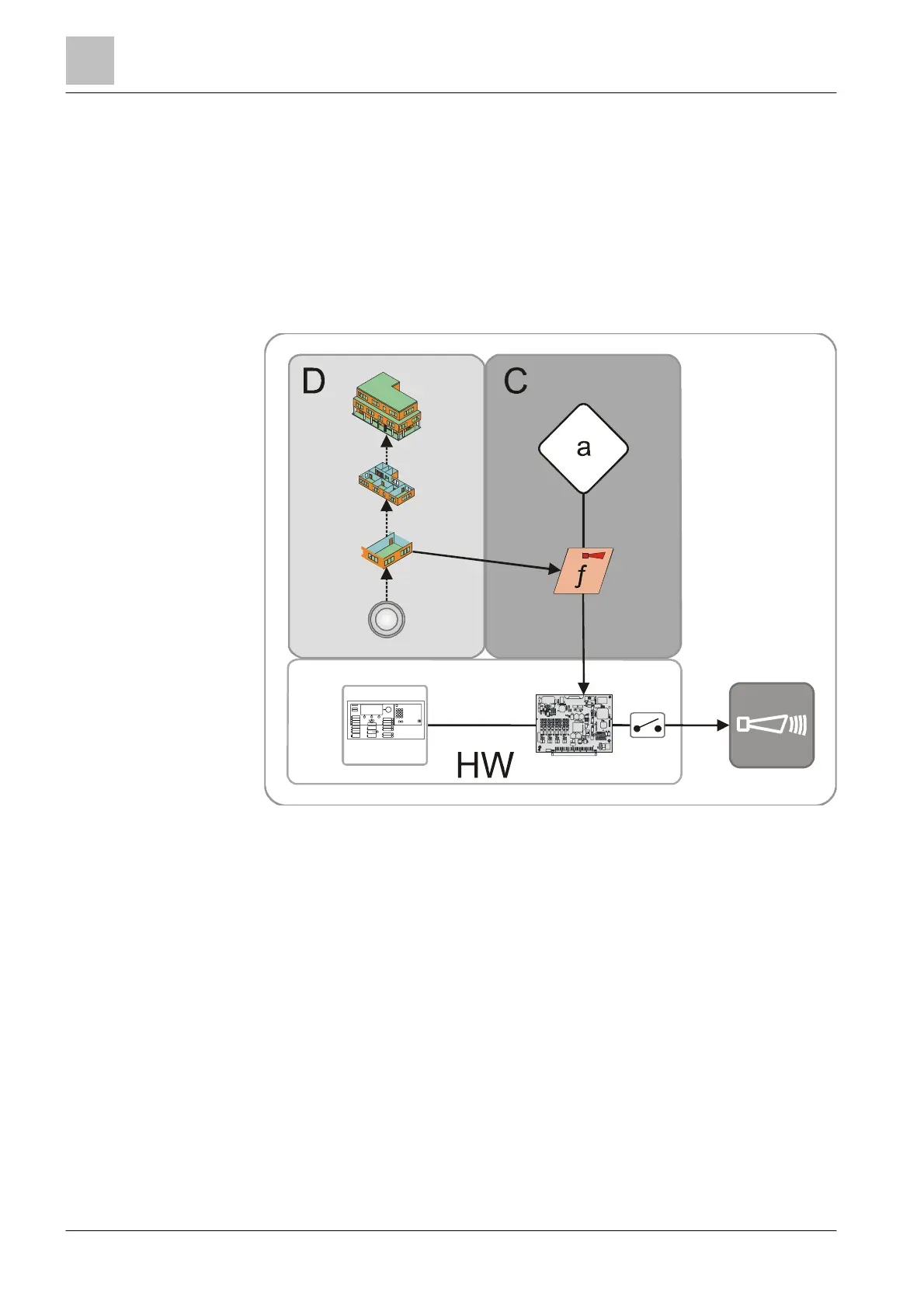

Figure 23: Information flow for evacuation control
D ↑ 'Detection tree'
C ↑ 'Control tree'
a 'Evac control group'
f 'Evac control'
HW Hardware
In 'Evac control group' two different controls are possible:
● 'Universal evac control' ('Evac')
● 'Phased evac control' ('Alert' / 'Evac')
Events from ↑ 'Station', ↑ detector line, ↑ 'Section', or 'Zone' (cause) trigger an
'Evac control'.
