9.7 Intervention concept (IC)
The fire control panel features comprehensive monitoring and self-monitoring
functions.
The different events in the system are acquired, classified into corresponding event
categories and evaluated by the ↑ 'Intervention Concept'. After the evaluation, the
'Intervention Concept' activates the corresponding alarming equipment.
Flow of information to ↑ 'IC'

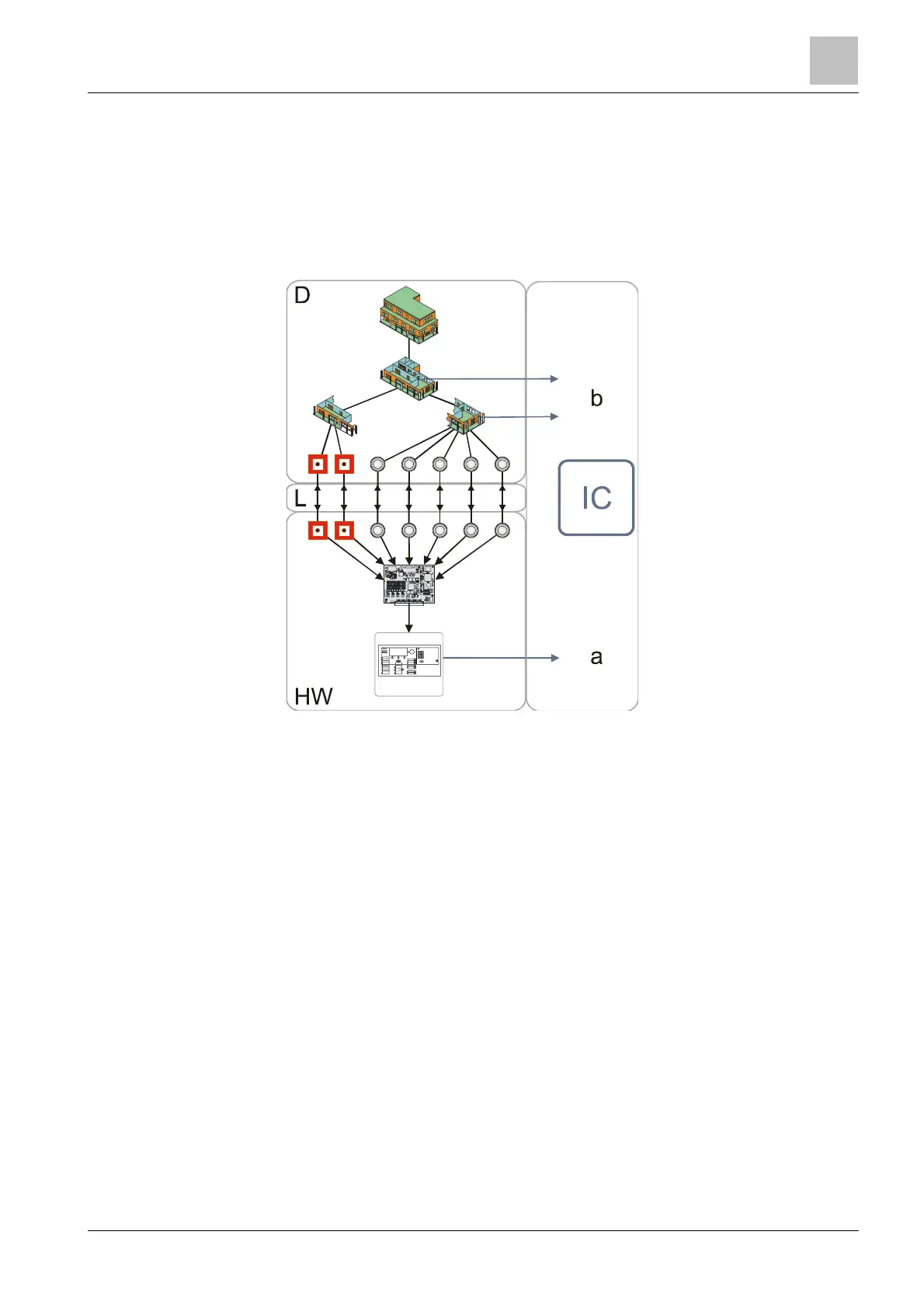

Figure 28: Information flow for intervention
D ↑ 'Detection tree'
HW ↑ 'Hardware tree'
IC ↑ 'Intervention Concept'
a Events from 'Hardware tree'
b Events from 'Detection tree' and ↑ 'Control tree'
L ↑ Link
