3 Setup of the Person Machine Interface
3.1 PMI
All ↑ stations (fire control panel or fire terminal) have an integrated operating unit.
The operating unit includes the ↑ Person Machine Interface, through which the fire
detection installation can be operated. All important information from the fire
detection installation is indicated spontaneously on the PMI or can be polled there.

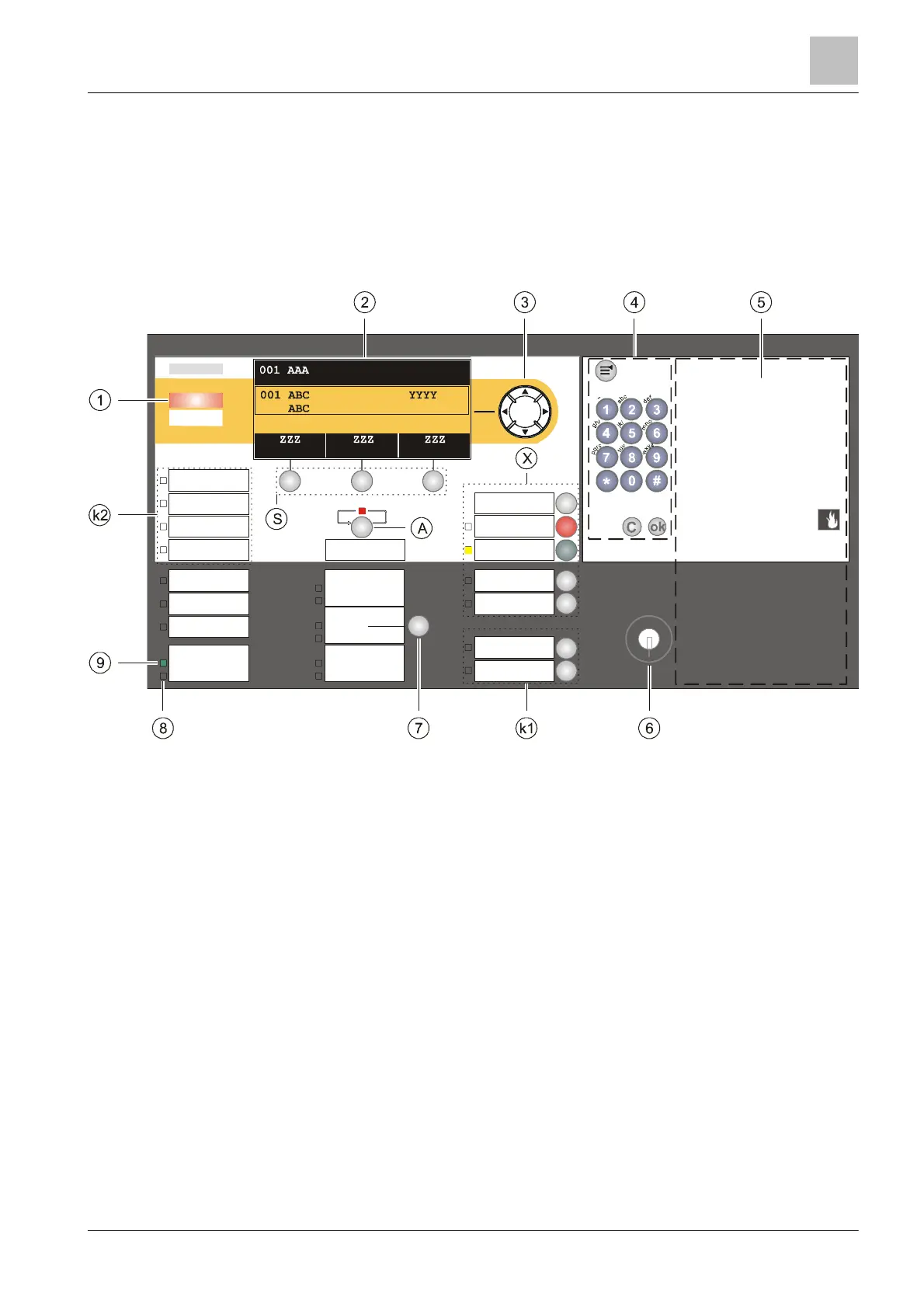

1 Alarm indicator ● Light up red in the event of an alarm
2 Display ● Event indication, e.g. type, place, status of event
● Menu, element and command indication
● Instructions may be displayed in the event of an alarm
3 Navigation buttons
● For navigation in the display for e.g. menu and command selection
and scrolling in lists.
4
Keypad with Menu key, ok key
and Cancel key
● Keypad for PIN entry (password), shortcut (menus), address entry
(element ID), parameter entry, entry of customer text
● The menu button opens the main menu
● The <ok> button can be used to run a selected command or open a
menu item. In windows with an entry field, the <ok> button moves the
cursor to the next entry.
● With the <C> cancel button, any operation sequence can be
canceled, and any open list or window can be closed.
5 Area for fitting options ● Printer
● EVAC [NL]
● LEDs
