6 - 10 Iso-center with ultrasound
• Set all slide controls all the way to the left.
• The image flip key may not be selected.
• The corresponding ultrasound probe is selected during switch-on. If there is a second
ultrasound probe, the select the probe with the key.
• Check whether the ultrasound arm is as shown in Fig. 15; if not, position it accordingly.
The long slot must be visible (1/Fig. 15).
Checking the distance: Height (16a/Fig. 16)
• Press the key.
• Move the track ball until the corss "+1" is in the center of the isocenter crosshair.
• The value displayed for "D1" (G/Fig. 16) must be between 33 and 36 mm; if not, move the
probe appropriately in the longitudinal axis.
• Press the key.
• Move the cross "+2" using the track ball onto the longitudinal axis of the target line in the
isocenter (M/Fig. 16a).
• Press the key.
• Move the cross using the track ball horizontally into the center of the white area
(16a/Fig. 16) of the isocenter phantom
• The value displayed for "D2" (H/Fig. 16) must be between 1 and 5 mm. This is only valid
for the default values, see instructions, SPL1-130.038.01...
• Press the key.

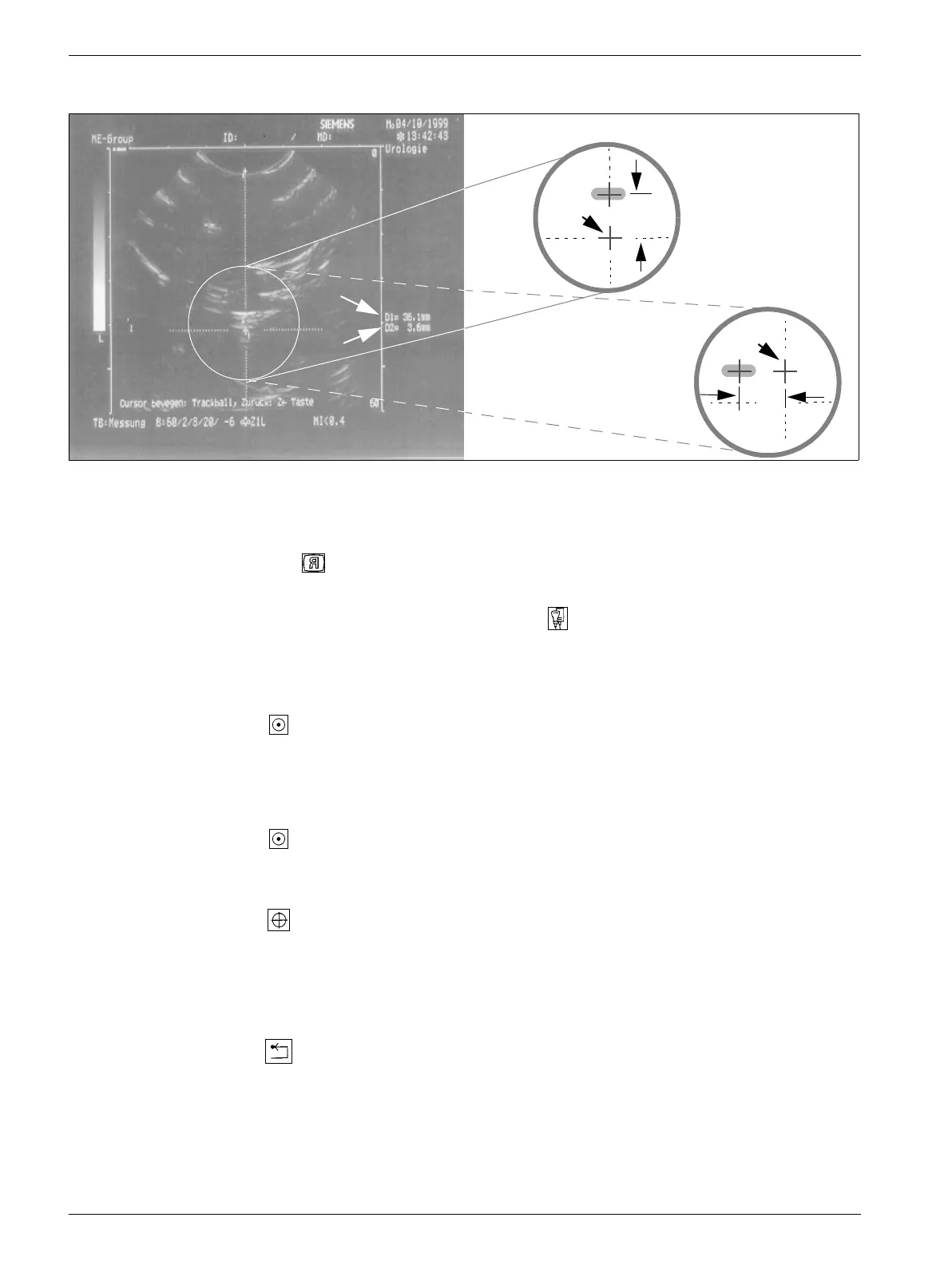

Fig. 16
A
B
C
D
E
2
Image detail sche-
matic
:
2
C
16a
16b
M
C
G
H
