The icons on the tool bar represent some of the most important functions in
the menus. With the two menu bars displayed (Figure 4-4) the tool bar is
identical but activation via the icons is not identical.
In addition a zoom bar is displayed on the left of the window. This always
indicates the % view of the SFC recipe by means of the slider scale and also
by the figures beneath it, with 1 on the scale being equivalent to 100%.
You can change the SFC view by positioning the mouse pointer on the zoom
bar slider, holding down the lefthand mouse button and then dragging the
slider in the corresponding direction (upwards makes the view smaller).
Another way is to click directly on the 1/4, 1/2, 1 and other buttons.
Recipe creation
Recipe creation
Recipe
V
iew H
elp

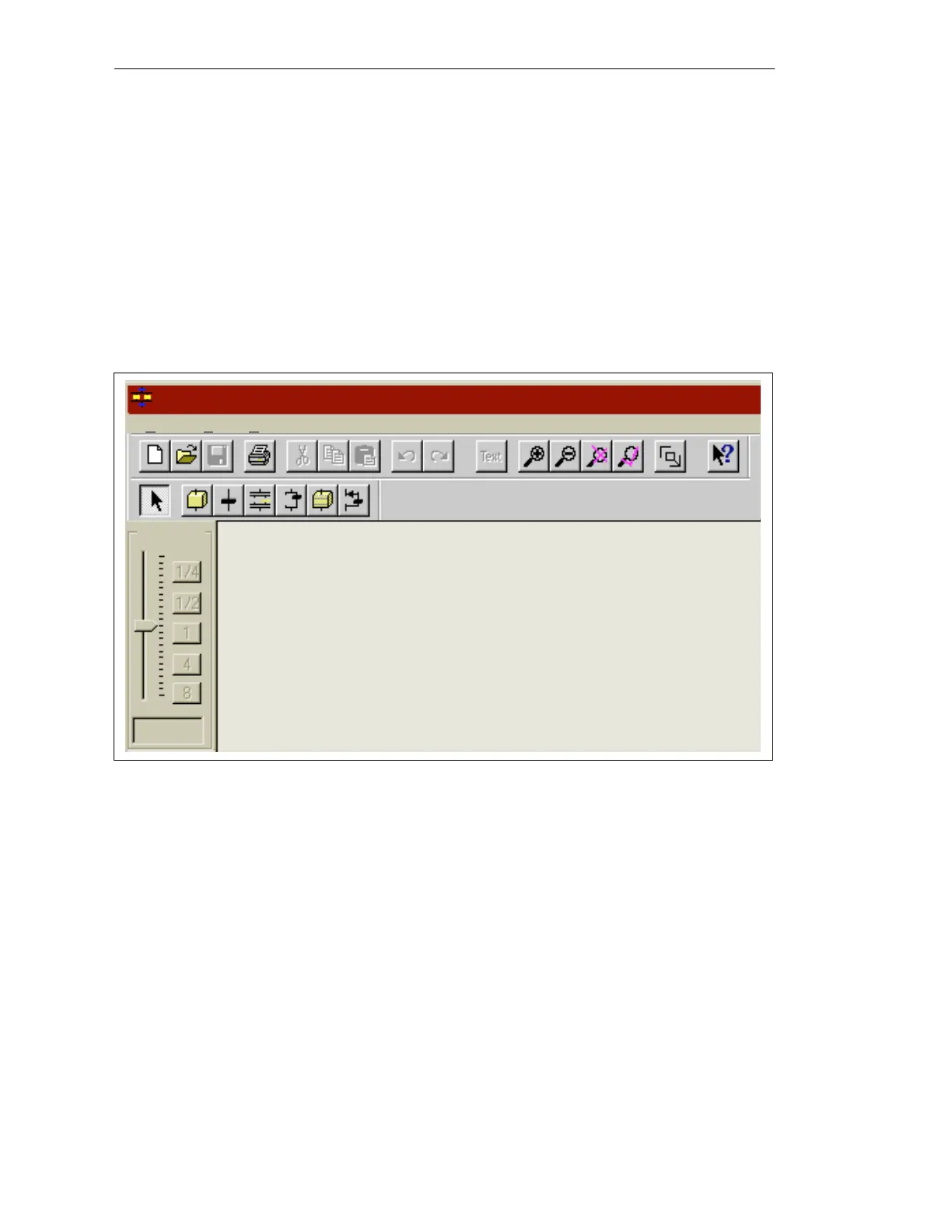

Zoom bar
90 %
Figure
4-6
Zoom bar
If a recipe has not as yet been opened, the window will be shown with the
work area empty and the menu bar will be limited to three menu titles.
If several recipes are open in the work area, the menu bar will apply to the
active recipe window – in other words, all actions made by the user in the
menus will apply to this active recipe window.
Icons on the
tool bar
Recipe creation
