1.7 User interface
BATCH flexible consists of several Windows95/NT applications. In this
chapter a description is given of the user interface and the basics of using it.
After you start recipe creation you will see a bordered window with title bar,
menu bar, tool bars and status bar as well as a workspace window (recipe
window).
Title
bar
T
ool bars
W
ork area
Status bar
Menu bar
Recipe creation
Press F1 for help.
Recipe Edit Insert View Extras Window Help
Recipe
window
Recipe1 – recipe creation
Recipe1
Start
End
Zoom
bar
R
ecipe E
dit I
nsert V
iew Ex
tras W
indow H
elp
48 %

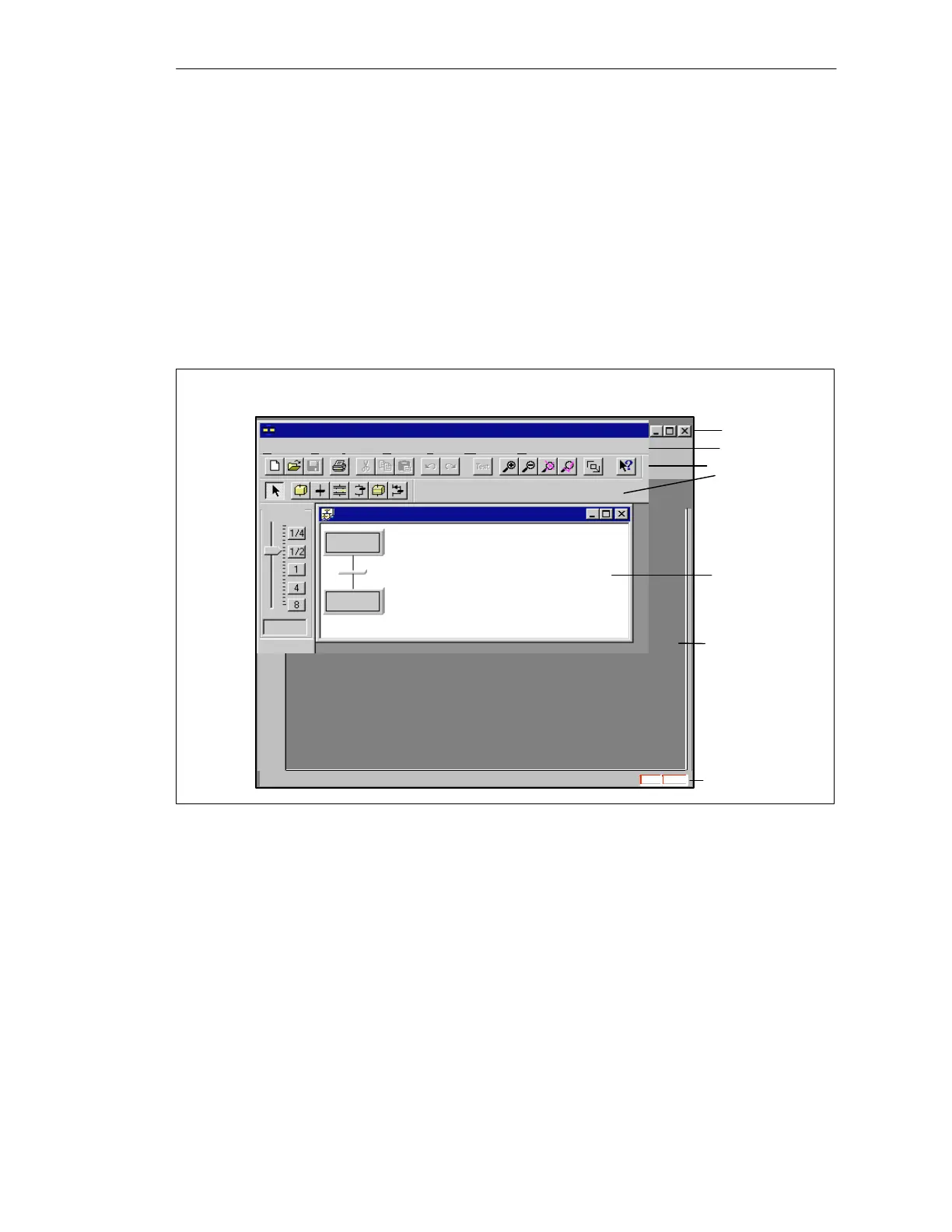

Figure 1-10
User interface for recipe creation
Within the main window you can open as many windows as you like,
depending on the capabilities of Windows 95/NT. Each window contains a
view of a recipe in SFC presentation. The window on top is the current
working window; in other words, the menu commands and the tool bar icons
affect this window.
In addition to the name of the current application the title bar contains the
usual buttons found in Windows 95/NT.
User interface
Example for
recipe creation
Windows
Title bar
