Batch flexible , Manual
C79000-G7076-C650-02

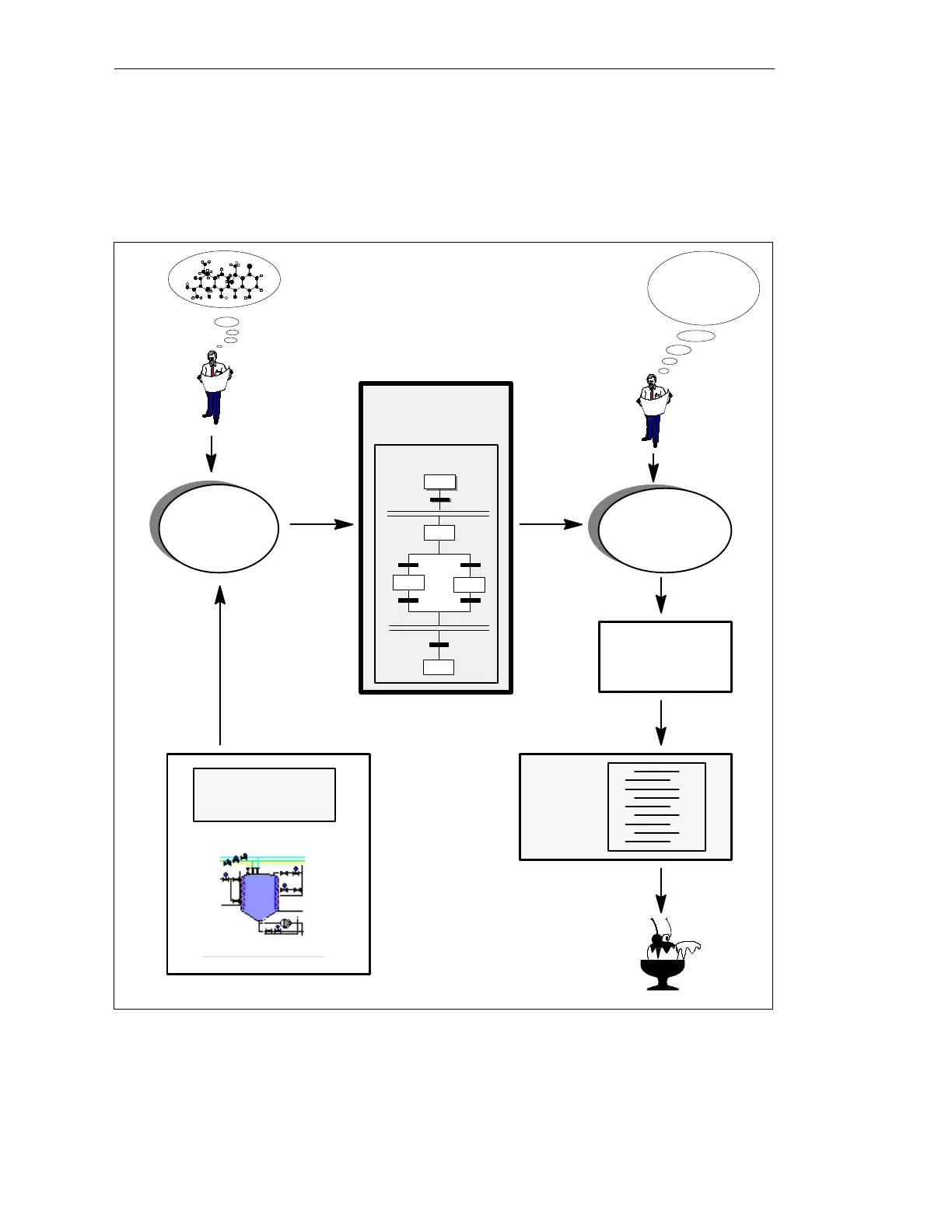

Figure 1-2 presents a schematic interpretation of the relationships between
the equipment data (in other words, the process equipment and so on which is
available for production), the recipe created with the aid of the recipe editor,
and the batch processed in batch control, up until the finished product.
Plant data
Recipe
5 t
27.07.96
Result of batch processing:
Batch
Recipe editor
Control recipe
generation
Start
End
AF
AF
AF
Control recipe
Figure 1-2 Embedding the recipe in batch processing
Relationship
between recipe
and batch
System overview
