Basics of Path Interpolation
2.5 Path interpolation types
TO Path Interpolation
Function Manual, 11/2010
25
2.5.4.4 Circular path using intermediate point and end point
(QGSRLQW
&XUUHQWSRVLWLRQ
,QWHUPHGLDWHSRLQW
&RRUGLQDWH
&RRUGLQDWH

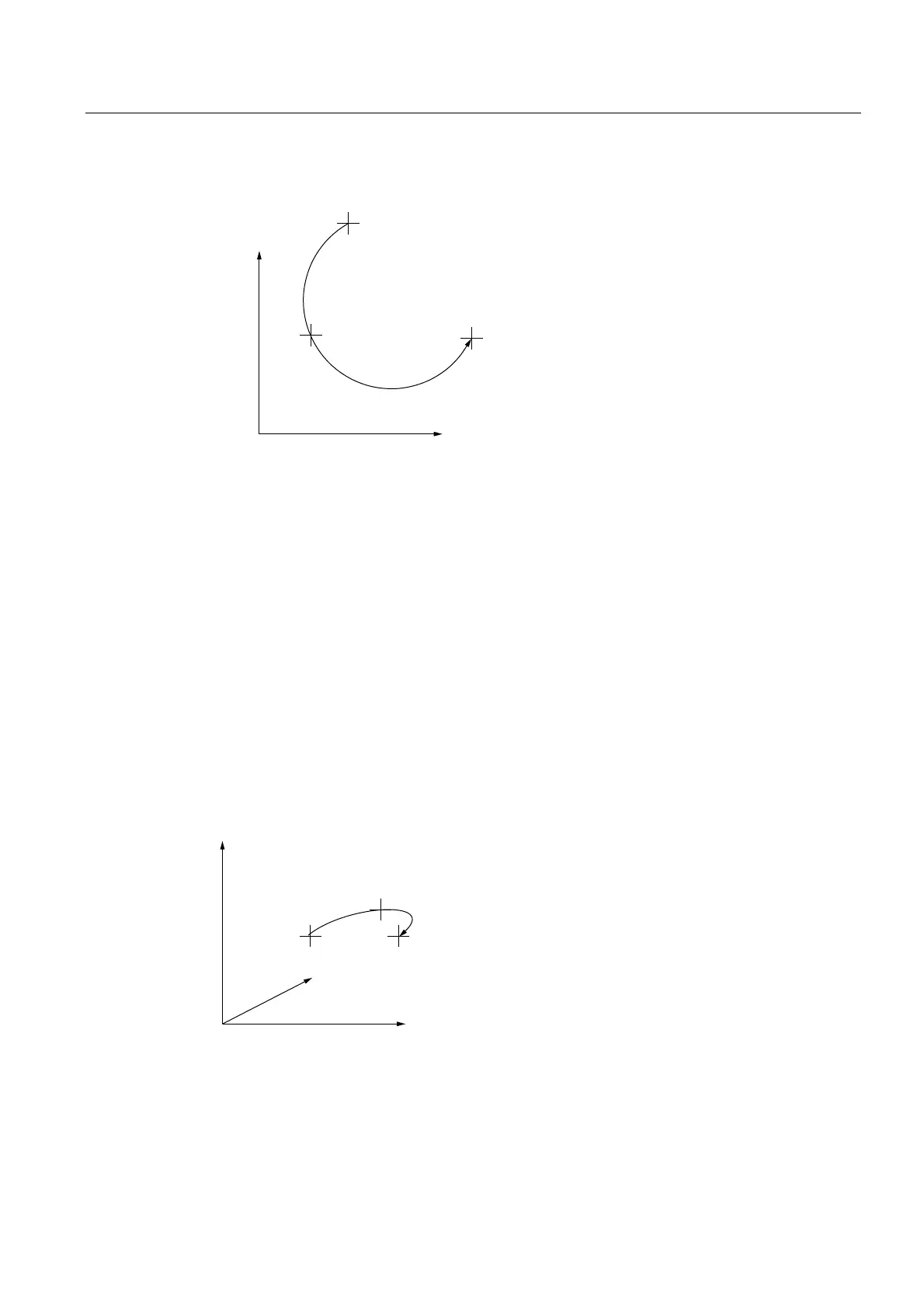

Figure 2-13 Circular path with intermediate and end points
To perform circular interpolation starting from the current position over an intermediate point
to the end point, you set circularType:=OVER_POSITION_TO_ENDPOSITION in the
_movePathCircular() command.
The current position, intermediate point, and end point specify the plane for the circular path.
The end point position is entered in the x, y, and z parameters.
The intermediate point is entered in the i, j, and k parameters.
You use the ijkMode parameter to set whether the intermediate point coordinates are to be
evaluated absolutely or relative to the start point or according to the setting in pathMode of
the end point.
Example of a circular path with intermediate point and end point
In this example, the end point of the circle is separated by 10 units from the current position
in the X-direction. Each intermediate point is separated by 5 units in the X-, Y- and Z-
direction from the current position.
[
\
]
&XUUHQW
SRVLWLRQ
(QGSRLQW
,QWHUPHGLDWHSRLQW
Figure 2-14 Example of a circular path with intermediate and end points
