Siemens SIMOTION Function Manual

Sample Project for the Path Interpolation
4.7 Setting the default settings of the path object
TO Path Interpolation
104 Function Manual, 11/2010
Parameterize the interconnections of the path object as follows:
● 1. Path axis: Axis_Z
● 2. Path axis: Axis_X

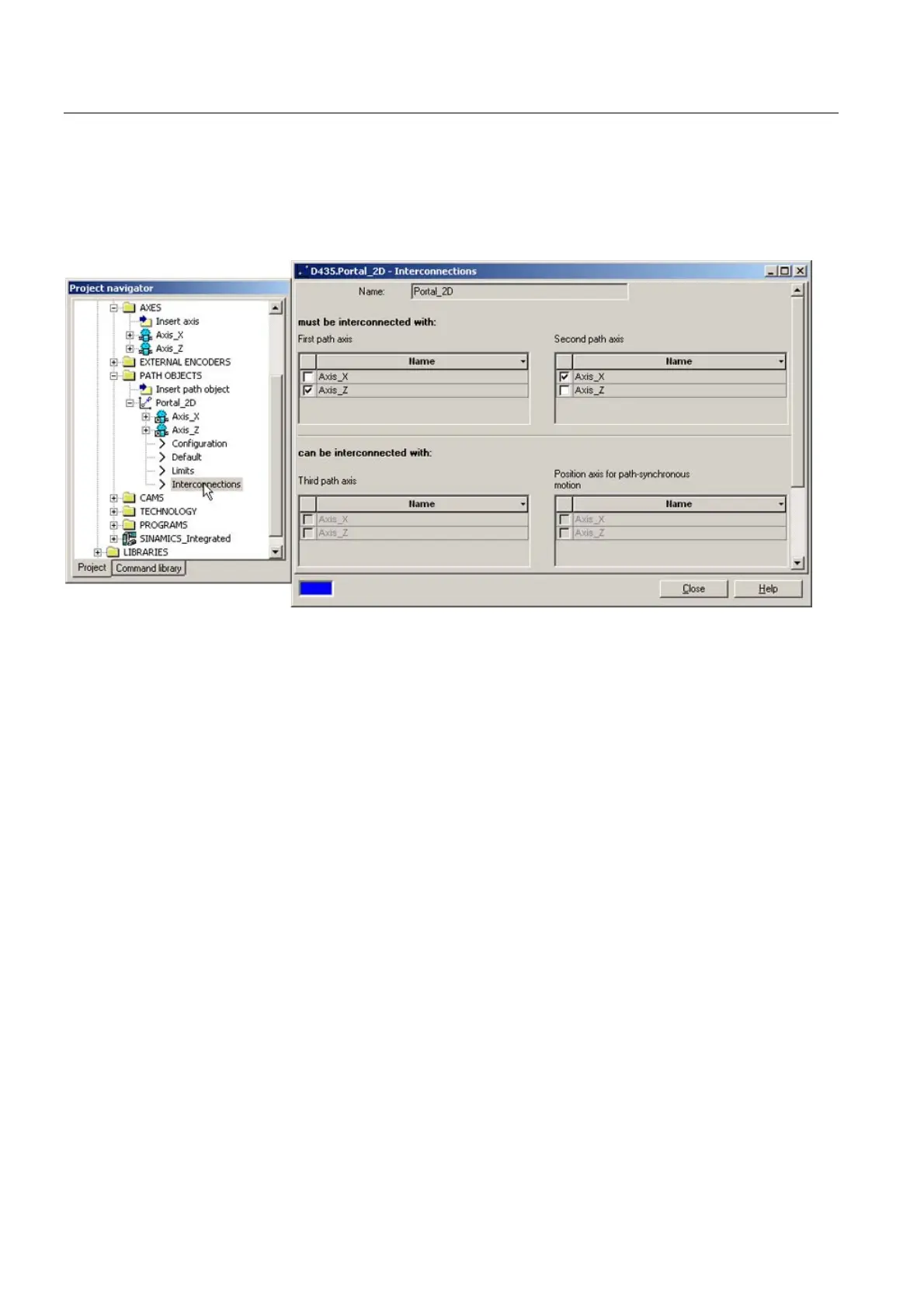

Figure 4-11 Interconnecting a path object
4.7 Setting the default settings of the path object
The settings described below must be made for the default of the path object.
How to set the defaults for the path object:
1. For the path object, click Default.
