Configuring the Path Object
3.8 Interconnecting a path object
TO Path Interpolation
92 Function Manual, 11/2010
3.8 Interconnecting a path object
● In the project navigator, double-click Interconnections under the object.

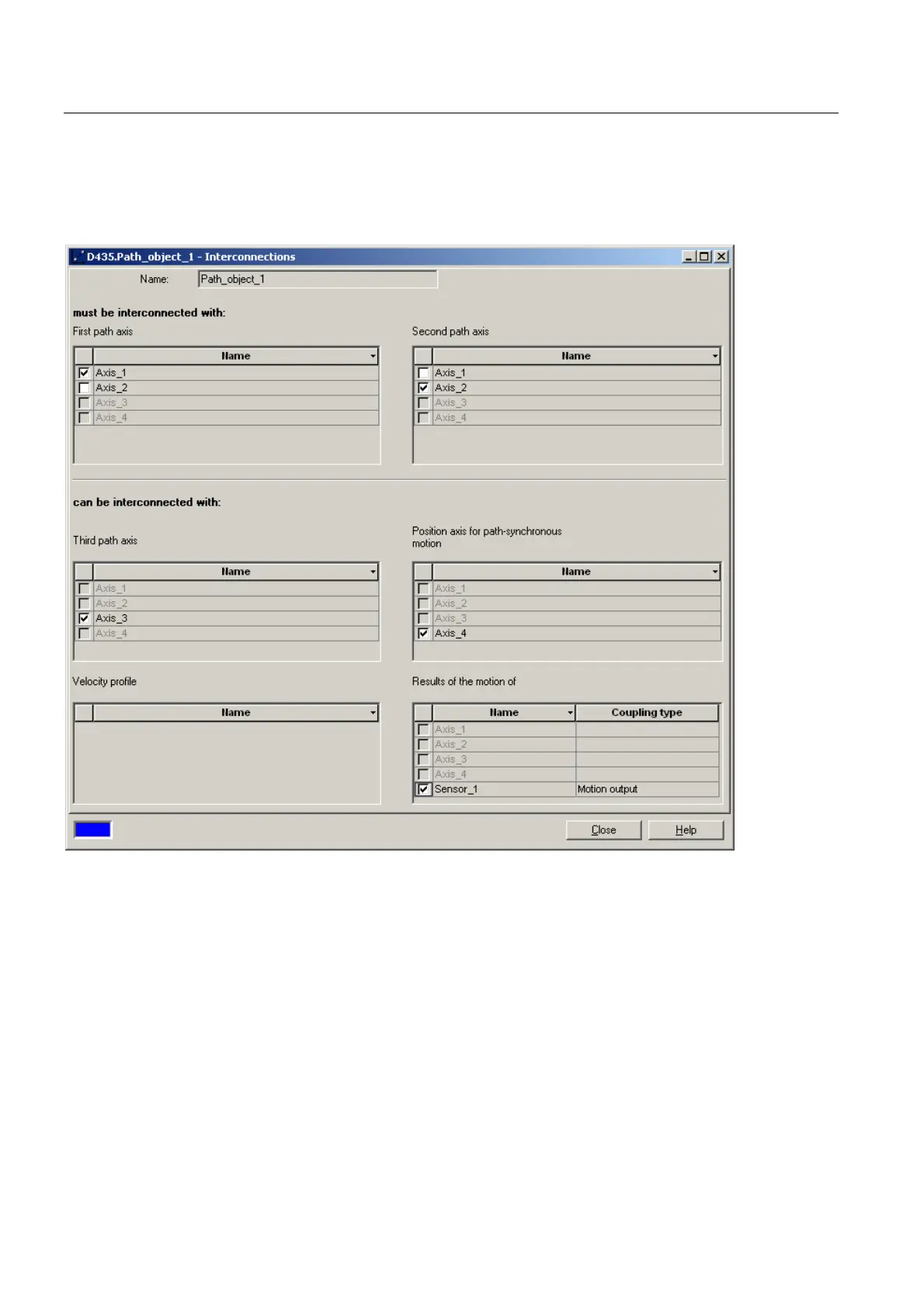

Figure 3-9 Interconnecting a path object
In this window, you interconnect the outputs of the path object with the path axes or with a
positioning axis. (The objects must have already been created.)
Place a check mark beside the required objects.
A path object must be interconnected with at least two path axes.
The following connectors of the path object must be interconnected:
● Path axis 1: with a path axis
● Path axis 2: with a path axis
