Siemens SINAMICS G120C DP User Manual

6HWSRLQW
S
S
Q

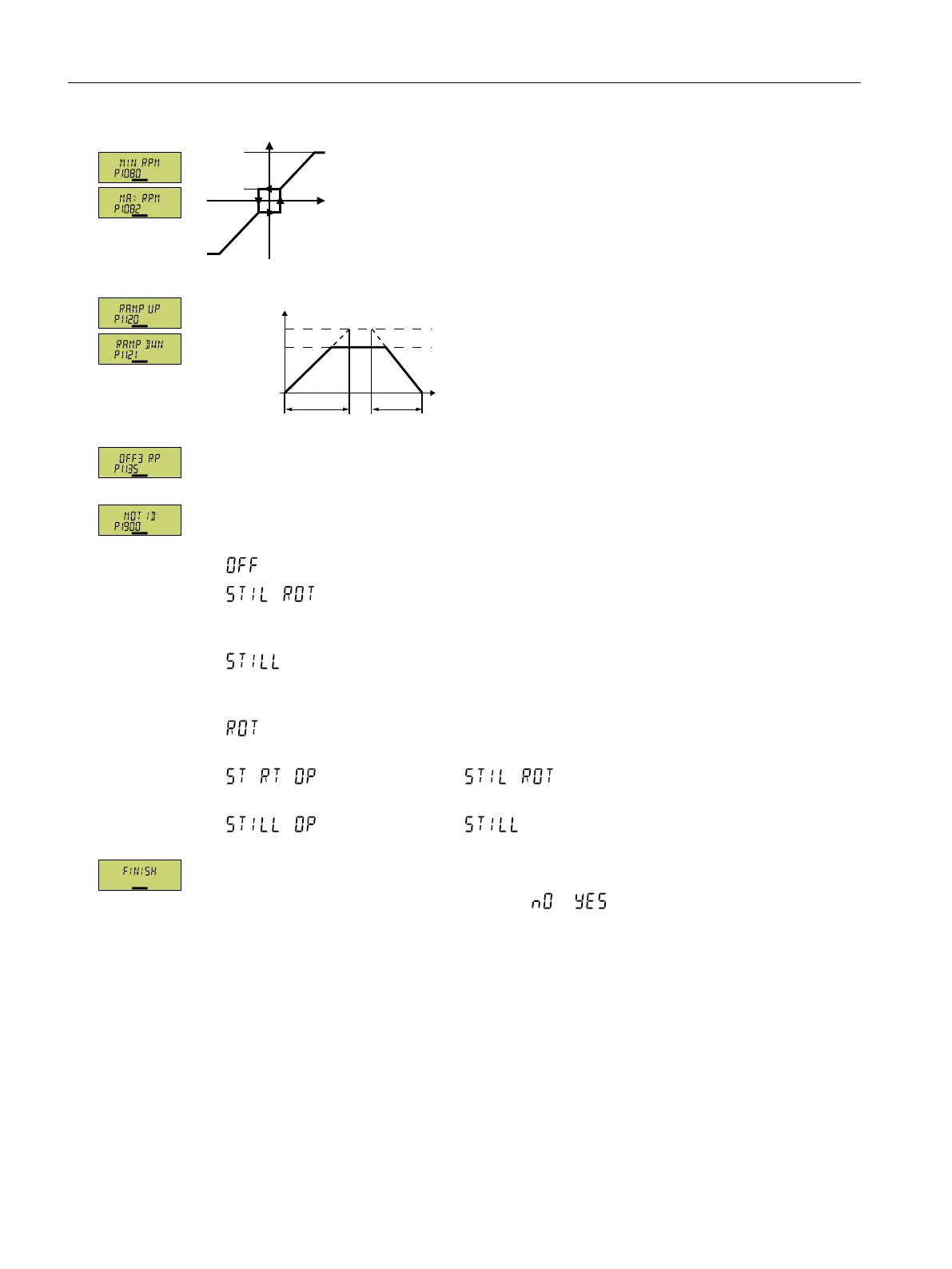

Figure5-7 Minimum and maximum motor speed
Q
6HWSRLQW
S
S
W
Q
PD[
S
Figure5-8 Ramp-up and ramp-down time of the motor
Ramp-down time after the OFF3 command
Motor data identi󹪝cation: Select the method which the converter uses to measure the data of
the connected motor:
• : Motor data is not measured
• : Recommended setting: Measure the motor data at standstill and with the
motor rotating.
The converter switches o󹪜 the motor after the motor data identi󹪝cation has been completed.
• : Default setting: Measure the motor data at standstill.
The converter switches o󹪜 the motor after the motor data identi󹪝cation has been completed.
Select this setting if the motor cannot rotate freely.
• : Measure the motor data while the motor is rotating.
The converter switches o󹪜 the motor after the motor data identi󹪝cation has been completed.
• : Setting the same as
After the motor data identi󹪝cation, the motor accelerates to the current setpoint.
• : Setting the same as
After the motor data identi󹪝cation, the motor accelerates to the current setpoint.
Complete the data entry for quick commissioning as follows:
1. Switch over the display using an arrow key: →
2. Press the OK key.
You have entered all of the data that is necessary for the quick commissioning of the
converter.
❒
Commissioning
5.4Quick commissioning using the BOP-2 operator panel
SINAMICS G120C Converters
132 Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK

Siemens SINAMICS G120C DP Specifications

General

Protection Rating	IP20
Frequency Range	0 to 650 Hz
Control Modes	V/f, sensorless vector control
Communication Interfaces	PROFIBUS DP
Ambient Temperature	-10 to +50 °C (without derating), -10 to +60 °C (with derating)
Overload Capacity	150 % rated current for 60 s, 200 % rated current for 3 s
Storage Temperature	-40 to +70 °C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Output Voltage	0 V to Supply Voltage
