Siemens SINAMICS G120C DP User Manual

p1020 p1021 p1022 p1023 Resulting setpoint
1 0 0 1 p1001 + p1004
0 1 0 1 p1002 + p1004
1 1 0 1 p1001 + p1002 + p1004
0 0 1 1 p1003 + p1004
1 0 1 1 p1001 + p1003 + p1004
0 1 1 1 p1002 + p1003 + p1004
1 1 1 1 p1001 + p1002 + p1003 + p1004

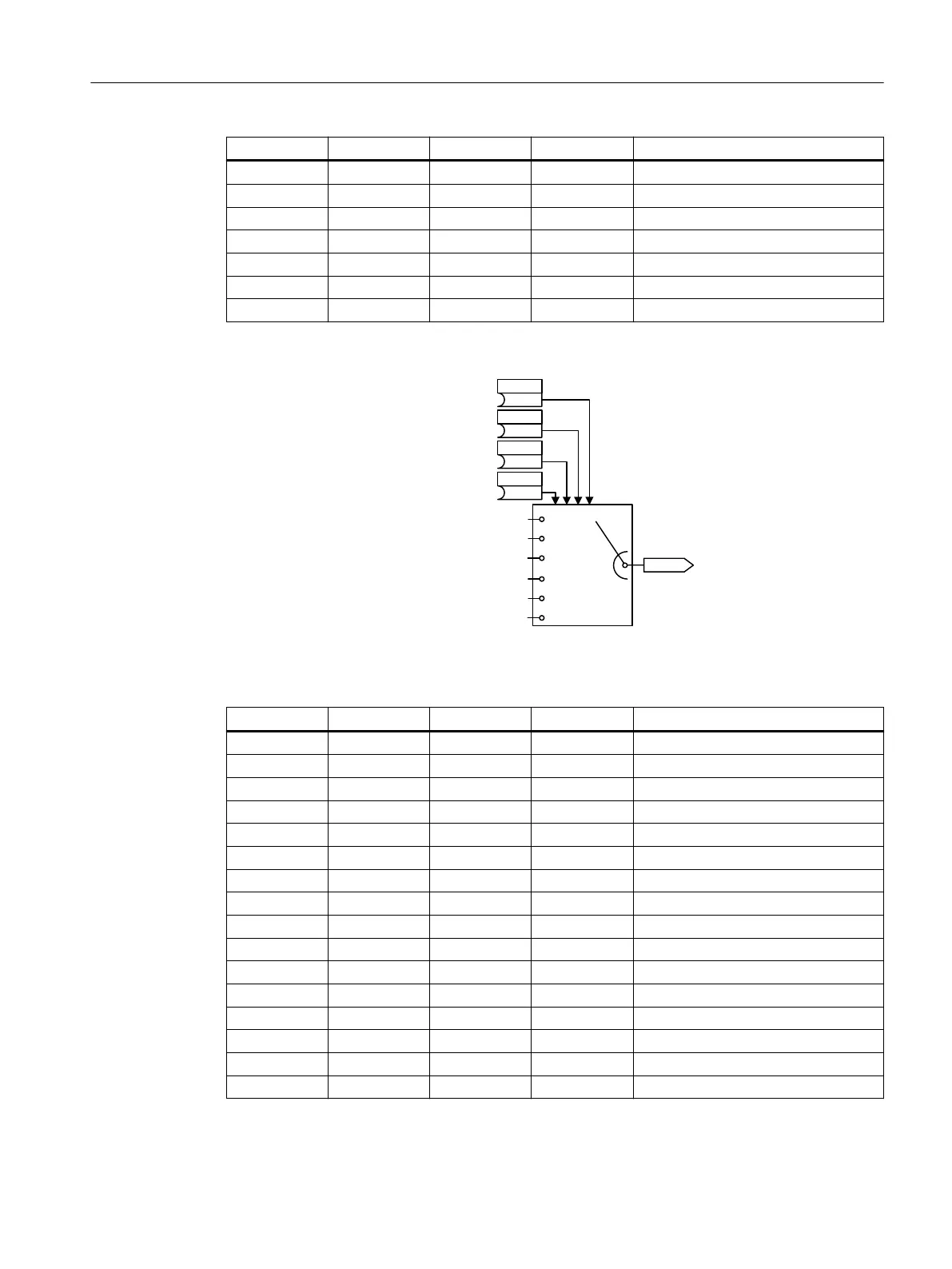

Selecting the 󹪝xed speed setpoint, binary
)L[HGVSHHGVHWSRLQWVHOHFWLRQELW
)L[HGVSHHGVHWSRLQWVHOHFWLRQELW
)L[HGVSHHGVHWSRLQWVHOHFWLRQELW
)L[HGVSHHGVHWSRLQWVHOHFWLRQELW

)L[HGVSHHGVHWSRLQW
)L[HGVSHHGVHWSRLQW
)L[HGVSHHGVHWSRLQWHIIHFWLYH
)L[HGVSHHGVHWSRLQW
)L[HGVSHHGVHWSRLQW
)L[HGVSHHGVHWSRLQW
U



S
S
S
S

S
S
S


S
S

Figure8-39 Binary selection of the 󹪝xed speed setpoint
Table 8-46 Resulting setpoint
p1020 p1021 p1022 p1023 Resulting setpoint
0 0 0 0 0
1 0 0 0 p1001
0 1 0 0 p1002
1 1 0 0 p1003
0 0 1 0 p1004
1 0 1 0 p1005
0 1 1 0 p1006
1 1 1 0 p1007
0 0 0 1 p1008
1 0 0 1 p1009
0 1 0 1 p1010
1 1 0 1 p1011
0 0 1 1 p1012
1 0 1 1 p1013
0 1 1 1 p1014
1 1 1 1 p1015
Advanced commissioning
8.17Setpoints
SINAMICS G120C Converters
Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK 277

Siemens SINAMICS G120C DP Specifications

General

Protection Rating	IP20
Frequency Range	0 to 650 Hz
Control Modes	V/f, sensorless vector control
Communication Interfaces	PROFIBUS DP
Ambient Temperature	-10 to +50 °C (without derating), -10 to +60 °C (with derating)
Overload Capacity	150 % rated current for 60 s, 200 % rated current for 3 s
Storage Temperature	-40 to +70 °C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Output Voltage	0 V to Supply Voltage
