Parameter Description

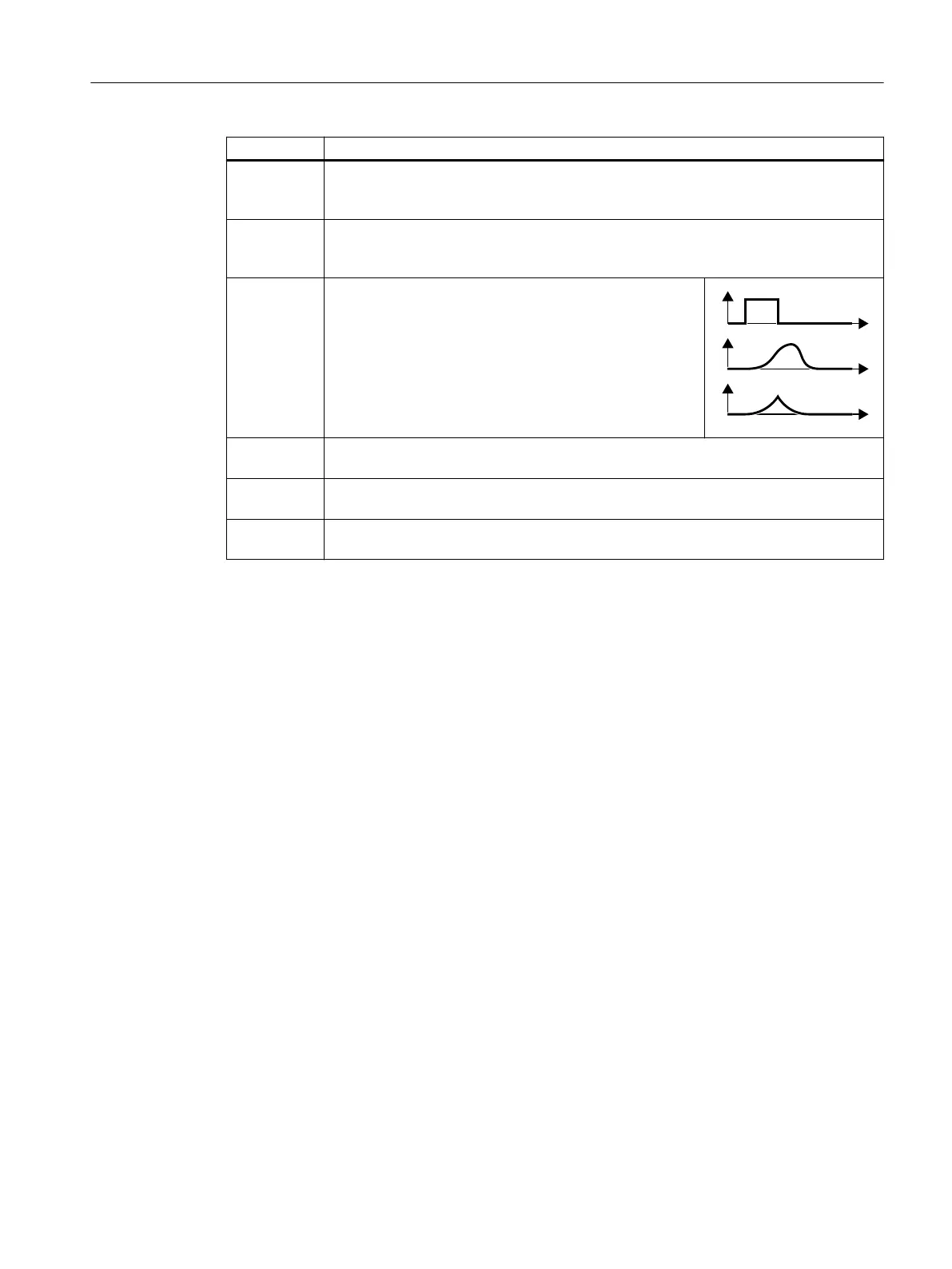

p1130 Ramp-function generator initial rounding time (factory setting: 0s)
Initial rounding for the extended ramp-function generator. The value applies for ramp up
and ramp down.
p1131 Ramp-function generator 󹪝nal rounding time (factory setting: 0s)
Final rounding for the extended ramp-function generator. The value applies for ramp up
and ramp down.
p1134 Ramp-function rounding type (factory setting: 0)
0: Continuous smoothing
1: Discontinuous smoothing
[
W
W
W
\
\
S 
S 
p1135 OFF3 ramp-down time (factory setting: 0s)
The quick stop (OFF3) has its own ramp-down time.
p1136 OFF3 initial rounding time (factory setting: 0s)
Initial rounding for OFF3 for the extended ramp-function generator.
p1137 OFF3 󹪝nal rounding time (factory setting: 0s)
Final rounding for OFF3 for the extended ramp-function generator
You can 󹪝nd more information in function diagram 3070 and in the parameter list of the List
Manual.
Setting the extended ramp-function generator
Procedure
1. Enter the highest possible speed setpoint.
2. Switch on the motor.
3. Evaluate your drive response.
– If the motor accelerates too slowly, then reduce the ramp-up time.
An excessively short ramp-up time means that the motor will reach its current limiting
when accelerating, and will temporarily not be able to follow the speed setpoint. In this
case, the drive exceeds the set time.
– If the motor accelerates too fast, then extend the ramp-up time.
– Increase the initial rounding if the acceleration is jerky.
– In most applications, it is su󹪟cient when the 󹪝nal rounding is set to the same value as the
initial rounding.
4. Switch o󹪜 the motor.
Advanced commissioning
8.18Setpoint processing
SINAMICS G120C Converters
Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK 287

Siemens SINAMICS G120C DP Specifications

General

Protection Rating	IP20
Frequency Range	0 to 650 Hz
Control Modes	V/f, sensorless vector control
Communication Interfaces	PROFIBUS DP
Ambient Temperature	-10 to +50 °C (without derating), -10 to +60 °C (with derating)
Overload Capacity	150 % rated current for 60 s, 200 % rated current for 3 s
Storage Temperature	-40 to +70 °C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Output Voltage	0 V to Supply Voltage
