DC braking when falling below a starting speed
'&EUDNLQJDFWLYH
'&EUDNLQJDFWLYDWLRQ
'HPDJQHWL]LQJWKH
PRWRU
6SHHGDWWKHVWDUWRI'&
EUDNLQJ
'&EUDNLQJGXUDWLRQ
Q
S
U
S
W
W
W
S
S

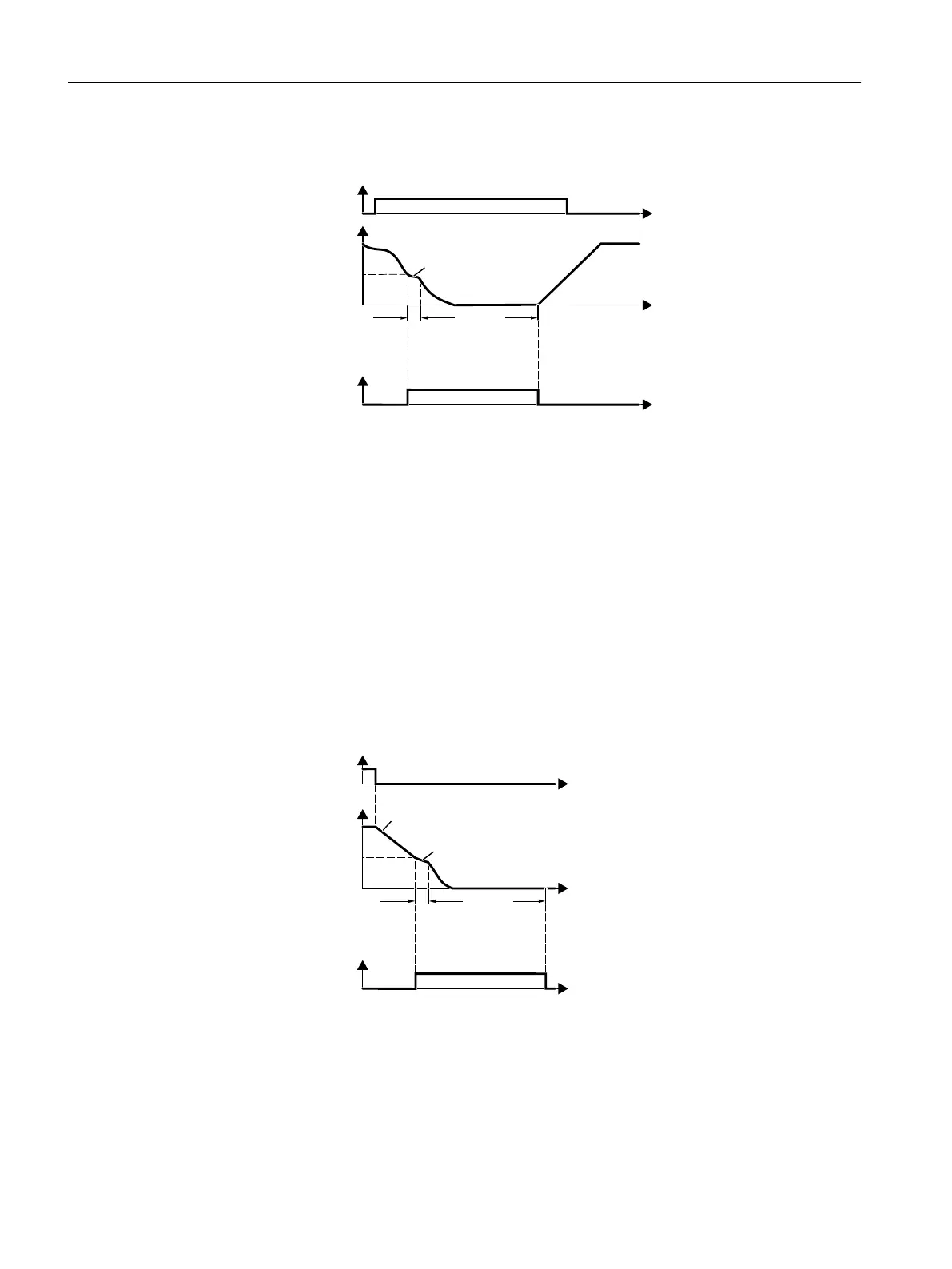

Figure8-62 DC braking when falling below a starting speed
Set p1231=14 and p1230=control command.
With an active DC braking command (p1230 = 1 signal), the following occurs:
1. If motor speed < starting speed p1234:
The converter de-energizes the motor for the motor de-excitation time p0347 in order to
demagnetize the motor.
2. The converter activates the DC braking.
3. The drive switches back to normal operation if at least one of the following conditions has
been ful󹪝lled:
– "DC braking duration" p1233 has expired.
– The DC braking command is inactive (p1230 = 0 signal).
DC braking when the motor is switched o󹪜
'&EUDNLQJDFWLYH
2))RU2))
'HPDJQHWL]LQJWKH
PRWRU
2))RU2))
6SHHGDWWKHVWDUWRI'&
EUDNLQJ
'&EUDNLQJGXUDWLRQ
Q
S
U
S
S
W
W
W
Figure8-63 DC braking when the motor is switched o󹪜
Set p1231=5.
