For installation altitudes 2000 m ... 4000m above sea level, the following applies:
Connection to a TN line system with grounded neutral point is permissible.
TN systems with grounded line conductor are not permitted.
The TN line system with grounded neutral point can also be supplied using an isolation
transformer.
The phase-to-phase voltage does not have to be reduced.

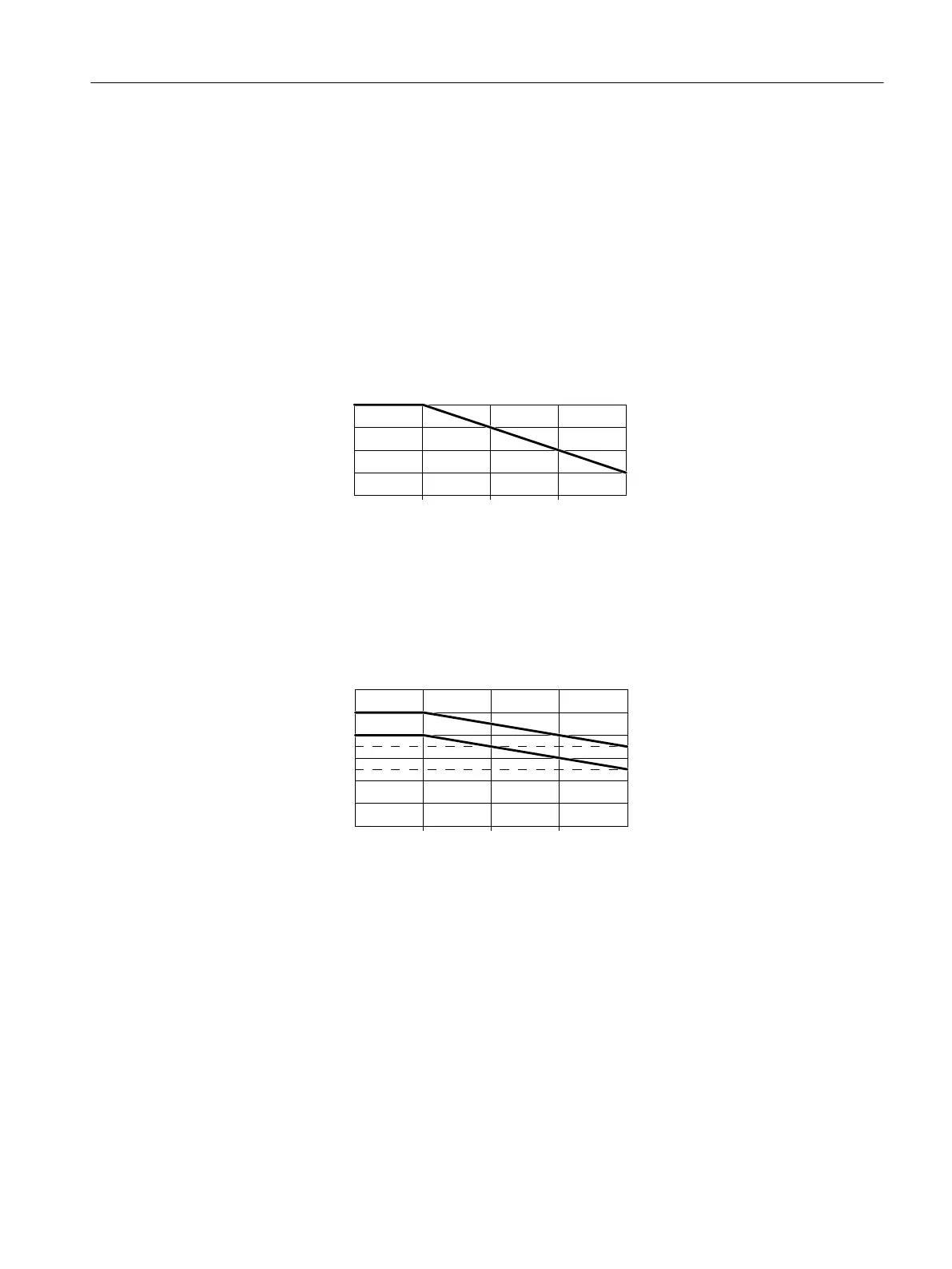

Current derating as a function of the installation altitude
The permissible converter output current is reduced above an installation altitude of 1000m.
,QVWDOODWLRQDOWLWXGH>P@
2XWSXWFXUUHQW
>@





Figure11-2 Current derating as a function of the installation altitude
Temperature reduction as a function of the installation altitude
The permissible converter ambient temperature is reduced above an installation altitude of
1000m.
,QVWDOODWLRQDOWLWXGH>P@
$PELHQW
WHPSHUDWXUH>r&@
+LJKRYHUORDG
/RZRYHUORDG







Figure11-3 Temperature reduction as a function of the installation altitude
Technical data
11.8Restrictions for special ambient conditions
SINAMICS G120C Converters
Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK 433
