Maximum current at low speeds
NOTICE
Negative impact on the converter service life as a result of overheating.
Loading the converter with a high output current and at the same time with a low output
frequency can cause the current-conducting components in the converter to overheat.
Excessively high temperatures can damage the converter or have a negative impact on the
converter service life.
• Never operate the converter continuously with an output frequency = 0Hz.
• Only operate the converter in the permissible operating range.
&RQWLQXRXVRSHUDWLRQ
6SRUDGLFVKRUWWLPHGXW\
6KRUWWLPHGXW\
2XWSXWIUHTXHQF\>+]@
3HUPLVVLEOH
RXWSXWFXUUHQW
>@










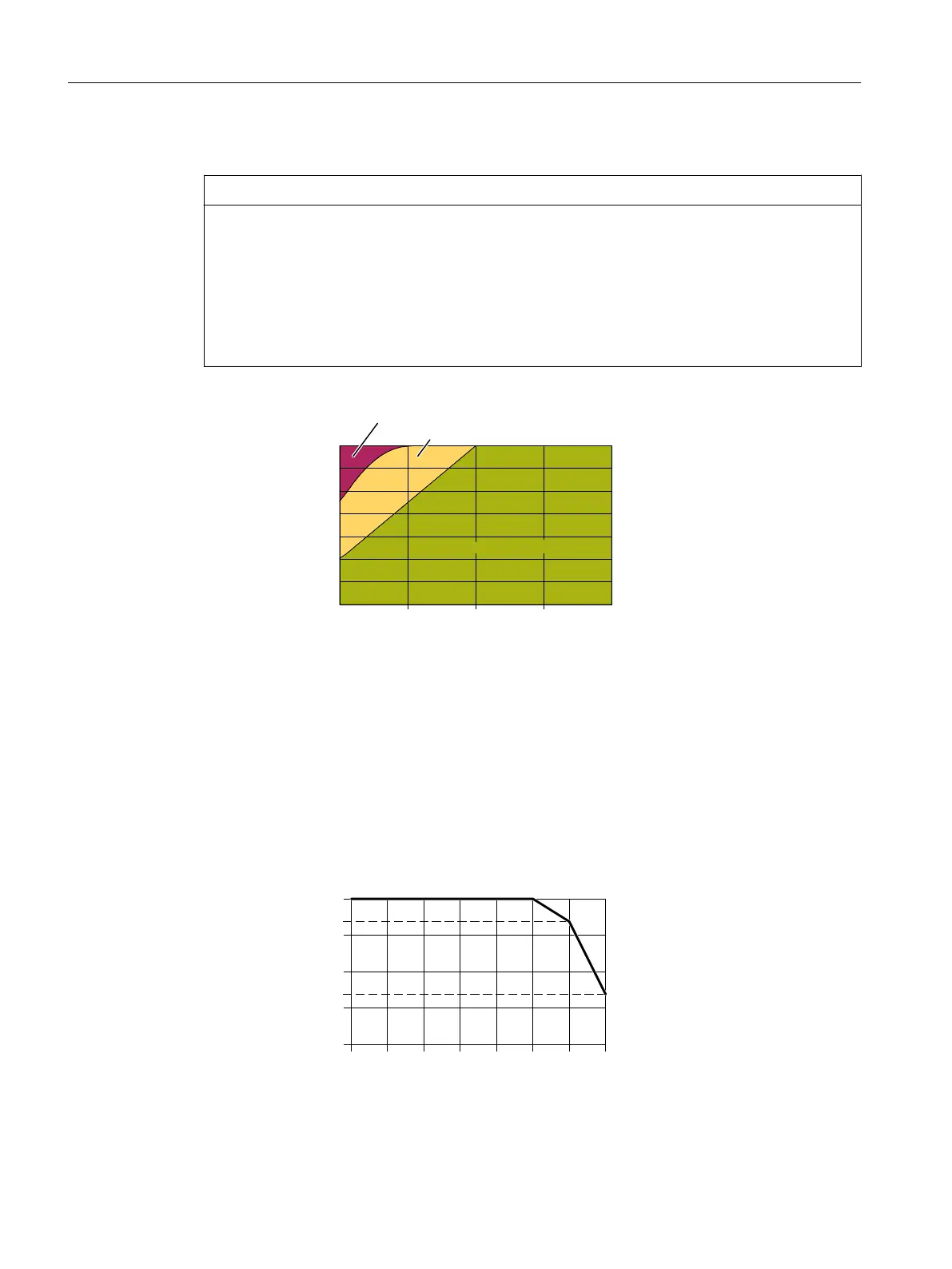

Figure11-4 Permissible operating range of the converter
• Continuous operation:
Operating state that is permissible for the complete operating time.
• Short-time duty:
Operating state that is permissible for less than 2% of the operating time.
• Sporadic short-time duty:
Operating state that is permissible for less than 1% of the operating time.
Derating as a function of the ambient temperature
$PELHQWWHPSHUDWXUH>r&@
2XWSXWFXUUHQW>@










Figure11-5 Permissible output current as a function of the ambient temperature, FSAA…FSC
Technical data
11.8Restrictions for special ambient conditions
SINAMICS G120C Converters
434 Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK

Siemens SINAMICS G120C DP Specifications

General

Protection Rating	IP20
Frequency Range	0 to 650 Hz
Control Modes	V/f, sensorless vector control
Communication Interfaces	PROFIBUS DP
Ambient Temperature	-10 to +50 °C (without derating), -10 to +60 °C (with derating)
Overload Capacity	150 % rated current for 60 s, 200 % rated current for 3 s
Storage Temperature	-40 to +70 °C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Output Voltage	0 V to Supply Voltage
