Setup
3.1 Punching and nibbling tools
3-36
SINUMERIK 802D sl Operation and Programming Nibbling (BP-N), 06/2006 Edition
6FC5 398-3CP10-0BA0

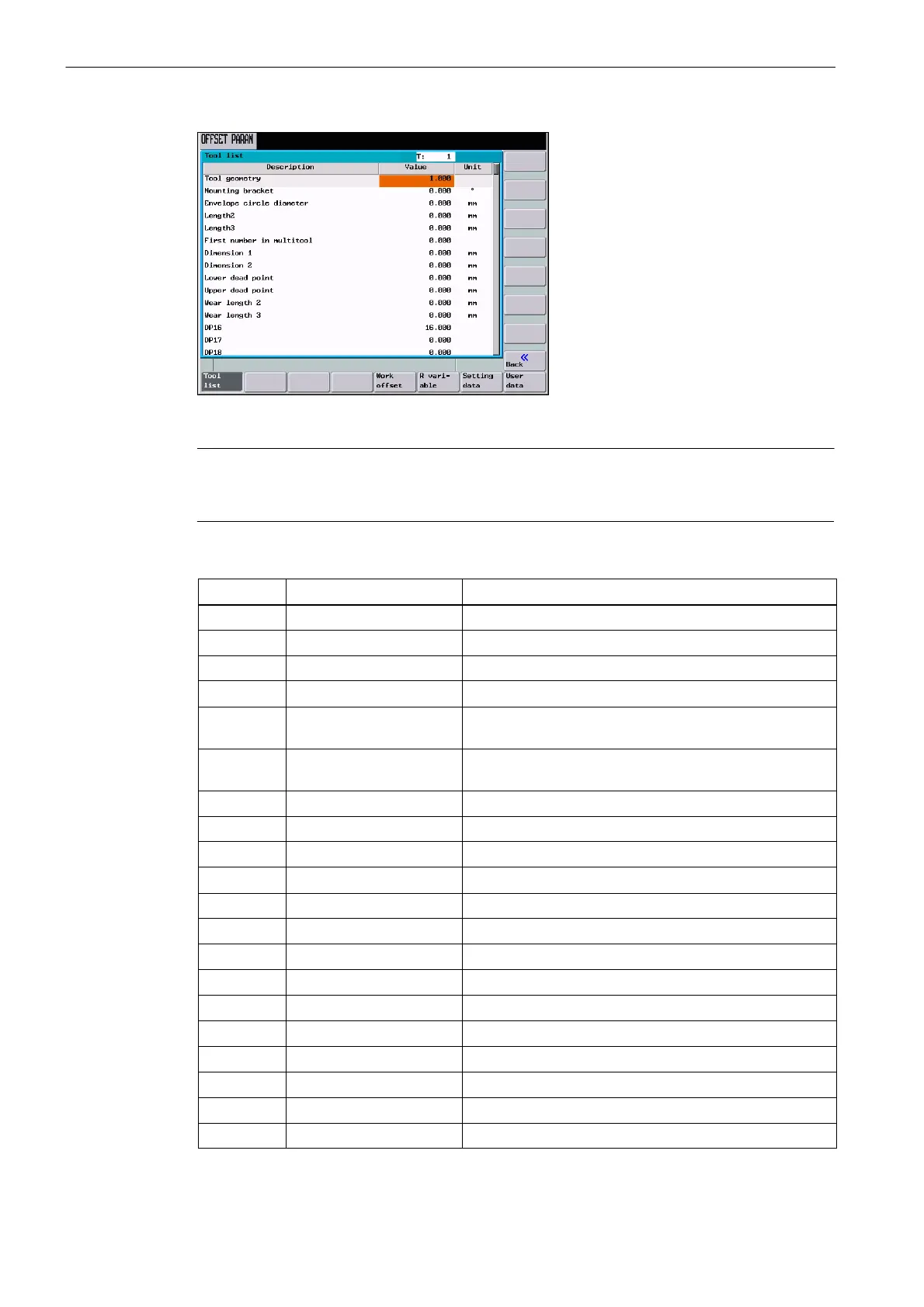

Fig. 3-3 Parameter list for a tool (Advanced)
Caution
The specified parameter list uses the parameters for the tool compensation. Therefore, the
G41 and G42 commands must not be used in the NC program.
Table 3-2 Parameter list for nibbling
Parameters
Field Description
DP4 Length 2 Geometry of the Y axis
DP5 Length 3 Geometry of the X axis
DP6 Tool geometry Describes the type of the tool geometry
DP7 First multi-tool number First tool number of the punch on a multi-tool
DP8 Y – Length of the cutting
edge
Length of the A axis cutting edge
DP9 X – Length of the cutting
edge
Length of the X axis cutting edge
DP10 Bottom dead center Bottom dead center of the tool
DP11 Top dead center Top dead center of the tool
DP12 Mounting bracket Angle at which the tool is mounted
DP13 Wear length 2 Y axis wear (fine compensation)
DP14 Wear length 3 X axis wear (fine compensation)
DP16 DP16 Free
DP17 DP17 Free
DP18 DP18 Free
DP19 DP19 Free
DP20 DP20 Free
DP21 Stroke counter Stroke counter
DP22 Base length 2 Base length 2 (adapter), Y axis
DP23 Base length 3 Base length 3 (adapter), X axis
DP24 Envelope diameter Diameter of the tool in the toolholder
