Siemens TM SIWAREX WP351 HF User Manual

&DEOHJODQG
6VKLHOGVXSSRUWHOHPHQW
-XQFWLRQER[
6LJQDOFDEOH
(OHFWURQLF:HLJKLQJ6\VWHP
/RDGFHOO
3$/
%ODFN
*UD\
5HG
%OXH
*UHHQ
:KLWH
SIGNAL-
EXC-
SENSE-
SHIELD
EXC+
SENSE+
SIGNAL+
SIGNAL+
SENSE+
EXC+
SIGNAL-
SENSE-
EXC-

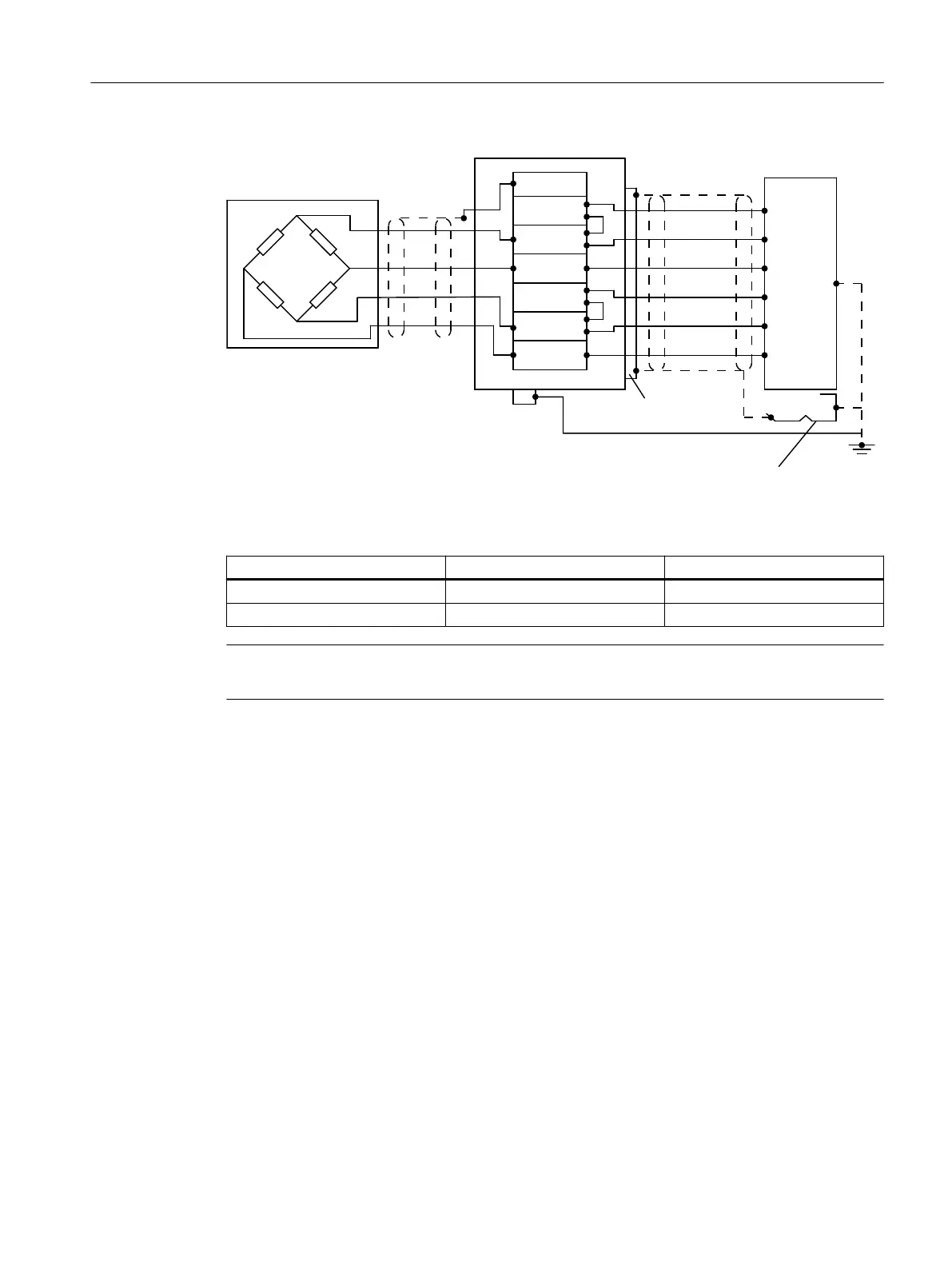

Figure 4-3 Cable shield of the signal cable connected to shield terminal
The following wire jumpers are set by default:
Wire jumper From terminal To terminal
1 EXC- SENSE-
2 EXC+ SENSE+
Note
If the wire jumpers are missing, the electronic weighing system reports a wire break.
Connecting
4.3 Connection of analog load cells
Technology module TM SIWAREX WP351 HF
Operating Instructions, 01/2020, A5E47521010-AA 29
